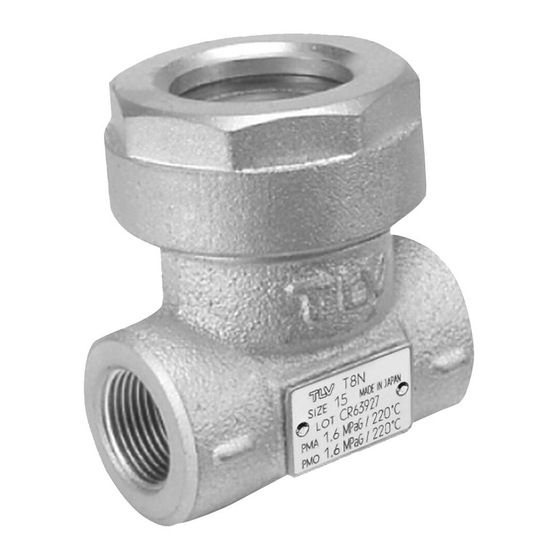

- Page 1 172-65118MA-04 (T8N/TF8N/T10N/TF10N) 6 October 2021 Sight Glass T8N/TF8N/T10N/TF10N (Optional Models) T8NL/TF8NL/T10NL/TF10NL Copyright © 2021 by TLV CO., LTD. All rights reserved...
-
Page 2: Table Of Contents
If detailed instructions for special order specifications or options not contained in this manual are required, please contact TLV for full details. This instruction manual is intended for use with the model(s) listed on the front cover. -
Page 3: Safety Considerations
The three types of cautionary items above are very important for safety: be sure to observe all of them as they relate to installation, use, maintenance, and repair. Furthermore, TLV accepts no responsibility for any accidents or damage occurring as a result of failure to observe these precautions. - Page 4 Use only under conditions in which no water hammer will occur. The impact of water hammer may damage the product, leading to fluid discharge, which may cause burns or other injury. 172-65118MA-04 (T8N/TF8N/T10N/TF10N) 6 Oct 2021...
-
Page 5: Checking The Piping
* Maximum allowable pressure (PMA) and maximum allowable temperature (TMA) are PRESSURE SHELL DESIGN CONDITIONS, NOT OPERATING CONDITIONS. ** Valve No. is displayed for products with options. This item is omitted from the nameplate when there are no options. 172-65118MA-04 (T8N/TF8N/T10N/TF10N) 6 Oct 2021... -
Page 6: Configuration
R: Part included in repair kit; parts not available separately NOTE: Construction of the T10N/TF10N/T10NL/TF10NL differs from that of the T8N/TF8N/T8NL/TF8NL only in that there is a through-hole in the partition between the inlet and outlet, making them suitable for use with large flow rates. -
Page 7: Maintenance
Procedure Gaskets: Check for warping or damage Glass: Check for fractures or cracks Guard Plate: Check for fractures or cracks Ball: Check for deformation 172-65118MA-04 (T8N/TF8N/T10N/TF10N) 6 Oct 2021... -
Page 8: Disassembly/Reassembly
(Optional Models: T8NL/TF8NL/T10NL/TF10NL) (1 Nm 10 kgcm) NOTE: -Coat all threaded portions with anti-seize. -If drawings or other special documentation were supplied for the product, any torque given there takes precedence over values shown here. 172-65118MA-04 (T8N/TF8N/T10N/TF10N) 6 Oct 2021... - Page 9 Exploded View Glass Holder Gasket Sight Glass Guard Plate Gasket Ball Body 172-65118MA-04 (T8N/TF8N/T10N/TF10N) 6 Oct 2021...
-
Page 10: Troubleshooting
* For the T10N/TF10N/T10NL/TF10NL, when the condensate load is low, the ball does not move NOTE: When replacing parts with new, use the parts list for reference, and replace with parts from the repair kit. Please note that replacement parts are only available as part of the repair kit. 172-65118MA-04 (T8N/TF8N/T10N/TF10N) 6 Oct 2021... -
Page 11: Tlv Express Limited Warranty
Subject to the limitations set forth below, TLV CO., LTD., a Japanese corporation (“TLV”), warrants that products which are sold by it, TLV International Inc. (“TII”) or one of its group companies excluding TLV Corporation (a corporation of the United States of America), (hereinafter the “Products”) are designed and manufactured by... - Page 12 WARRANTY NOT NEGATED HEREBY, AND ANY IMPLIED WARRANTY NOT NEGATED HEREBY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, DO NOT COVER, AND NEITHER TLV, TII NOR ITS TLV GROUP COMPANIES WILL IN ANY EVENT BE LIABLE FOR, INCIDENTAL OR...
-
Page 13: Service
Service For Service or Technical Assistance: Contact your TLV representative or your regional TLV office. In Europe: Tel: [49]-(0)7263-9150-0 Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany Fax: [49]-(0)7263-9150-50 Tel: [44]-(0)1242-227223 Units 7 & 8, Furlong Business Park, Bishops Cleeve, Gloucestershire GL52 8TW, U.K.
