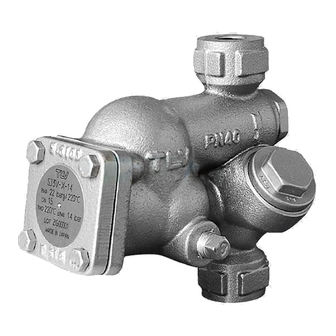

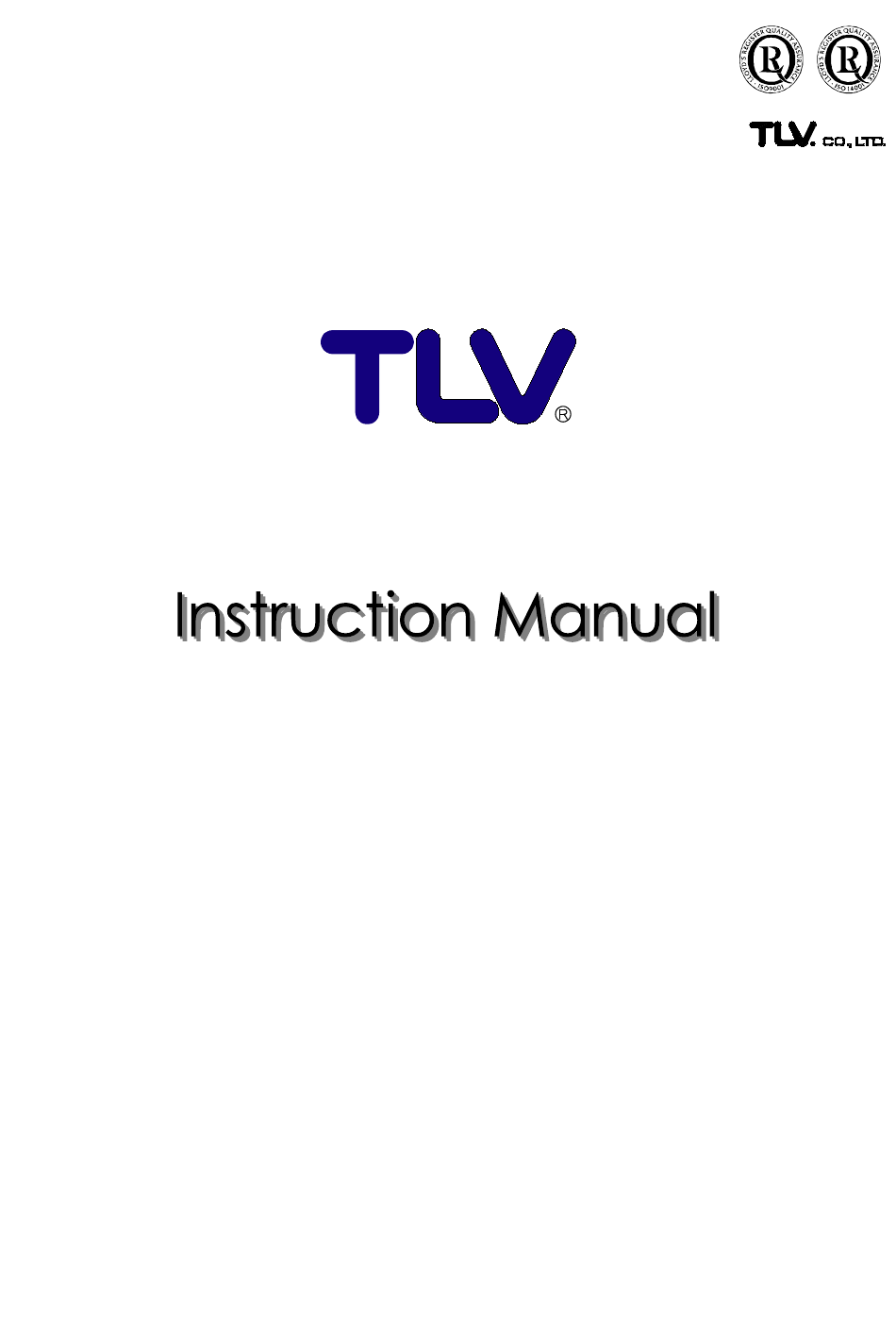

- Page 1 172-65633MA-00 (SJ3V-X) 22 April 2016 ISO 9001/ ISO 14001 Manufacturer Kakogawa, Japan is approved by LRQA LTD. to ISO 9001/14001 Free Float Steam Trap with X-element SJ3V-X Copyright © 2016 by TLV CO., LTD. All rights reserved...
-
Page 2: Table Of Contents
This instruction manual is intended for use with the model(s) listed on the front cover. It is necessary not only for installation but for subsequent maintenance, disassembly/reassembly and troubleshooting. Please keep it in a safe place for future reference. 172-65633MA-00 (SJ3V-X) 22 Apr 2016... -
Page 3: Safety Considerations
• The three types of cautionary items above are very important for safety: be sure to observe all of them as they relate to installation, use, maintenance, and repair. Furthermore, TLV accepts no responsibility for any accidents or damage occurring as a result of failure to observe these precautions. - Page 4 Use only under conditions in which no water hammer will occur. The impact of water hammer may damage the product, leading to fluid discharge, which may cause burns or other injury. 172-65633MA-00 (SJ3V-X) 22 Apr 2016...
-
Page 5: Checking The Piping
4. Have maintenance valves been installed at the inlet and outlet? If the outlet is subject to back pressure, has a check valve (TLV-CK) been installed? 5. Is the inlet pipe as short as possible, with as few bends as possible, and installed so the liquid will flow naturally down into the trap? 6. -
Page 6: Specifications
Cover Gasket 18 Spring Clip Cover Bolt 19 X-element Cover 10 Drain Plug *Replacement parts are available only in the following kits: M = maintenance kit, R = repair kit, F = float 172-65633MA-00 (SJ3V-X) 22 Apr 2016... -
Page 7: Installation
If there is a problem, determine the cause using the “Troubleshooting” section in this manual. Tolerance Angle for Installation - 5° Make sure the trap is installed with the raised lettering on the body horizontal. 172-65633MA-00 (SJ3V-X) 22 Apr 2016... -
Page 8: Maintenance
(When conducting a visual inspection, flash steam is sometimes mistaken for steam leakage. For this reason, the use of a steam trap diagnostic instrument – such as TLV TrapMan – in conjunction with the visual inspection is highly recommended.) -
Page 9: Disassembly/Reassembly
X-element Remove without bending Fix with the air vent valve Guide seat and make sure the X-element can be inserted smoothly Air Vent Screen Remove without bending Insert without bending 172-65633MA-00 (SJ3V-X) 22 Apr 2016... - Page 10 Screen Holder Screen Holder Gasket Main Screen X-element Cover Body X-element Cover Gasket Air Vent Screen Spring Clip X-element Orifice Gasket Air Vent Valve Seat X-element Guide Orifice Float Cover Gasket Drain Plug Cover Cover Bolt 172-65633MA-00 (SJ3V-X) 22 Apr 2016...
-
Page 11: Instructions For Plug/Holder Disassembly And Reassembly
Instructions for Plug/Holder Disassembly and Reassembly The seal on the threaded plugs/holders found on TLV products is formed by a flat metal gasket. There are various installation orientations for the gaskets, such as horizontal, diagonal and downward, and the gasket may be pinched in the thread recesses during assembly. -
Page 12: Troubleshooting
NOTE: When replacing parts with new, use the parts list for reference, and replace with parts from the Maintenance kit, Repair kit, etc. Please note that replacement parts are only available as part of a replacement parts kit. 172-65633MA-00 (SJ3V-X) 22 Apr 2016... -
Page 13: Product Warranty
One year following product delivery. 2. Warranty Coverage TLV CO., LTD. warrants this product to the original purchaser to be free from defective materials and workmanship. Under this warranty, the product will be repaired or replaced at our option, without charge for parts or labor.
