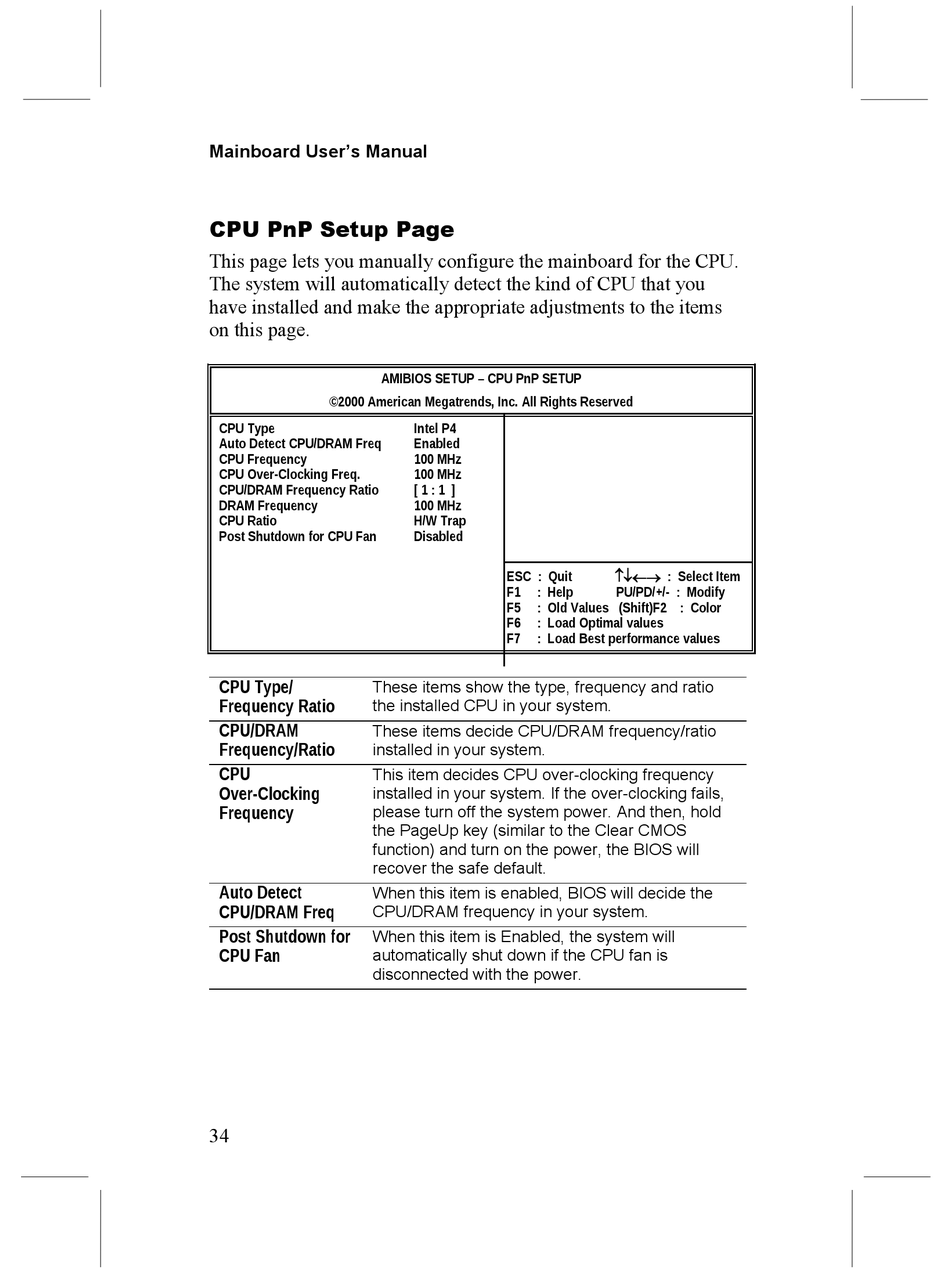

CPU PnP Setup Page

This page lets you manually configure the mainboard for the CPU.
The system will automatically detect the kind of CPU that you
have installed and make the appropriate adjustments to the items
on this page.
AMIBIOS SETUP – CPU PnP SETUP
©2000 American Megatrends, Inc. All Rights Reserved
CPU Type
Auto Detect CPU/DRAM Freq
CPU Frequency
CPU Over-Clocking Freq.
CPU/DRAM Frequency Ratio
DRAM Frequency
CPU Ratio
Post Shutdown for CPU Fan
CPU Type/
These items show the type, frequency and ratio
Frequency Ratio
the installed CPU in your system.
CPU/DRAM
These items decide CPU/DRAM frequency/ratio
Frequency/Ratio
installed in your system.
CPU
This item decides CPU over-clocking frequency
Over-Clocking
installed in your system. If the over-clocking fails,
Frequency please turn off the system power. And then, hold
the PageUp key (similar to the Clear CMOS
function) and turn on the power, the BIOS will
recover the safe default.
Auto Detect
When this item is enabled, BIOS will decide the
CPU/DRAM Freq
CPU/DRAM frequency in your system.
Post Shutdown for
When this item is Enabled, the system will
CPU Fan
automatically shut down if the CPU fan is
disconnected with the power.
34
Intel P4
Enabled
100 MHz
100 MHz
[ 1 : 1 ]
100 MHz
H/W Trap
Disabled
ESC : Quit
F1 : Help
F5 : Old Values (Shift)F2 : Color
F6 : Load Optimal values
F7 : Load Best performance values
 : Select Item
PU/PD/+/- : Modify
