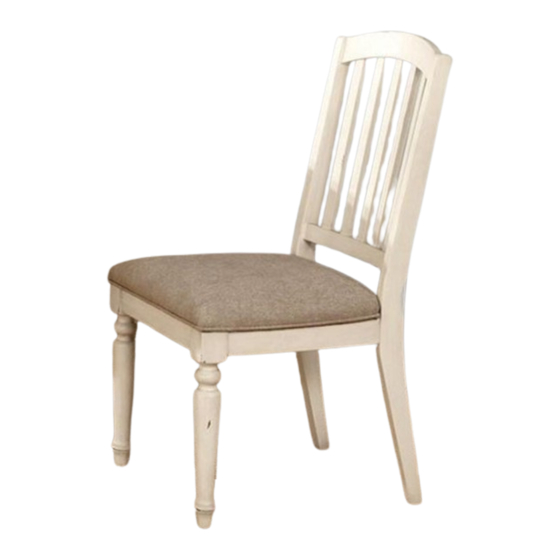

Furniture of America Summer CM3753SC-2PK Assembly Instructions

Download this manual

For more information contact our team: service.ec@foagroup.com

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

EASY

Assembly Instructions

CM3753SC-2PK

DIFFICULT

Tools Required For Assembly:

Allen Wrench

Wrench

2 PERSONS RECOMMENDED

Page 1 of 5

(Included)

Rev: 18-08- 10

Need help?

Do you have a question about the Summer CM3753SC-2PK and is the answer not in the manual?

Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM3753SC-2PK ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench (Included) assembling a specific product (with 1 being easy and 5 being difficult).
Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 5...
Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 1pc x 2 #A x 1pc x 2 Bolt Ø5/16" x 1-1/2" Chair Back #2 x 1pc x 2 #B x 4pcs x 2 Cushion Seat...
Page 4 Align seat (#2) to the chair back (#1), then secure middle hole of the seat (#2) to chair back (#1) by using bolt (#A) with washers (#C,D). #A x 1pc #C x 1pc #D x 1pc #B x 4pcs #C x 4pcs #D x 4pcs Secure corner holes of the seat (#2) to chair back (#1) by using bolts (#B) with washers (#C,D).
Page 5 Align legs (#3) to the seat (#2), then secure by using hex nut (#E) with washers (#C,D). #C x 4pcs #D x 4pcs #E x 4pcs ASSEMBLY IS COMPLETED Page 5 of 5...
