MODEL #
CM3790SC-2PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
2 - Persons
Recommended
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America Burton CM3790SC-2PK
Summary of Contents for Furniture of America Burton CM3790SC-2PK

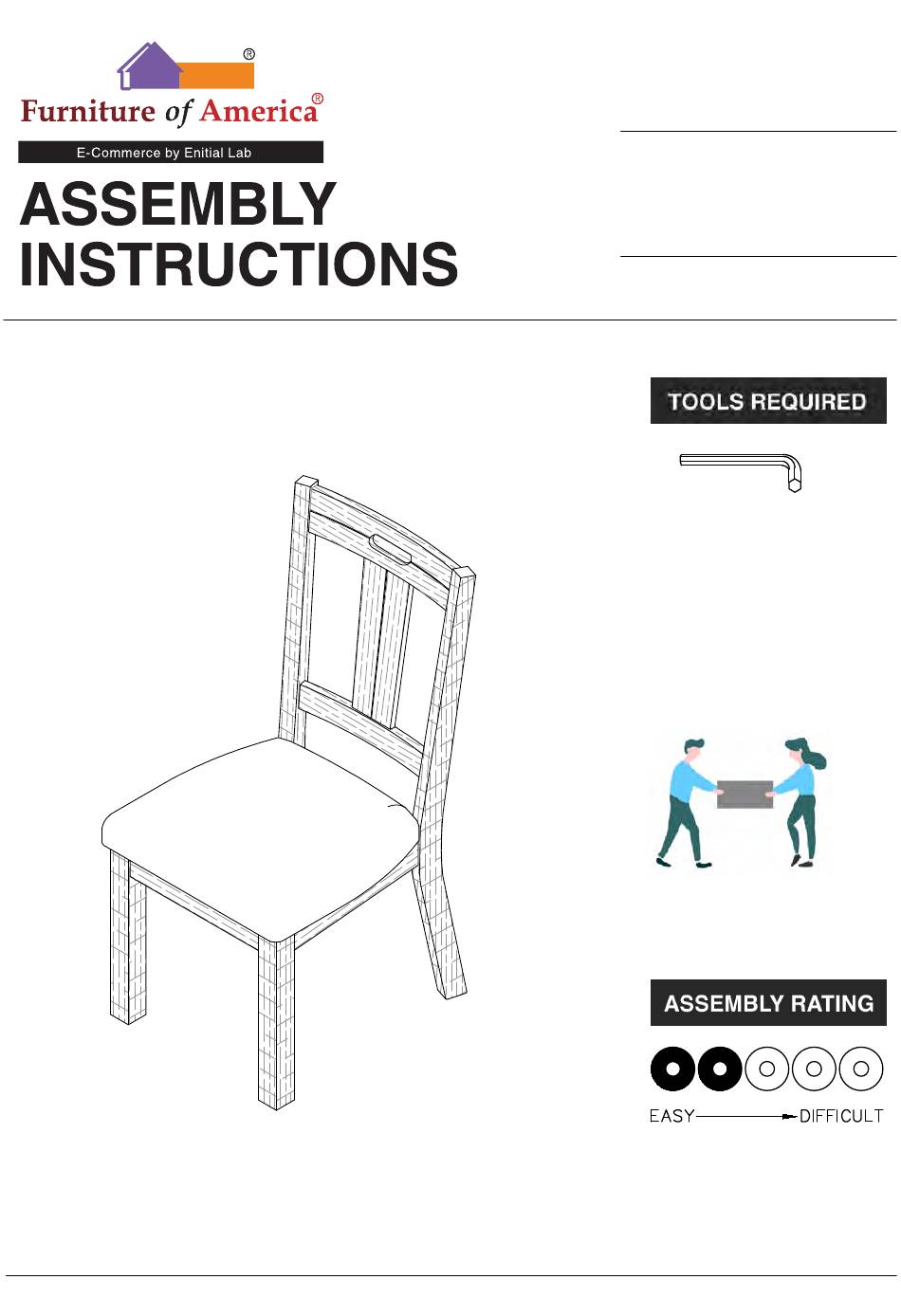

- Page 1 MODEL # CM3790SC-2PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - Persons Recommended The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product. VERSION # 20-02-10 1 / 8...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...
- Page 5 CHAIR CM3790SC-2PK #2 1pc x2 #3 2pcs x2 #1 1pc x2 Front Leg Chair Back Cushion Seat #A 2pcs x2 #B 4pcs x2 #C 4pcs x2 Bolt Ø1/4" x 1-1/2" Bolt Ø1/4" x 2-3/8" Bolt Ø1/4" x 3" #D 10pcs x2 #E 10pcs x2 #F 1pc x2 Allen Wrench 4mm...
-
Page 6: Exploded View
Exploded View 6 / 8... - Page 7 ASSEMBLY INSTRUCTIONS Align seat (#2) to chair back (#1), then secure by using bolts (#A) with washers (#D,E). Part #1 x 1pc Part #2 x 1pc Hardware #A x 2pcs Hardware #D x 2pcs Hardware #E x 2pcs Wood Tenon Secure corner holes of the seat (#2) to chair back (#1) by using bolts (#C) with washers Hardware...
- Page 8 ASSEMBLY INSTRUCTIONS Align front legs (#3) to the seat, then secure by using bolts (#B) with washers (#D,E). Part #3 x 2pcs Hardware #B x 4pcs Hardware #D x 4pcs Hardware #E x 4pcs 8 / 8...
