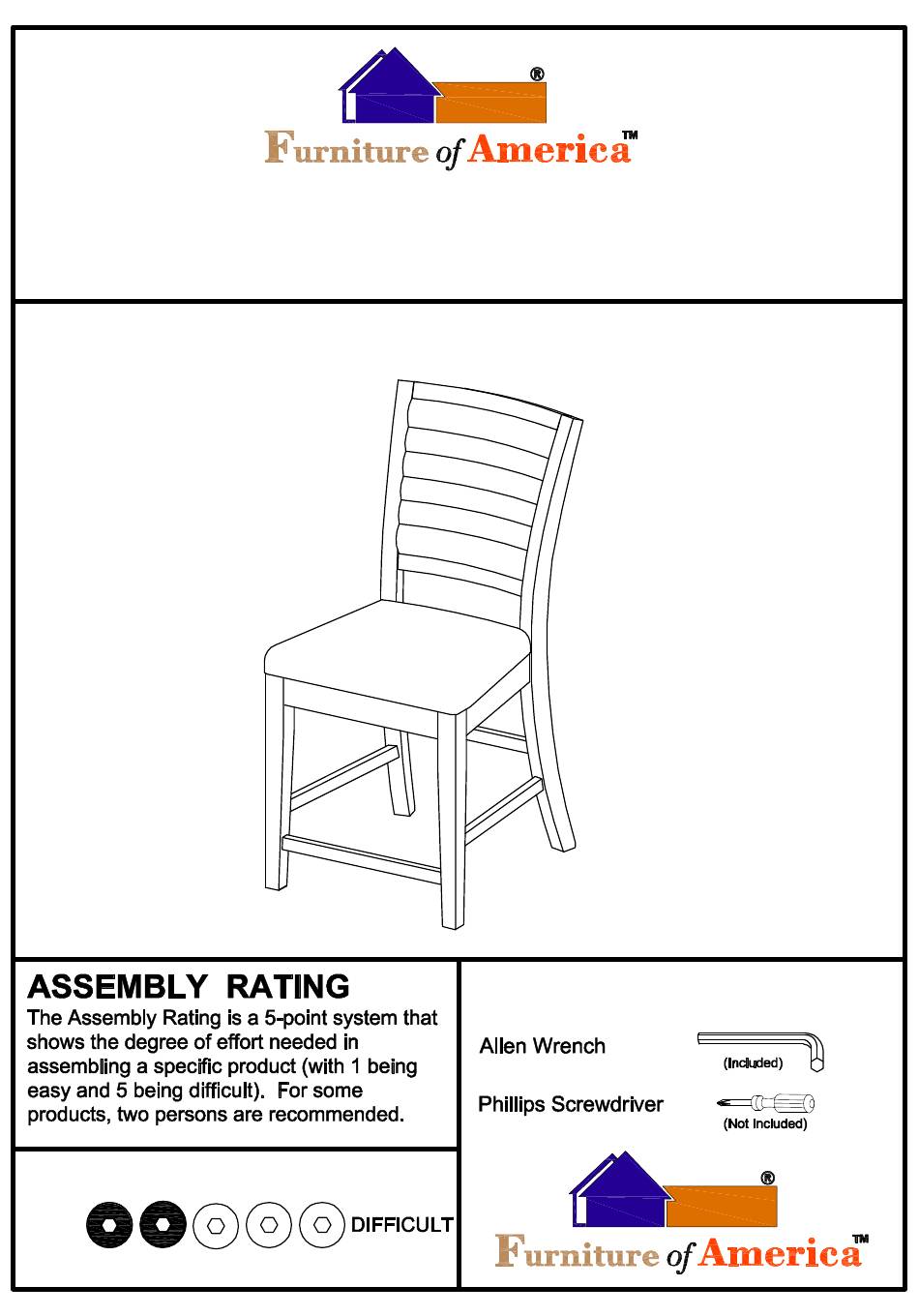

- Page 1 Assembly Instructions CM3751PC-2PK Tools Required For Assembly: EASY Page 1 of 5 Rev: 15-01- 30...
- Page 2 Page 2 of 5...
- Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. Backrest W/Legs Bolt (5/16" x 3-1/4"L) Bolt (5/16" x 2-1/4"L) Seat Bolt (5/16" x 1-1/2"L) Allen Allen M5 Page 3 of 5...
- Page 4 I. Place the backrest with legs (#1) on a protected surface. Align the seat (#2) with the pre-drilled holes of the backrest with legs (#1). II. Prepare a bolt assembly by inserting FIRST the lock washer (#E) onto the bolt (#C) and then the flat washer (#D) onto the SAME bolt (#C), in that order.
- Page 5 I. Prepare 4 bolt assemblies by inserting FIRST the lock washer (#E) onto the bolt (#B) and then the flat washer (#D) onto the SAME bolt (#B), in that order. II. Insert the bolt assemblies through the pre-drilled holes in the corners of the seat (#2) and secure those bolts using the Allen wrench (#F) to lock them...
