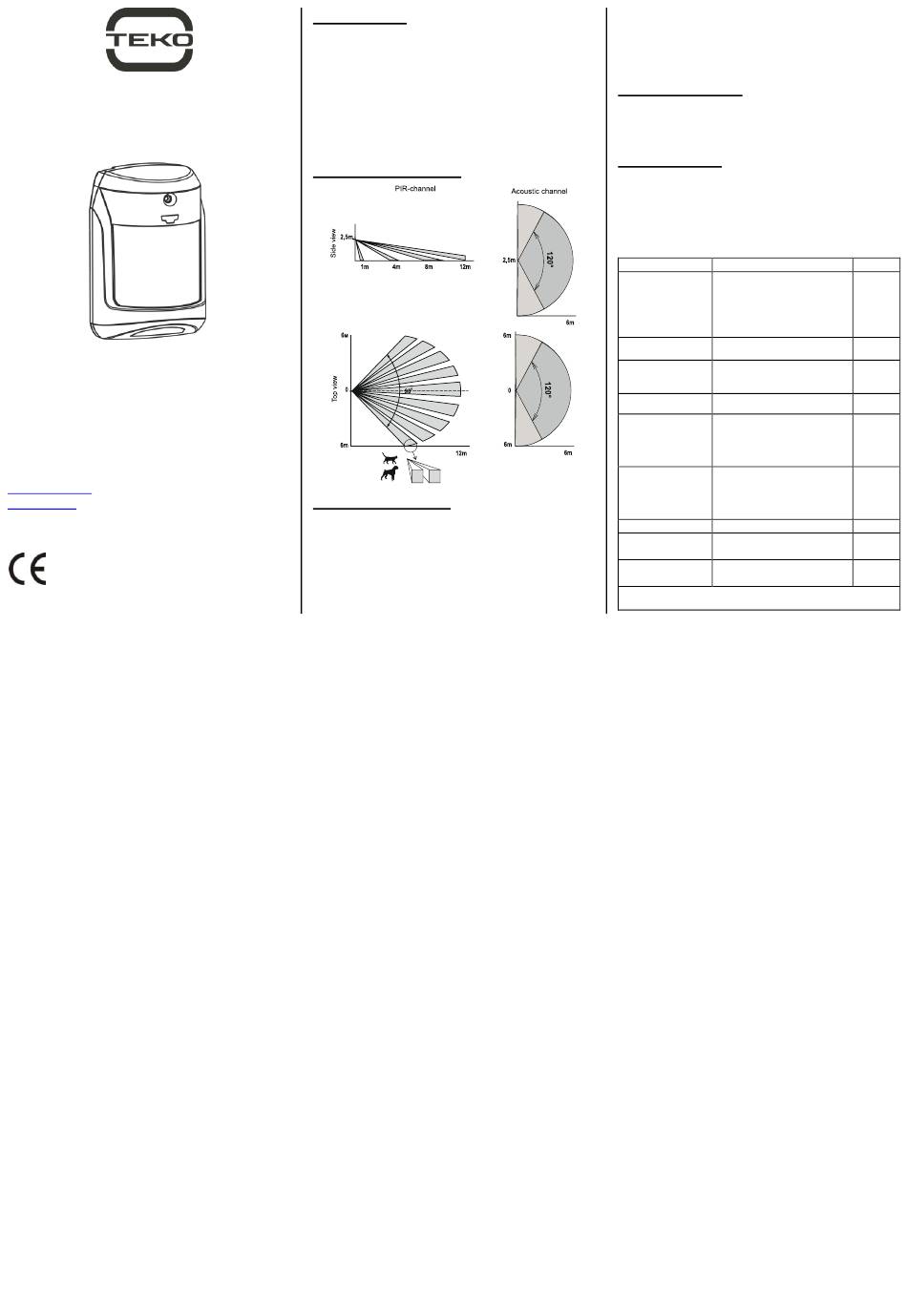

teko Astra-621 RF User Manual

Astra-621ver. RF

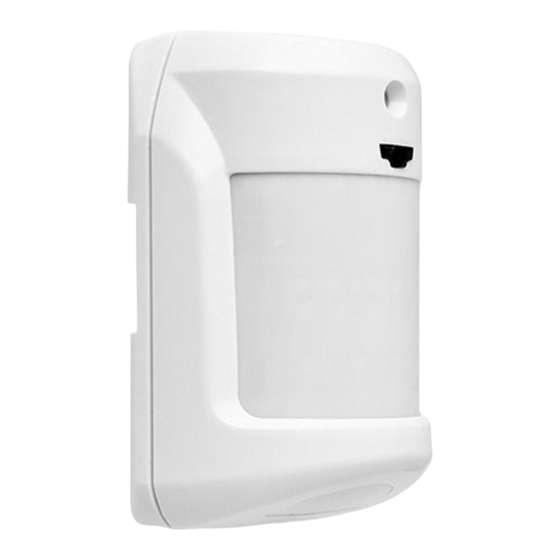

Wireless dual type detector
(PIR+Acoustic)
User guide
Manufacturer:
ZAO NTC TEKO
420108, Russia, Kazan,
Gafuri str., 71
Tel.:+7(843) 528-03-69
export@teko.biz
www.teko.biz
Made in Russia
rev. 621rk-v1_2_instr_en
1 FUNCTION
The detector is designed to detect intrusion into
protected space and/or glass breaking of the
glazed structures, generate an alarm notifica-
tion and transmit the notification via radio to the
radio receiver.
The detector is insensitive to pets up to 20 kg
weight.
2 DETECTION ZONE
3 SPECIFICATIONS
2 range of acoustic operation frequencies:
- first (high), kHz .................................. 6.0 ± 0.1
- second (low), Hz ................................ 150 ± 10
Wireless coverage range (line-of-sight), m ... 300
Supply voltage, V ................................ 2.2 to 3.0
Overall dimensions, mm ..................... 92×64×45
Operation conditions
Temperature range, °С.................... - 20 to + 55
Relative air humidity, % ....... up to 98 at + 25°С
without moisture condensa-
4 DELIVERY SET
Set includes: mounting parts (dowel - 2 pcs.,
screw - 2 pcs.), battery CR123A 3V (installed) –
1 pc., bracket – 1 pc., user guide – 1 copy.
5 INDICATION
Notification indication turns off 60 min. later
(except for the "Power failure" notification) after
the installation of the battery. Re-enabling the
indication - when installing the battery or upon
receiving any command from the laser tool
Astra-942.
Notification LED
Lights up for a peri-
od of 1 to 20 sec,
Boot time then flashes 1 time
in 2 sec (no more
than 60 sec)
Norm Off
Acoustic
Lights up for 2 sec
alarm
PIR-alarm
Lights up for 1 sec
1x flashes with a
Low freq. period of
interference when exposed
interference
2x flashes
Hi freq. inter- with a period of 0.6
ference sec when exposed
to interference
Tampering Off
Tampering
Off
recovered
Power failure 3x flashes with a
period of 25 sec
'+' – notification issued,
'-' – notification not issued
tion
CP
-
+
+
+
-
0.6 ec
to
-
+
+
+
