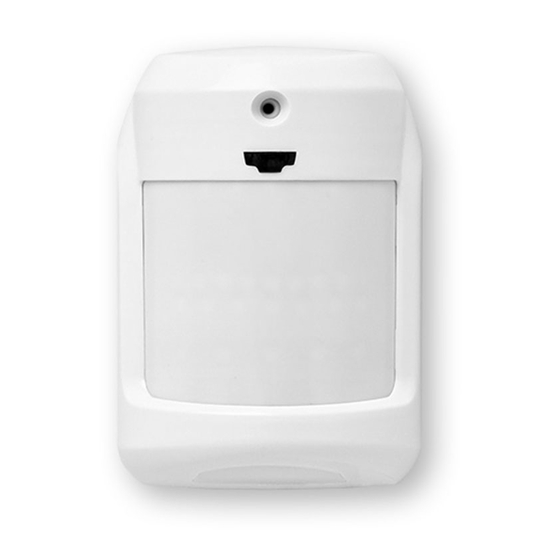

Astra-621
Motion + Glass break
detector
User guide
Manufacturer:
ZAO NTC TEKO
420108 Kazan, Russia
Gafuri 71
+7843 528-03-69
export@teko.biz
www.teko.biz
Made in Russia
rev. 621-v2_2_instr_en
1 FUNCTION
The detector is intended for detection of
unauthorized access into an enclosed area,
detection
of
glass
breaking
constructions
of
an
enclosed
generation of an alarm notification by opening
contacts of dedicated alarm relay
2 DETECTION ZONES
3 SPECIFICATIONS
Detectable moving speed, m/sec ............ 0.3 to 3.0
Supply voltage, V ........................................ 9 to 15
Current consumption, mA ................................... 15
Overall dimensions, mm ......................... 92×64×45
Operation conditions
Temperatures, °С ................................. - 20 to + 55
Relative air humidity, % ................. up to 98 at + 25 °С
without moisture condensation
4 DELIVERY SET
Bracket – 1 pc., dowel - 2 pcs., screw - 2 pcs., label –
2 pcs.
of
glazed
area
and
5 INFORMATIVITY
In the factory setting, indication of notifications
.
Alarm, Power failure is enabled permanently, indi-
cation of other notifications is enabled for 24 hours
after the detector is powered on.
Alarm mode of notifications is changed by closing
the contact Ind after the detector enters the
standby mode, for which close the contact Ind for
at least 10 sec. until the indicator turns on:
- 1x flash - indication is allowed,
- 2x flash – indication disabled (Alarm notifications
are disabled immediately after changing the mode,
notifications are generated only by opening the
alarm relay of the detector).
ATTENTION! When the detector's power supply
is reset, the factory setting of the indication
mode is automatically restored.
Notification
Boot time
Norm
PIR-Alarm
GB-Alarm
PIR + GB
Alarm
Relay
Indication
PIR
GB
Flashes 1 time per
1 sec after power
Up to
Up to
on. Duration up to
60 sec
60 sec
60 sec
Off
Movement
in
the
detection
for
zone
4 sec
Glass break-
ing
in
the
for
detection
4 sec
zone
Movement
for
for
and
glass
4 sec
4 sec
