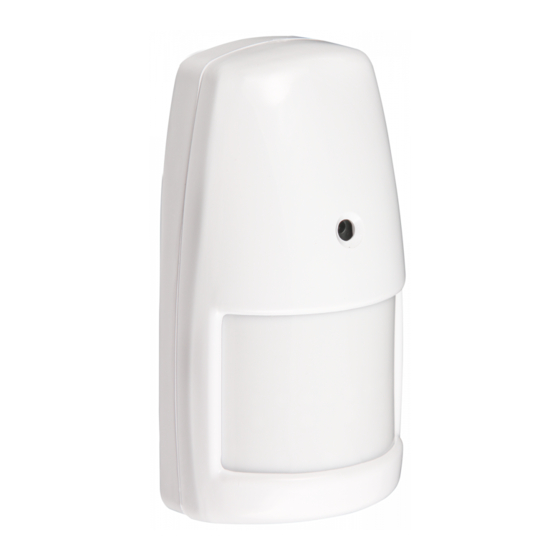

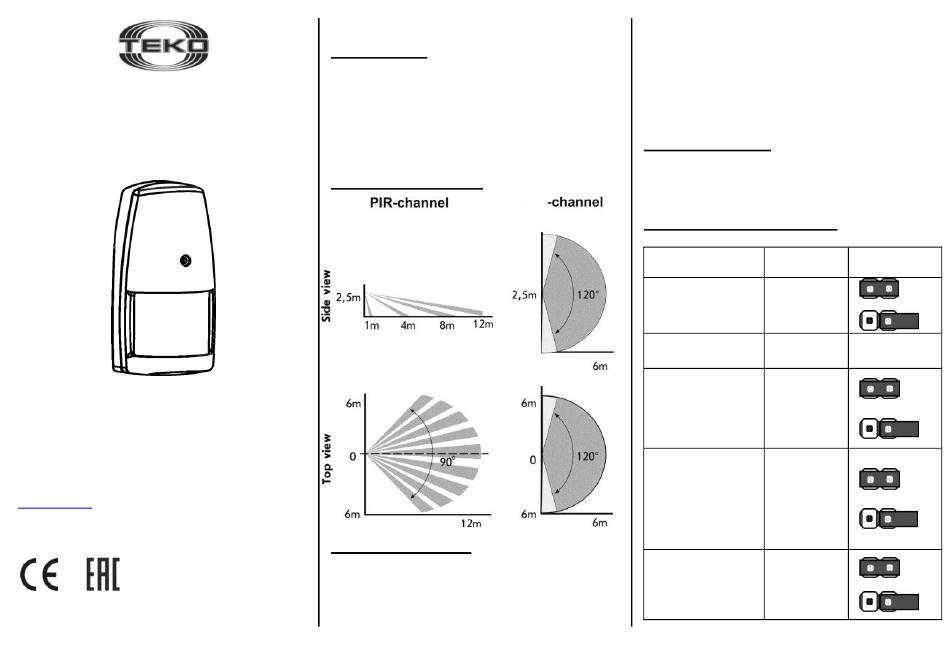

Astra-621
PIR Motion
+ Acoustic Glass Break
detector
User Guide
Manufacturer:
TEKO-TD
420138 Kazan, Russia
Prospekt Pobedy str. 19
+7(843) 528-03-69
export@teko.biz
Made in Russia
Rev. 621-v1_6_instr_EN
1 FUNCTION
The detector is intended for detection of
unauthorized access into an enclosed area,
detection
of
glass
breaking
constructions
of
an
enclosed
generation of an alarm notification by opening
contacts of dedicated alarm relay
2 DETECTION ZONE
3 SPECIFICATIONS
Range of detected
moving speed, m/s
................. from 0,3 up to 3,0
Power supply voltage, V ............. from 8 up to 15
Current consumption, mA, max ......................15
Overall dimensions, mm ...............110 × 60 × 45
Operating Conditions
Temperature range, °С........ from - 20 up to +50
Relative air humidity, % .......... up to 95 at +35 °С
of
glazed
area
and
4 DELIVERY SET
.
Delivery set includes: dowel – 2 pcs., screw – 2
pcs., user guide – 1 pcs.
GB
5 MODES OF OPERATION
Indication ON
Indication OFF
GB-channel
TEST
High sensitivity
of GB-channel
Normal sensitivi-
ty of GB-channel
High
detectability of
PIR channel
Normal
detectability of
PIR channel
"Alarm memory"
ON
"Alarm memory"
OFF
Without moisture condensation
Plug
Jumper
name
position
Ind
Tst
See sec. 9
GB
PIR
Mem
