Summary of Contents for Kellfri 23-TV06PRO

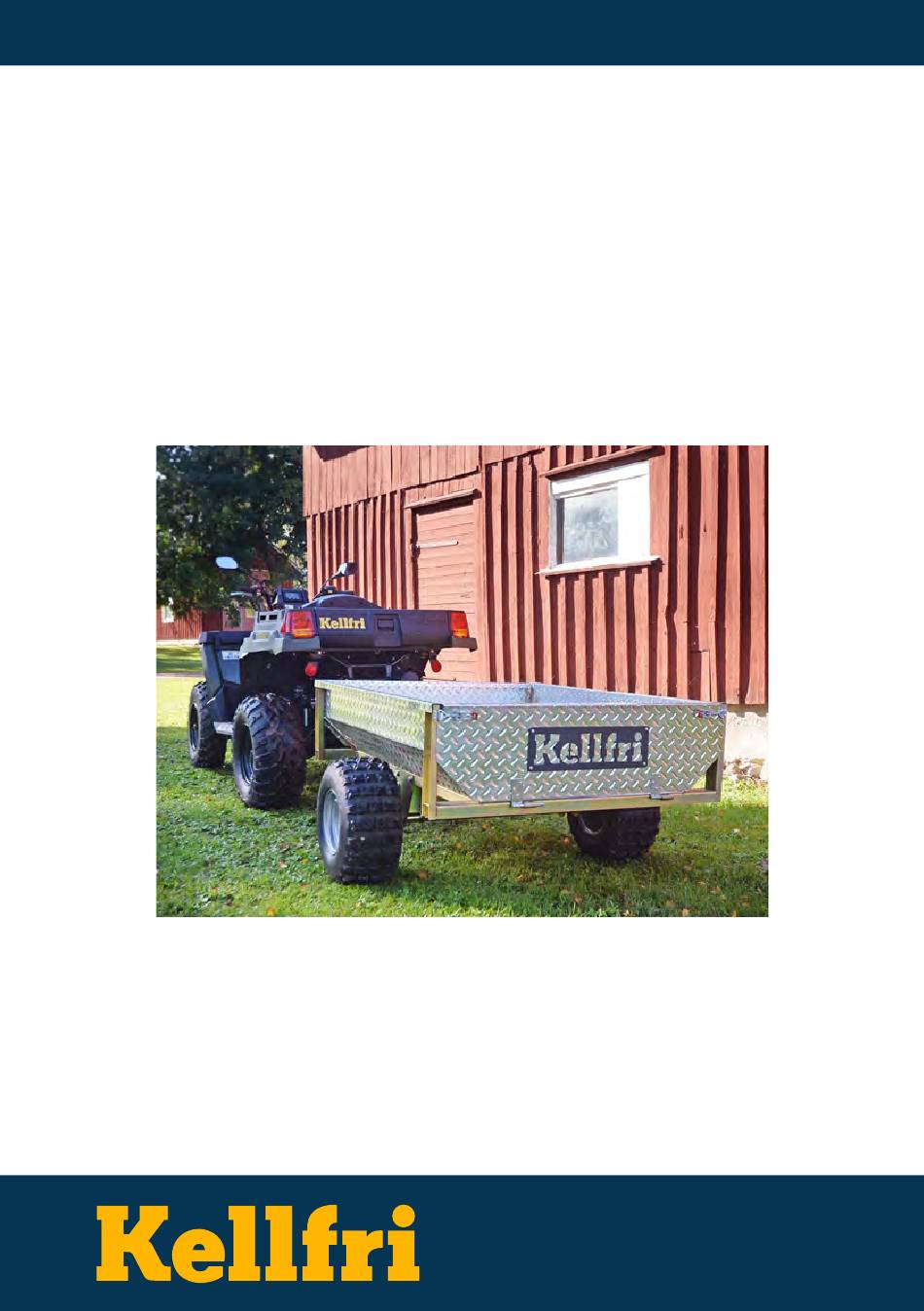

- Page 1 23-TV06PRO TIPPING TRAILER Read the operating instructions carefully before using the product! Operating instructions translated from Swedish...
-
Page 2: Table Of Contents
Deviation from Warranty terms and conditions Kellfri designs and supplies efficient, affordable machinery and components for forestry, agriculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. We recommend that you always read and follow the safety instructions and the instructions in the machine’s operating manual. -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. Compliance with the safety instructions, operating manual and sound common sense will guarantee many years of enjoyment using the product. Kellfri’s equipment and products are aimed at self-employed farmers, horse enthusiasts and other country-dwellers who have stringent performance demands. -
Page 4: Safety Instructions
If the safety instructions or the operating manual are damaged, or become unusable for any other reason, new copies may be ordered from: Kellfri AB, Munkatorpsgatan 6, SE-532 37 SKARA, Sweden. Tel.: +46 511 242 50 The safety instructions can also be downloaded from Kellfri’s website: www.kellfri.co.uk... -
Page 5: Surroundings
SURROUNDINGS Check that the work area is free from bystanders and objects before hitching or using the equipment. Otherwise, there is a risk of serious injury. Be extra careful if there are children in the vicinity of the area where the equipment or product is used or stored. Check that there are no low-hanging electrical cables within the work area. -
Page 6: Use
Only those who understand the safety instructions and the operating manual may use the equipment or product. Exercise caution and care when working with the equipment or product and only use it in the way described in the instruction manual. There is a risk of crushing when working with equipment that has moving parts. -
Page 7: Maintenance And Service
Contact your local authority for further information. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice. -
Page 8: Tipping Trailers
TIPPING TRAILERS • Carefully read the trailer's operating manual before using the machine. • Always check that the performance of the machine combination to be used with the trailer guarantees safety and functionality. If cracks, twists, play or fatigue are detected, discontinue use and rectify the fault. -
Page 9: Load The Trailer Correctly
LOAD THE TRAILER CORRECTLY! Table of contents... -
Page 10: Warning Decals
WARNING DECALS Make sure warning decals are always visible and clean them when necessary. Do not use a high-pressure washer directly on the warning label. If a label becomes worn or in any other way unusable, order a new set of labels. An SMV sign must be visible and mounted when travelling on public roads. -
Page 11: Parts 23-Tv06Pro
PARTS 23-TV06PRO 2 Wheels 1 Floor 1 Wheel axle 1 Tow bar 1 Ball coupling 4 x M12 x 90 8 Wheel nuts Ø16 Ø18 1 x L65 mm 2 x L80 mm 2 x M10x70 2 Split pins 1 x R-pin... -
Page 12: Assembly 23-Tv06Pro
ASSEMBLY 23-TV06PRO Turn the floor so that the underside faces upwards. A pair of longer pieces of wood can be placed underneath, for example, to protect the surface from scratches. Place the wheel axle in the middle of the floor. - Page 13 Lock the tow bar with Ø16 L65 mm and the R-pin Fit the wheels. 4 wheel nuts per wheel. Turn the tipping trailer to stand on the wheels. Get help from a friend or use a lifting device. Mount the ball coupling with 2 x M10x70. Table of contents...
- Page 14 Front flap The pin prevents the floor from tipping backwards while driving. Remove the pin to make it possible to tip the floor, when unloading and loading. Front and rear flaps are equipped with floor locks and hinges. This makes it possible to lift off the flaps if desired. Rear flap Table of contents...
-
Page 15: Extension Side 23-Tv60Flpro
EXTENSION SIDE Options for tipping trailer, part number: 23-TV06FLPRO PARTS M8x20 Short side Long side 4 pcs 6 pcs 2 pcs 2 pcs ASSEMBLY Table of contents... - Page 16 Floor lock to attach the short sides in the long sides. Adjustable the U-bolt to get the right length and good locking. M8x20 Prior to mounting the long sides, you need to drill holes in the trailer to be able to screw in the bolts.
- Page 17 A protective plug is fitted at the top of each corner. 530 mm 980 mm 1320 mm The trailer holds 0.3 m³ The trailer + flaps, hold 1.0 m³ IMPORTANT! Always load by weight not by volume! Max. load 500 kg Table of contents...
-
Page 18: Notes
Table of contents... -
Page 19: Deviation From
DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied. -
Page 20: Warranty Terms And Conditions
You are always welcome to give feedback or ask us about our equipment and products. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice.
