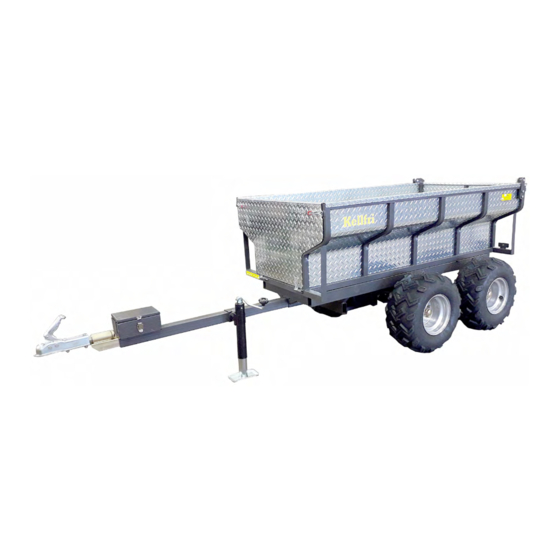

- Page 1 23-TV10H TIPPING TRAILER ATV WITH ELECTROHYDRAULIC TIPPER Read the operating instructions carefully before using the product! Operating instructions translated from Swedish...
-
Page 2: Table Of Contents
Deviation form Warranty terms and conditions Kellfri designs and supplies efficient, affordable machinery and components for forestry, agriculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. We recommend that you always read and follow the safety instructions and the instructions in the machine’s operating manual. -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. Compliance with the safety instructions, operat- ing manual and sound common sense will guarantee many years of enjoyment using the product. Kellfri’s equipment and products are aimed at self-employed farmers, horse enthusiasts and other country-dwellers who have stringent demands on performance. -
Page 4: Safety Instructions
For the safety of both yourself and others, it may be a good idea to read through the safety instructions every now and then. If the safety instructions or the operating manual are damaged, or become unusable for any other reason, new copies may be ordered from: Kellfri AB, Munkatorpsgatan 6, SE-532 40 SKARA, Sweden. -
Page 5: Surroundings
SURROUNDINGS Check that the work area is free from bystanders and objects before hitching or using the equipment. Otherwise, there is a risk of serious injury. Be extra careful if there are children in the vicinity of the area where the equipment or product is used or stored. Check that there are no low-hanging electrical cables within the work area. -
Page 6: Use
Only those who understand the safety instructions and the operating manual may use the equipment or product. Exercise caution and care when working with the equipment or prod- uct, and only use it as described in the instruction manual. There is a risk of crushing when working with equipment that has moving parts. Exercise cau- tion when working with equipment with hydraulic hoses, as oil under pressure can penetrate the skin. -
Page 7: Maintenance And Service
Do not use your hands to locate leaks. Use a piece of paper or cardboard to search for leaks. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice. -
Page 8: Tipping Trailers
TIPPING TRAILERS • Carefully read the trailer's operating manual before using the machine. • Always check that the performance of the machine combination to be used with the trailer guarantees safe- ty and functionality. If cracks, twists, play or fatigue are detected, discontinue use and rectify the fault. Make sure that the towing vehicle to which the trailer is to be connected is suitable for the purpose •... -
Page 9: Load The Trailer Correctly
LOAD THE TRAILER CORRECTLY! Table of contents... -
Page 10: Warning Decals
WARNING DECALS Make sure warning decals are always visible and clean them when necessary. Do not use a high-pressure washer directly on the warning decal. If apart with a decal is replaced, or the decal becomes worn or in any other way unusable, order a new set of decals. SYMBOL EXPLANATION Read the operating manual! Before carrying out work. -
Page 11: Chemicals
CHEMICALS To maximise the service life of a product/equipment, maintenance - and not least preventive maintenance - is important, and this is largely what greases and oils do. Carefully read the operating manuals for your new products or equipment to ensure correct maintenance and service life and that the warranty remains valid! Lubricating grease First aid measures. -
Page 12: Parts 23-Tv10H
chassis plate protection over tank, screws M6x30 drawbar stabilisers ball coupling, mounting bolts, box electric cable wheel suspension, mounting bolts, wheel nuts floor flap pin, cotter pin Table of contents... -
Page 13: Assembly
ASSEMBLY Remove all packaging and check that all parts are present, see previous page. Due to the weight of the floor and the components, it is recommended that at least two peo- ple work together to assemble it. Be careful when assembling, be aware of the risks it entails and ensure that the parts are stable and cannot overturn or fall down when the trailer is raised. - Page 14 • Turn the chassis around, fill the tank with hydraulic oil, check the oil level. • Fit plate protection above the tank • Fit the drawbar and stabilisers. The storage box for storing electric cables should be fitted together with the ball coupling. Adjust the height of the stabiliser and tighten all bolts. Length: 220 mm Height: 110 mm Width: 150 mm...
- Page 15 • Lift the floor and fit it onto the chassis. WARNING! Risk of crushing! The hydraulic cylinder must be fitted while the floor is raised. WARNING! It is important • that you ensure that the floor cannot drop down! Connect electric cables to a 12V battery in order to start the hydraulics.
- Page 16 • Install rear flap. The hatch seen from the inside of the floor. The figures show black painted brackets. From 2021, brackets are unpainted. • The cables should be kept in the storage box during transportation or storage. Secure the cables on the drawbar with plastic ties or similar so that they do not hang beneath the trailer while driving.
-
Page 17: Exploded Diagrams And Materials List
ITEM NO. DESIGNATION QUANTITY Bolt M10x25 Washer Ø10 Spring washer Ø10 Nut M10 Bolt M10x25 Nut M12 Bolt M10x25 Washer Ø12 Spring washer Ø12 Nut M12 Split pin Ø5 x 50 M8 x 30 bolt Washer Ø8 Table of contents... - Page 18 ITEM NO. DESIGNATION QUANTITY Spring washer Ø8 Nut M8 Wheel nut M12 Pin 18 x 80 Split pin Ø5 x 50 Reflector M6 nut Plug M6 x 15 bolt M6 nut SPARE PART NO. DESIGNATION TV07.008 Wheel, right TV07.009 Wheel, left Table of contents...
- Page 19 ITEM NO. DESIGNATION QUANTITY Chassis Mounting plate - upper Mounting plate - lower Nylock nut M12 Bolt M12*60 Bolt M10*30 Spring washer Ф10 Flat washer Ф10 Nut M12 Bolt M12*50 Bolt M12*90 Bolt M12 Spring washer Ф12 Flat washer Ф12 Table of contents...
- Page 20 ITEM NO. DESIGNATION QUANTITY Bogie Hub nut M12 Shaft Rubber washer Tapered roller bearing 30206 Hub bolt M12*35 Tapered roller bearing 30204 Flat washer Ф18 Hub nut M18-1.5 Hub cap 1-10 Cotter pin Ф3.5*30 Table of contents...
- Page 21 The figures show black painted brackets. From 2021, brackets are unpainted. ITEM NO. DESIGNATION QUANTITY Pivot pin M10 x 60 bolt Washer Ф10 Nut M10 Spring washer Ф10 Bolt M10*30 Bracket Table of contents...
- Page 22 ITEM NO. DESIGNATION QUANTITY Drawbar Bolt M10*90 Bushing Flat washer Ф10 Spring washer Ф10 Nylock nut M10 Table of contents...
- Page 23 ITEM NO. DESIGNATION QUANTITY Ball coupling Tow hitch Grease nipple M6 Coupling 50 mm Bolt M10*70 Flat washer Ф10 Spring washer Ф10 Nylock nut M10 Table of contents...
- Page 24 ITEM NO. DESIGNATION QUANTITY Load bed Headgate Tailgate Floor lock Reflector M6 nut Plug 20*40 Table of contents...
-
Page 25: Technical Specification Hydraulic Cylinder
ITEM NO. DESIGNATION QUANTITY Hydraulic unit 12V Hydraulic cylinder Ф85 * Hydraulic coupling M20-1.5 Hydraulic pipe Hydraulic coupling M16-1.5 Switch with cable 2 m Electric cable * Technical specification hydraulic cylinder Table of contents... -
Page 26: Options: Battery Box
BATTERY BOX OPTIONS: 250 mm 23-TV10HBB BATTERY BOX FOR TIPPING TRAILER Protect the battery by storing it in the battery box. The battery box is mounted onto the trailer's drawbar. Length: 350 mm Height: 250 mm Width: 250 mm Fit the battery box on the trailer’s drawbar. Do not forget to tighten all bolts and check that the box is properly secured. -
Page 27: Options: Stabilisers With Wheels
OPTION: STABILISERS WITH WHEELS 23-TV10HJS STABILISERS WITH WHEELS Stabilisers with wheels for tipping trailer ATV 1420 kg. Min. height: 32 cm Max. height: 61 cm Fit the stabilisers on the trailer’s drawbar. Danger of crushing during assembly! Make sure that the drawbar is secured and no body parts are between the drawbar and the ground. -
Page 28: Options: Extension Sides
OPTIONS: EXTENSION FLAPS 500 mm 23-TV10HFL2 Extension flaps for 23-TV10. As of November 2021, they will be delivered in a galvanised finish. Fitting is the same. 23-TV10HFL EXTENSION FLAPS FOR 23-TV10 Increase the load volume with steel mesh extension flaps. Fitted to the trailer's existing sides by drilling a hole in the flaps and screwing them in place. - Page 29 Secure the short sides with the floor lock. Then lift the assembled gate on the trailer and mark all directions to be drilled. Lift off the gate and drill holes through the trailer’s pro- file. It is also possible to measure where the holes are to be, drill and then fit extension sides to the trailer with bolts, tighten all bolts.
- Page 30 Table of contents...
-
Page 31: Deviation Form
DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied. -
Page 32: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS The warranty’s validity - Kellfri’s warranty is valid for 12 months from the date of purchase The warranty covers - Reimbursement for parts replaced after a material fault or manufac- turing fault has been verified. The warranty does not...
