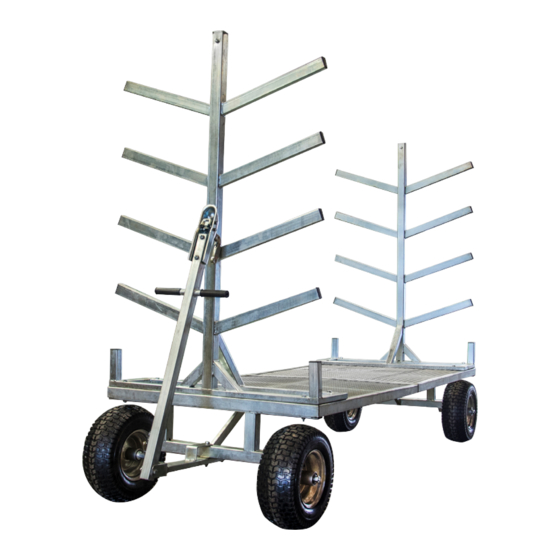

- Page 1 28 VBS+ HORSE JUMP TRAILER PLUS Read this manual carefully before using the product! Translated from the original...
-
Page 2: Table Of Contents
CONTENTS Introduction Product information Intended use Safety instructions Instruction for emergencies Personal protective equipment Warning decals Symbol Surroundings Before use Connecting the trailer Operating the machine Transport and storing Maintenance and service Assembly - trailer 8-10 Complaint form Warranty terms and conditions EC-declaration of conformity, original Table of contents... -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. By following the general safety information, instruction manual and common sense, you will get many years of enjoyable use of the prod- uct. Kellfri’s tools and machines are aimed for farmers with high demands on functionality. -
Page 4: Safety Instructions
Kellfri AB, Munkatorpsgatan 6, 532 37 SKARA Sweden. Tel.: +46 (0)511 242 50 (Pls. contact the retailer) https://www.kellfri.co.uk/ Do not use the equipment or product if you feel ill, tired or are under the influence of alcohol. -
Page 5: Instruction For Emergencies
INSTRUCTION FOR EMERGENCIES In case of an emergency please dial 112. Keep cell phone or emergency phone available specially when working alone. First aid kit and fire extinguishers must be kept easily accesable during all work, maintenance and service.To stop winch movements, release the starter cord. rvice. -
Page 6: Surroundings
SURROUNDINGS Check and make sure that the area is clear of people, children and objects before switching on or using the equipment. Risk of serious personal injury. Be especially careful if children are in the area where the equipment is being use or stored. Check that there are no low-hanging power lines within the work area. -
Page 7: Operating The Machine
OPERATING THE MACHINE Only people who understand the safety information and instructions in this manual may oper- ate the equipment. Be alert and careful when working with the trailer and only use the quip- ment or product in the manner described in this manual. When working with equipment that has moving parts, there is always the risk of injury. -
Page 8: Assembly - Trailer
ASSEMBLY - TRAILER Prepare all parts: Trailer chassis: divided into 2 parts, this parts hall be connected and secures with bolts Metal tube: 1 pcs for assembling of trailer chassis Towing bar: divided into 2 pieces; drawbar part 1 joints mounted under the trolley + a profile for joining wheels, part 2 tie rod with ow coupling Boom frame: 2 pcs, upper and left mounted on the front and rear of the trailer Wheels: 4 pcs... - Page 9 Turn the front of the carriage chassis upside down to for easier assembly of the wheels and drawbar part 1, see pictures below: 3st - Bolt M10x45mm + washer and lock nut 1st - Bolt M10x110mm + washer and lock nut 2st - Wheel nut M16 Mount the wheels on the rear part of the trailers chassis and then turn both parts side- ways for easier assembly.
- Page 10 Turn the trailer up right and mount the pole racks on the front and on the back of the flatbed as shown in the picture. 4st - Bolt M10x110mm + washer and lock nut 4st - Bolt M10x65 mm + washer and lock nut Mount he tow bar (part 2 with the coupling) Check all bolts and tighten, do not forget to lubricate wheel bearings.
-
Page 11: Complaint Form
COMPLAINT FORM We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine. -
Page 12: Warranty Terms And Conditions
You are always welcome to give your feedbacks, reviews or ask us about our equipment and products. Kellfri AB is constantly working on further developing their products and therefore reserves the right to modify, among other things the design and appearance without further notice.
