Summary of Contents for Kellfri ATV PRO 23-TV07PRO

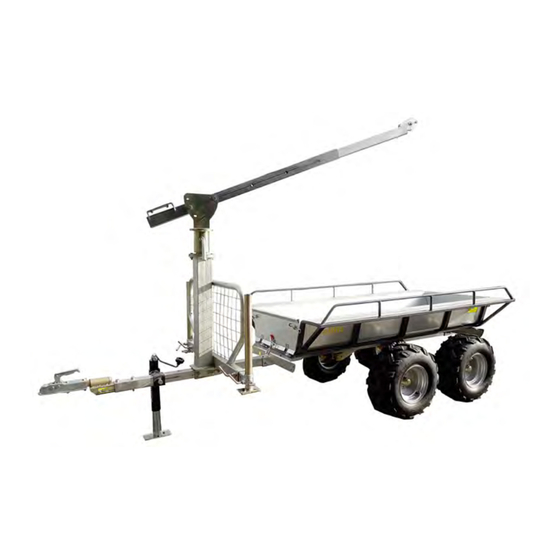

- Page 1 23-TV07PRO TIPPING AND FORESTRY TRAILER ATV PRO Carefully read the operating instructions before using the product! Operating instructions translated from Swedish...
- Page 2 Deviation form Warranty terms and conditions Kellfri designs and supplies efficient, affordable machinery and components for forestry, agriculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. We recommend that you always read and follow the safety instructions and the instructions in the product's operating manual.
-
Page 3: Product Information
Ground clearance 300 mm Tow bar 50 mm ball Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice. Table of contents... -
Page 4: Safety Instructions
If the safety instructions or the operating manual are damaged, or become unusable for any other reason, new copies may be ordered from: Kellfri AB, Munkatorpsgatan 6, SE-532 37 SKARA, Sweden. Tel.: +46 511 242 50 The safety instructions can also be downloaded from Kellfri's website: www.kellfri.co.uk... -
Page 5: Before Use
SURROUNDINGS Check that the work area is free from bystanders and objects before hitching or using the equipment. Otherwise, there is a risk of serious injury. Be extra careful if there are children in the vicinity of the area where the equipment or product is used or stored. Check that there are no low- hanging electrical cables within the work area. -
Page 6: After Use
Only those who understand the safety instructions and the operating manual may use the equipment or product. Exercise caution and care when working with the equipment or product and only use it in the way described in the instruction manual. There is a risk of crushing when working with equipment that has moving parts. -
Page 7: Product Safety Information
PRODUCT SAFETY INFORMATION Carefully read the instruction manual before using the product. Compliance with the safety instructions requires that the forestry trailer/tipping trailer is only used as described in these instructions. It is the user’s responsibility to read through the instructions and comply with them. •... -
Page 8: Maintenance And Service
LOAD THE TRAILER COR- RECTLY! MAINTENANCE AND SERVICE • Make sure that the equipment is stable and cannot tip over when carrying out maintenance and service work. • Replace damaged or worn parts to reduce the risk of injuries. • Carry out maintenance, service and checks in line with recommendations. - Page 9 Service Interval Measure Tyres Before each use Check the air pressure in the tyres. It must always be at least the recommended value, see info on the sidewalls of the tyres for the exact value. Do not exceed the maximum pressure! Max.
-
Page 10: Warning Decals
WARNING DECALS Make sure warning decals are always visible and clean them when necessary. Do not use a high-pressure washer directly on the warning decal. If apart with a decal is replaced, or the decal becomes worn or in any other way unusable, order a new set of decals. SYMBOL EXPLANATION Read the operating manual! Before carrying out work. - Page 11 Table of contents...
- Page 12 PARTS – TRAILER 2 pcs – Bogie with wheel hub Frame (1) Beam (front) (1) Bolsters Beam (rear) (1) Wheels (4) Headboard (1) Tow bar beam inner part (1) (R21-SV07.005) Table of contents...
- Page 13 PARTS – TRAILER Stabiliser bracket (2) Stabilisers (2) Main beam, outer part (1) (R21-SV07.006) Tow bar with ball coupling (1) Rear flap Height adjustable foot (1) Floor (1) Table of contents...
- Page 14 ASSEMBLY – TRAILER 2. Now fit all the wheels. Note: The wheel tracks 1. Fit the bogie axles on the right and left must point in the direction of travel, there is an side of the frame. See illustration below: arrow on the tyres indicating the direction of travel. Wheels, 2 left and 2 right 2.
- Page 15 4. A beam (front) is fitted before the headboard. 5. Mount the headboard, stabiliser brackets and stabilisers. Mounted on both sides of the headboard. See illustrations below: Stabiliser bracket Stabiliser 6. Fit the ball coupling and the height-adjustable stabiliser, tighten all bolts. Table of contents...
- Page 16 7. Fit the rear beam. 8. Fit the floor on the trailer. Carefully lift the floor onto the trailer and secure with pins. Rear flap, from inside the floor. Table of contents...
- Page 17 ASSEMBLY THE CRANE Mount the slewing house on the headboard, tighten all bolts. Now mount the crane holder. Mount the crane’s outer tube in the desired position and then mount the inner tube. Cog wheel Lock handle Crane holder (1) Slewing house (1) Inner, tube (1) Tube, outer (1) Table of contents...
- Page 18 BOLSTERS Bolsters are used when the floor is not installed. The bolsters are fitted with pins on the front and rear beams. Table of contents...
- Page 19 RECOMMENDATIONS: A winch is required to tip the floor. This winch can be a manual winch or an electrically powered winch. Important! The winch used must have a wire rope with a diameter of at least 4.5 mm. Wire rope length: 10 m Capacity: up to 630 kg Important information about the winch! The winch must never be used as a lifting tool to lift loads.
- Page 20 INSTRUCTIONS FOR TIPPING THE FLOOR: In order to tip the floor, the trailer must be equipped with a winch – see previous page for information about the winch! The trailer can be unloaded manually or by tipping the floor backwards. Observe the maximum permitted axle load! •...
- Page 21 NOTE! The rig is extra equipped with a bolster kit. Pull the log to the trailer using a winch. WARNING! Never attach the hook around the wire rope as this can damage the wire rope! Use a sling. • When winching loads, wind in slowly so that the wire rope is tensioned. Before continuing to winch, check all wire rope connections and that the hook is attached securely.
- Page 22 NOTES: Table of contents...
- Page 23 DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied.
-
Page 24: Warranty Terms And Conditions
You are always welcome to give feedback or ask us about our equipment and products. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice.
