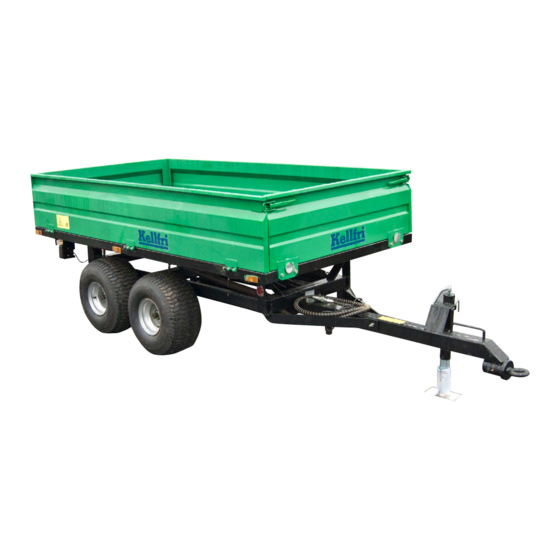

TIPPING TRAILER
Read this manual carefully
before using the product!
Translated from the original

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 23-TV25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kellfri 23-TV25

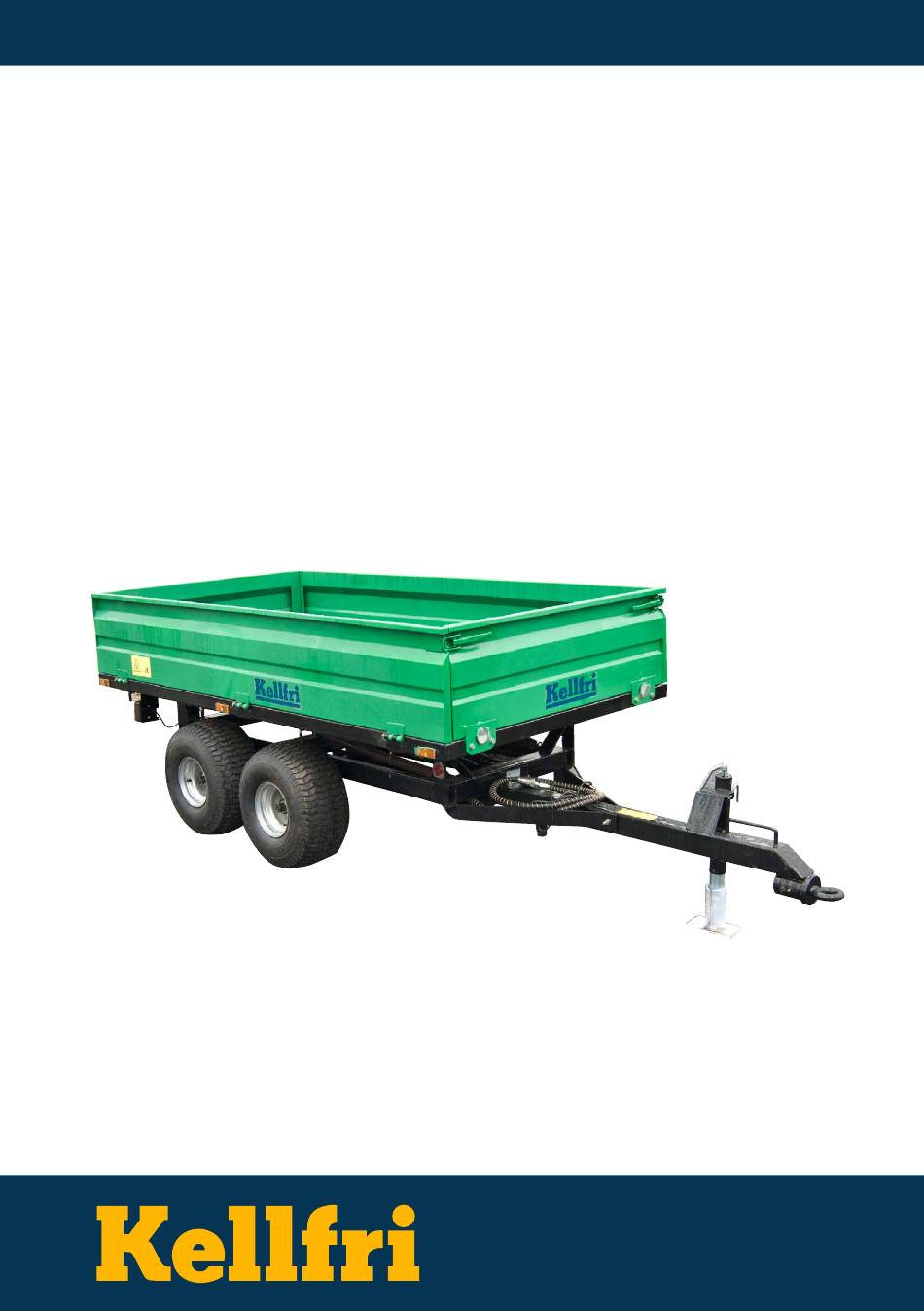

  • Page 1 23-TV25 TIPPING TRAILER Read this manual carefully before using the product! Translated from the original...
  • Page 2: Table Of Contents

    Table of contents Introduction Product details Safety instructions Product safety information Instructions for emergency situations Warning decals Personal protection Surroundings Steps to take before use Connecting the trailer After use Transportation and set-up Recycling Maintenance and service Care instructions Blueprint and material list Assembly instructions TV25 11 - 15 Electrical diagram for connecting electrical contacts to trailers...
  • Page 3: Introduction

    INTRODUCTION Thank you for choosing a product from Kellfri AB. Compliance with the general safety instruc- tions, instruction manual and sound common sense will guarantee many years of enjoyment using the product. Kellfri’s equipment and products are aimed at self-employed farmers who have stringent performance demands.
  • Page 4: Safety Instructions

    Kellfri AB, Munkatorpsgatan 6, SE-532 37 SKARA, Sweden. Tel.: +46 (0)511 242 50 The safety instructions can also be downloaded from the Kellfri website: www.kellfri.se Do not use the equipment or product if you feel ill, tired or are under the influence of alcohol.
  • Page 5: Instructions For Emergency Situations

    INSTRUCTIONS FOR EMERGENCY SITUATIONS In case of emergency, call 112. Always have a mobile phone or emergency phone available when working alone. A first aid kit and fire extinguisher must be kept in an easily accessible location when carrying out any work, maintenance and service.
  • Page 6: Personal Protection

    PERSONAL PROTECTION Always use suitable clothing and shoes. Do not wear loose clothing or jewellery while working with the equipment or the product. Long hair should be tied up when working with equip- ment that has moving parts. SURROUNDINGS Check that the work area is free from bystanders, children and objects before hitching or us- ing the equipment.
  • Page 7: Use

    Only those who understand the safety instructions and the instruction manual may use the equipment or product. Exercise caution and care when working with the equipment or prod- uct and only use them in the way described in the instruction manual. There is a risk of crush- ing when working with equipment that has moving parts.
  • Page 8: After Use

    Warning! NOTE: loading and tipping the trailer must de done on an even surface. Respect the trailer’s risk zone! Persons are not allowed in the vicinity of the trailer when tipping and loading. Most accidents occur when tipping the trailer. It is therefore important to inspect the trailer and the hitch on the towing vehicle before use.
  • Page 9: Recycling

    RECYCLING When scrapping, the equipment should be dismantled and transported to a designated recy- cling station. Contact your municipality for further information. MAINTENANCE AND SERVICE Make sure that the equipment is stable and cannot tip over when carrying out maintenance and service work.
  • Page 10: Blueprint And Material List

    DESIGNATION Short axle R-clip Wheels M10 x 25 bolt Side Bogie 10 Washer Bottom beam Parking jack (stabiliser) M10 x 30 screw Tow bar beam R-clip M10 nut Side beam Axle hub Tipper ram Front side 12 Washer M20 nut Tailgate M12 nut 20 Washer...
  • Page 11: Assembly Instructions Tv25

    ASSEMBLY INSTRUCTIONS TV25 Consider the following when assembling the trailer: Due to the weight of the trailer, it is recommended that two people work together to assemble it. 1. Check that all parts are included in the delivery. - Chassis - Front side - Tailgate - Sides (2)
  • Page 12 1. The trailer is delivered packed on a steel frame. Cut around the frame using an angle grinder to remove the trailer. Line up all the parts required for assembly, remove packing such as plas- tic, steel bands etc. NOTE: the steel band marked in the illustration must not be cut until the tow bar is fitted.
  • Page 13 4. Fit the tow bar, wind up the stabiliser completely to get the tow bar at the correct height. Use a jack if required to get the correct height. 5. Fit the stabiliser bars to the trailer and the tow bar. Tighten all the bolts. 6.
  • Page 14 7. Fit the bogie to the trailer Insert the axle and lock with a washer and an R-clip. Do the same on the other side of the trailer. 8. Before fitting the wheels, pull the hydraulic hose through the hole and attach the electrical cables to the chassis.
  • Page 15 10. Remove the bolts (4) on the front of the floor frame, fit the front side and screw the bolts back in place. Fit the sides (with the KELLFRI sticker on the front) and the tailgate, and lock in place with pins.
  • Page 16: Electrical Diagram For Connecting Electrical Contacts To Trailers

    ELECTRICAL DIAGRAM FOR CONNECTING ELECTRICAL CONTACTS TO TRAILERS 54g - Dimmer brake light BLUE L - Left indicator YELLOW WHITE 31 - Earth 54 - Brake light R - Right indicator GREEN 58R - Right rear light BROWN BLACK 58L - Left rear light IMPORTANT! CHECK THAT ALL THE LIGHTS ARE WORKING BEFORE USING THE TRAILER.
  • Page 17 Table of contents...
  • Page 18: Notes

    NOTES: Table of contents...
  • Page 19: Complaint Form

    COMPLAINT FORM We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine.
  • Page 20: Warranty Terms And Conditions

    You are always welcome to give your feedbacks, reviews or ask us about our equipment and products. Kellfri AB is constantly working on further developing their products and therefore reserves the right to modify, among other things the design and appearance without further notice.
