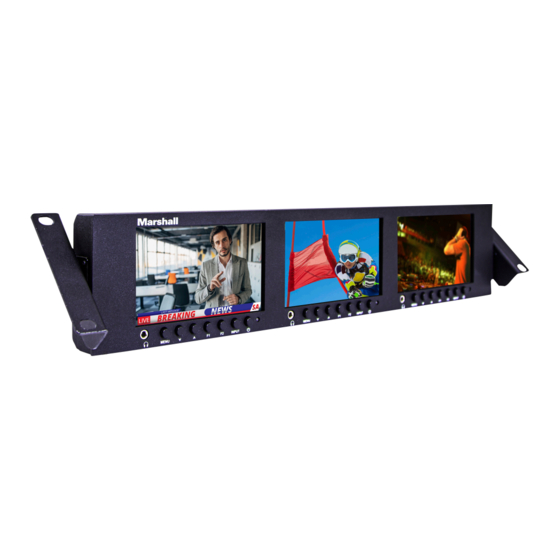

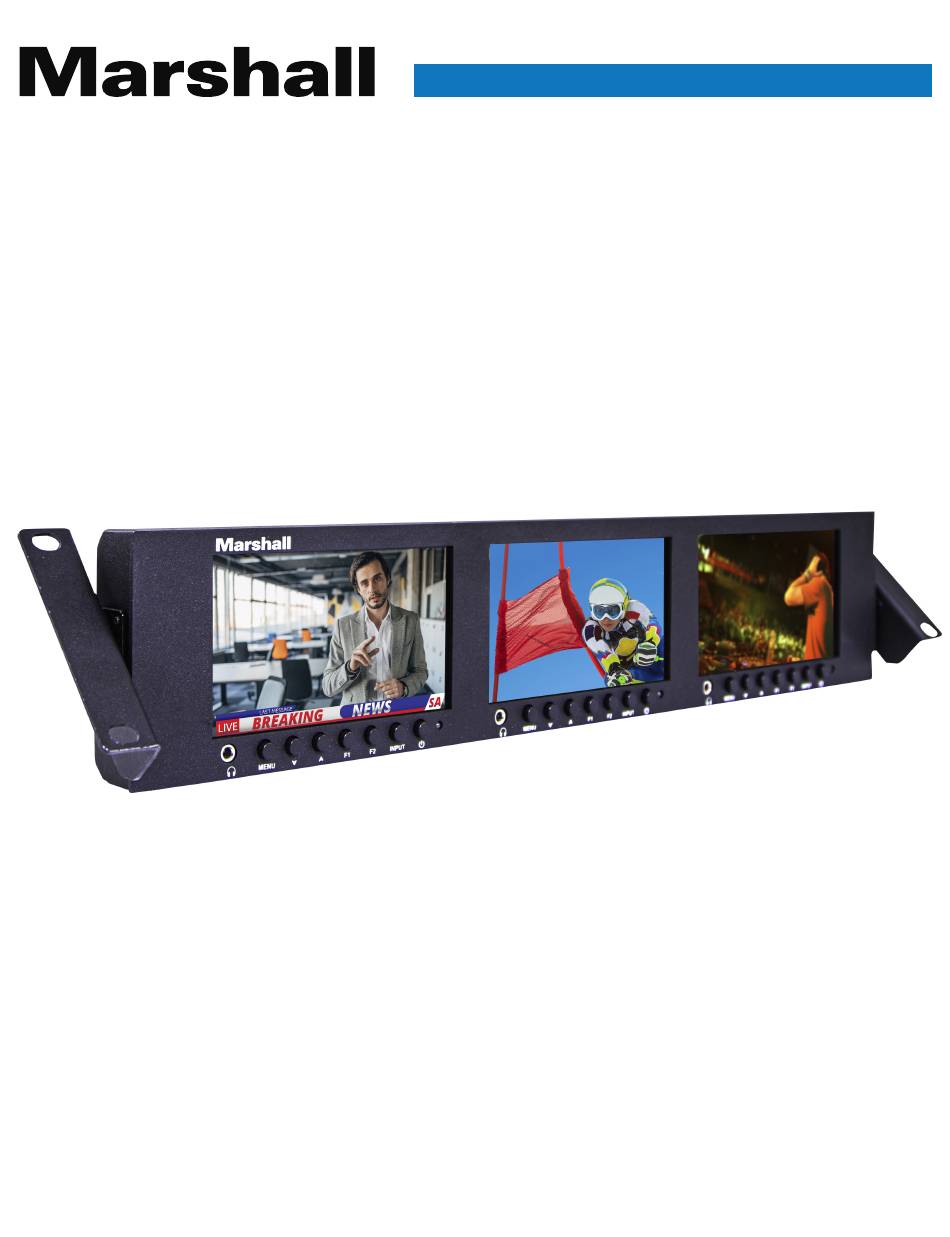

- Page 1 B r o a d c a s t A / V D i v i s i o n ML-503 Triple 5” 2RU Rack Mount Monitor Operating Instructions...
-
Page 2: Table Of Contents
Table of Contents Table of Contents 1. Product Description ..................3 2. Menu Settings ....................6 3. Specifications ....................11 4. Included Accessories ................... 11 5. Troubleshooting .................... 11 6. PCSet Remote Terminal Application ............12 7. WARRANTY ....................12 IMPORTANT SAFETY INSTRUCTIONS: •... -
Page 3: Product Description
ML-503 / Product Description Product Description Front Panel Features Rackmount ears with tilt capability. Tilt monitor for best visibility or improved ventilation. Headphone jack. Accepts standard 3.5mm stereo mini-phone plug. Menu key: Opens / Closes menu system “ ” key: Selects menu options... - Page 4 Product Description Back Panel Features 1. Barrel Power Connector 12V DC power input 5.5mm x 2.1mm barrel connector. Plug the supplied DC power adapter here. (Center pin is +) Important: Please connect only one type of power supply at a time to this monitor. 2.
- Page 5 ML-503 / Product Description 4, 7, 9. Serial Digital “BNC” Connectors SDI input and non-reclocking loop out. Compatible with SD-SDI, HD-SDI and 3G-SDI inputs. Embedded audio may be monitored at the Headphone jack and visually monitored on-screen. 5, 8, 10. HDMI Digital Video Connectors HDMI input and loop out.
-
Page 6: Menu Settings
Menu Settings Press the MENU key on the monitor and function menus will pop-up on the screen. Click “ ” or “ ” key to select an option. Then press the menu key again to open the sub-menu. - Page 7 ML-503 / Menu Settings 2. MARKER This page offers controls for setting various on-screen markers. Center Marker – places a “ ” mark in the exact center of the display. (Useful for checking camera or graphics positioning.) Aspect Marker – places borders on screen representing various typical video and cinema aspect ratios.
- Page 8 Menu Settings 3. VIDEO This page offers controls for setting various on-screen markers. Scan – Selects various display methods. When Aspect is selected, the item below this one can adjust the aspect ratio of the displayed image. Aspect – Allows changing the aspect ratio (shape) of the picture to match the incoming video.
- Page 9 ML-503 / Menu Settings 4. CAMERA AUX This page offers settings to assist with camera focus. Peaking - adds a colored edge to picture details making it easy to identify which areas are in sharpest focus. This is a useful tool to use during camera lens adjustments.
- Page 10 Menu Settings The Setting page provides a collection of system-level functions 6. SETTING including On Screen Display (OSD), backlight, Ethernet port settings (IP Config), short cut keys (F1/F2), and Factory Reset. Language – sets on-screen messages to either English or Chinese. OSD Timer –...
-
Page 11: Specifications
ML-503 Manual Specifications Included Accessories DC 12V 3A Universal 120/240 VAC 50/60 Hz Power adapter • with 5.5mm x 2.1mm push connector TALLY kit – Adapts 15-pin Tally connector to solderless terminal block • Troubleshooting 1. Power on but no picture: Check whether the cables are correctly connected. -
Page 12: Pcset Remote Terminal Application
WARRANTY Marshall Electronics warranties to the first consumer that this ML-503, Triple 5” Rack- mount monitor will, under normal use, be free from defects in workmanship and mate- rials, when received in its original container, for a period of one year from the purchase date.
