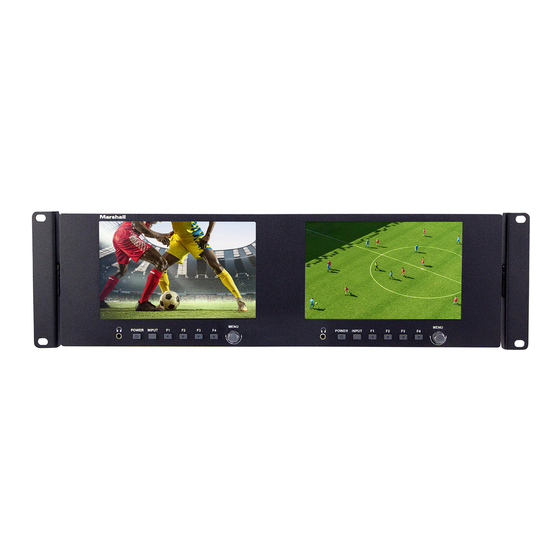

- Page 1 B r o a d c a s t A/V D i v i s i o n ML-702-V2 Dual 7” 3RU Rack Mount Monitor User Manual...
- Page 2 ML-702-V2 User Manual Table of Contents Product Description Front Panel Features Product Description ......................... 2 Menu Settings ............................6 Specifications .............................12 Included Accessories ........................12 Troubleshooting ..........................12 PC Set Remote Terminal Application ..................13 WARRANTY .............................13 IMPORTANT SAFETY INSTRUCTIONS: • Please read Operating Instructions (this manual) before using the product.
-
Page 3: Product Description
ML-702-V2 User Manual Product Description 3, 11. HDMI Digital Video Connectors Back Panel Features HDMI input and loop out. Embedded audio may be monitored at the headphone jack and visually monitored on-screen. 4, 10. Composite Analog Connectors Video input and loop out. Used for NTSC or PAL composite (CVBS) video sources. -
Page 4: Menu Settings
ML-702-V2 User Manual Menu Settings Press MENU knob on the monitor and function menus will pop-up on the screen. Rotate left or right to select an option. Then press the knob again to open the sub- menu. When an arrow pointer appears in the menu, turn the Menu knob again to access the item or press the knob to confirm a selection. - Page 5 ML-702-V2 User Manual Menu Settings VIDEO continued 3. VIDEO This can be a useful tool when viewing images shot through mirrors or from cameras mounted upside-down. This page provides controls for picture size, DSLR – Use the DSLR Preset option to reduce the visibility of on screen indicators shown with position and related functions including image flip, popular DSLR cameras.
- Page 6 ML-702-V2 User Manual Menu Settings 5. AUDIO SETTING (continued) Language – sets on-screen messages to either English or Chinese. This Page is used to adjust volume, select audio channel, enable level meter and mute. OSD Timer – Adjusts the amount of time menus remain on screen.
-
Page 7: Specifications
Input Voltage DC 12V Input Signal HDMI, SDI, Video, Audio Currently works with models ML-503, ML-702, ML-702-V2, V-702, V-702-12G. Power Consumption Operating Temperature -10 C ~ 50 C ˚...
