5.6” active matrix lcd monitors

Advertisement

Switch Settings, Adjustments and Indicators

7
Tally Indicators Illuminate when active
Power On/Off switch
Video signal
Illuminates red when
selector
system power is
switch
present
Illuminates
Illuminates Green
when active
when monitor is ON

Warranty

8
Marshall Electronics warranties to the first consumer, that this V-R563P-SDI Triple 5.6 inch LCD rack mounted monitor set will, under normal use,
be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date.
This warranty is extended to the purchasing end user only and proof of purchase is necessary to honor the warranty. If there is no proof of
purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor
and parts may be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifications
in design or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any warranties
other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period
described above.
An extra note about LCD displays: It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the periphery of the
display active viewing area. Marshall Electronics has the option to reserve service for display pixel failure if deemed unobtrusive to effective
use of the monitor by our technicians.
Due to constant effort to improve products and product features, specifications may change without notice.
Dry Erase Label
Image Adjustment Controls
Video signal
Color Bar
selector
On/Off
switch
switch
Illuminates
Illuminates
when active
when bars
are active
Marshall Electronics
1910 East Maple Ave.
El Segundo, CA 90245
Tel.: 800-800-6608 • Fax: 310-333-0688
www.LCDRacks.com
Email: sales@lcdracks.com
V-R563P-SDI
V-R563P
-SDI
Users Guide
Users Guide
1
2
3
4
5
6
Switch Settings, Adjustments and Indicators
7
Warranty
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-R563P-SDI and is the answer not in the manual?

Questions and answers

Summary of Contents for Marshall Amplification V-R563P-SDI

  • Page 1 Warranty Marshall Electronics warranties to the first consumer, that this V-R563P-SDI Triple 5.6 inch LCD rack mounted monitor set will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date.
  • Page 2: Product Overview

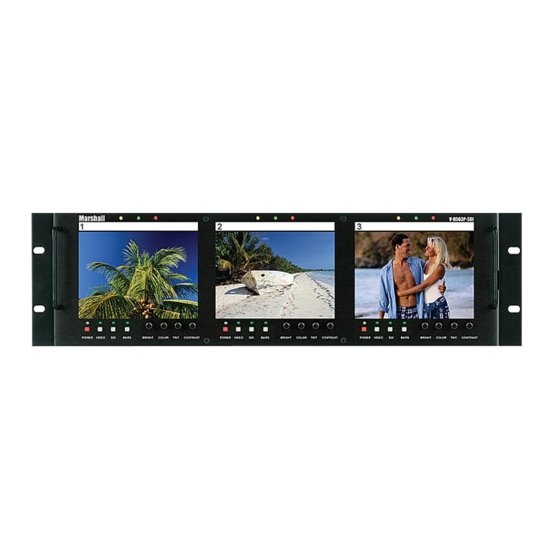

    The V-R563P-SDI has three independently controlled 5.6” active matrix LCD monitors. Each of the 5.6” panels produces high-resolution images with 960 x 234 pixels. The V-R563P-SDI also has a unique feature that allows the unit to tilt up or down for optimum viewing angle and installs into an EIA standard 19” rack. Each screen has one composite video with active loop through and one SDI (SMTPE 259M) input with active loop through, active clock recovery and automatic 75Ω...
