Page 1: Operating Instructions

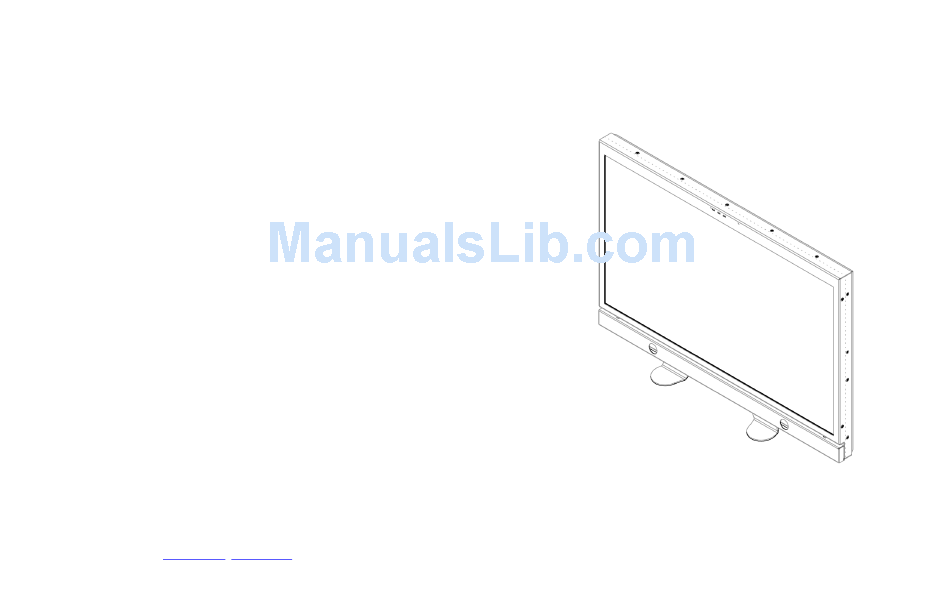

Marshall Electronics V-MD241 Model No. High Definition LCD Monitor with Modular Inputs Operating Instructions Marshall Electronics, Inc. Edition 2 Revision 0P 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com •... - Page 2 Warranty Marshall Electronics warranties to the first consumer that this V-MD241 LCD monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date.
-
Page 3: Table Of Contents
Table of Contents This page intentionally left blank Installation and Initial Setup ------------------------------------------------------------------------------------------------------5 Top and Front Panel Features ----------------------------------------------------------------------------------------------------7 Rear Panel Features-----------------------------------------------------------------------------------------------------------------8 Compatible Input Formats---------------------------------------------------------------------------------------------------------9 Input Module Installation-------------------------------------------------------------------------------------------------------- 10 MAIN MENU AND NAVIGATION------------------------------------------------------------------------------------------------ 11 VIDEO CONFIGURATION SUBMENU..............................11 MARKER CONFIGURATION SUBMENU ..............................14 FILTER CONFIGURATION SUBMENU..............................17 SYSTEM CONFIGURATION SUBMENU ..............................19 FUNCTION PRESETS SUBMENU ................................20... - Page 4 This page intentionally left blank Warning: Please use only the square type VESA mount (which fits inside the VESA Screw Length WARNING silkscreen) with the 75mm hole pattern in order to avoid obstructing Module Slot 2.
-
Page 5: Installation And Initial Setup
Plug the power supply into an AC power source (100-240 V @ 50/60 Hz). Attach the Power connector to the back of the monitor. Connect the required cables for video signal input and output. (Power must be applied to the V-MD241 for the active loop- though output to be activated.) The monitor defaults to ‘ON’... - Page 6 This page intentionally left blank Specifications PANEL ■ Factory / Upgrade Use Only Screen Size 24” Diagonal Display Area (h x v) 531.36 x 298.89 mm TALLY Hardware Interface (HD-15) ■ Pixels 1920 x RGB x 1080 Activation requires contact closure of pin to ground Viewing Angle (h x v) 178°...
-
Page 7: Top And Front Panel Features
Top and Front Panel Features Global Use the Global tab to control multiple Marshall Electronics MD monitors simultaneously. Only the POWER, MENU and DISPLAY tabs may be used on the GLOBAL scale. All other options must be used on an individual monitor basis. To control monitors globally: 1) Click on the GLOBAL CONTROL tab on the bottom of the web page. -
Page 8: Rear Panel Features
“No Module v0.00.” YPbPr and CVBS Video Input and Output Desktop Mounting Holes The V-MD241 has CVBS and YPbPr inputs and one active loop- through output for each input. See Compatible Input Formats These holes are used when attaching the monitor to the for details on accepted formats. -
Page 9: Compatible Input Formats
■ Configuration Mode The following video standards are supported by the V-MD241: Use this drop down menu to select between the different IP configuration modes available for the monitor. -
Page 10: Input Module Installation
Input Module Installation ■ On-Screen Tally Use this to turn the On-Screen Tally lights ON or OFF. ■ Text Tally Use this to turn the Text Tally function ON or OFF. 1. Remove Power From Unit Modules are cold-swappable only. Damage will occur if modules are inserted or removed while unit is powered. -
Page 11: Main Menu And Navigation
This can be selected for each individual panel, or on the global level under the GLOBAL column. When selecting from the GLOBAL column, each individual panel will load its own individual settings. For example, if you select User 3 from the GLOBAL column, each panel will load a separate User 3 setting, not a single file. - Page 12 Marker Config ■ Color Temperature Use this setting to choose one of three color temperature presets: ■ Marker Enable • D55 (5500K) Use this row to turn the screen markers on an individual screen ON or OFF. • D65 (6500K) •...
- Page 13 Network Control Page Use the check field modes for monitor calibration or to analyze individual color components of an image. In Monochrome mode, all color is disabled and only a grayscale image is shown. In Blue, Green, and Red check field modes, only the selected color will be shown.
-
Page 14: Marker Configuration Submenu
■ Remote Enable ■ Pixel-to-Pixel Use this setting to allow the monitor to be controlled by other monitors on a V-MD Network. Choose Global to allow access Use this setting to enable Pixel-to-Pixel mode. from any monitor or choose Own Webpage Only to only allow the monitor’s web page to control the monitor. This Pixel-to-Pixel mode bypasses the monitor’s internal scaling function and displays incoming images in their native resolution and aspect ratio, with a one-to-one mapping: ■... - Page 15 14:9 ■ Text Tally 1.85:1 2.35:1 95% Safe Use the Text Tally option to lock the Text String color to the same color as the current Tally color. When there is no specific 93% Safe tally color enabled, the text string will default to the Text Color selection made in the IMD &...
- Page 16 Example (80% Marker in 4:3 Mode): 0% Background 100% Background ■ Text Enable Use the Text Enable function to turn the MD Text feature ON. This will cause the Text String to appear on the lower portion of the screen. ■...
-
Page 17: Filter Configuration Submenu
Use this feature to choose between controlling the Contrast of the image or the intensity of the panel’s Backlight with the CONTRAST button on your monitor. Note: While the Contrast control moves up and down at intervals of 1, the Backlight FILTER CONFIGURATION SUBMENU control will move up and down at intervals of 2, from 0-100. - Page 18 ■ Mosquito Filter Use this setting to filter out “Mosquito Noise” – an artifact that appears as specs around edges of objects. This artifact is the result of video that has been compressed at some point. Video sources from DVD-Players, PDA’s, Digital Cable Boxes, Camcorders, etc.
