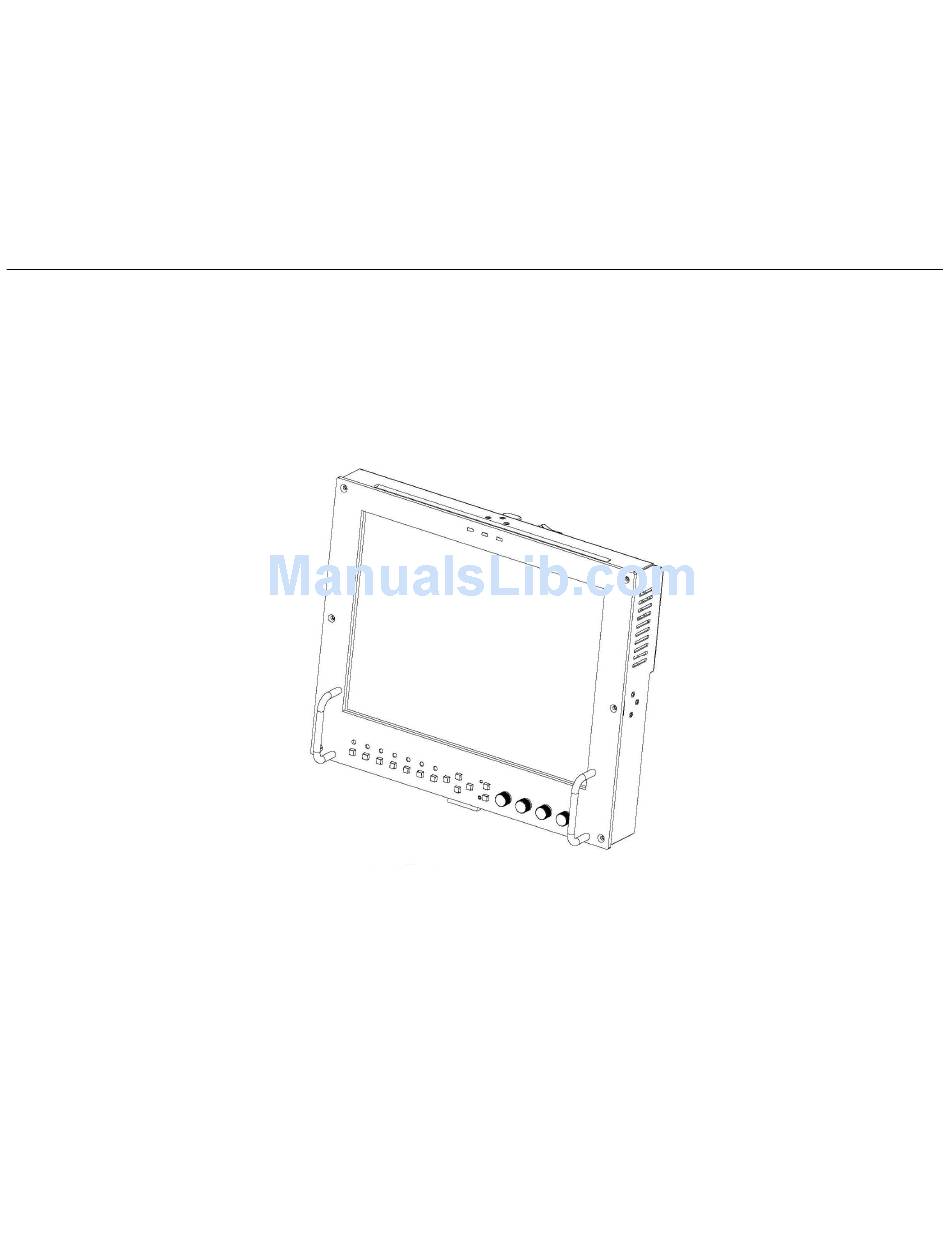

Page 1: Operating Instructions
Marshall Electronics V-R1041DP-AFHD Portable High Definition LCD Monitor Operating Instructions... -
Page 3: Table Of Contents
Contents Product Overview... 4 Features ... 4 Installation and Initial Setup ... 5 Unpacking ... 5 Installation... 5 Connections and Power-On... 5 Front Panel Features ... 6 Power Button ... 6 Input Select Buttons... 6 On-Screen Menu Navigation Buttons ... 6 User-Definable Function Buttons... -
Page 4: Product Overview
LCD platform. Weighing only 3.28 lbs, this monitor is ideal as a light-weight high resolution viewfinder or focus- assist monitor. The V-R1041DP-AFHD can also be rack-mounted with an optional 4RU adapter, or used in a desktop configuration with optional desktop stand. Emulation of SMPTE-C/EBU color and adjustable color temperature enable the most precise color representation possible. -
Page 5: Installation And Initial Setup
The monitor will draw approximately 2 Amps at 12 Volts in operation. Connect the required cables for video signal input and output. (Power must be applied to the V-R1041DP-AFHD for the active loop-though outputs to be activated.) All BNC connectors are rated at 75Ω. -
Page 6: Front Panel Features
Front Panel Features Power Button Turn the monitor on by pressing the power button. In the OFF state, the LED will shine red. The LED will shine green when the monitor is turned on. Input Select Buttons Use the input select buttons to select the input to be displayed: •... -
Page 7: Rear Panel Features
Rear Panel Features Power Input Connect the 12VDC input to the 4-Pin XLR power input connector. Power can be supplied from the included power supply, or from a variety of DC sources supplying at least 2 Amps at 12 Volts. IMPORTANT: If using a power source other than the included power supply, be sure that the polarity of the DC input is correct:... -
Page 8: Compatible Input Formats
Compatible Input Formats Format NTSC 525i 625i 486p / 59.94 576p / 50 1035i / 60 1035i / 59.94 1080i / 60 1080i / 59.95 1080i / 50 1080psF / 24 1080psF / 23.98 1080p / 30 1080p / 29.97 1080p / 25 720p / 60 720p / 59.94... -
Page 9: On-Screen Menu
On-Screen Menu STRUCTURE OVERVIEW MARKER SETUP VIDEO CONFIG MAIN SYSTEM CONFIG MAIN MENU AND NAVIGATION Access the main menu by pushing and holding the MENU button on the front panel of the monitor. Main Menu MARKER 16:9 MARKER 4:3 MARKER BACKGROUND CENTER MARKER COLOR TEMP ADJ COLOR BIAS... -
Page 10: Marker Setup Submenu
MARKER SETUP SUBMENU ■ 16:9 Markers Use this setting to superimpose one of 10 markers on the screen when in 16:9 mode. This setting is disabled when the aspect ratio is set to 4:3, or when Pixel-to-Pixel™, Underscan, or H/V Delay is enabled. •... -
Page 11: 4:3 Markers
MARKER SETUP SUBMENU (continued) ■ 4:3 Markers Use this setting to superimpose one of 5 markers on the screen when in 4:3 mode. This setting is disabled when the aspect ratio is set to 16:9, or when Pixel-to-Pixel™, Underscan, or H/V Delay is enabled. •... -
Page 12: Video Configuration Submenu
VIDEO CONFIGURATION SUBMENU ■ Color Temperature Presets Use this setting to choose one of three color temperature presets: • D55 (5500K) • D65 (6500K) • D93 (9300K) • USER (Adjustable Color Bias and Gain) ■ Adjusting Color Bias Use this submenu to adjust bias of the color response. Adjust the bias for each color to alter the white balance of the image. -
Page 13: Monochrome Mode
VIDEO CONFIGURATION SUBMENU (continued) ■ Monochrome Mode Use this setting to enable monochrome mode. Only the luminance of the image will be displayed as a grayscale picture. ■ Blue-Only Mode Use this setting to enable Blue-Only mode. This mode displays only the blue color component of the image, switching off the red and green components. -
Page 14: Aspect Ratio Setting
VIDEO CONFIGURATION SUBMENU (continued) ■ Aspect Ratio Settings Use to switch between 4:3 and 16:9 aspect ratios. As the V-R1041DP-AFHD monitor has a native resolution of 1024 x 768 RGB pixels, incoming images are automatically scaled to fit the screen: •... -
Page 15: System Configuration Submenu
SYSTEM CONFIGURATION SUBMENU ■ Internal SMPTE Color Bars Use to display internally generated SMPTE split-field color bars. ■ User-Definable Function Buttons Use the FUNCTION 1 and FUNCTION 2 menu items to define each function button on the front panel of the monitor. The following options are available for each button: •... -
Page 16: Specifications
Specifications ■ PANEL Screen Size 10.4” Diagonal Display Area (h x v) 210.432 x 157.824 mm Aspect Ratio 4:3 Native (4:3/16:9 Modes) Pixels 1024 x RGB x 768 Color Depth 24-bit (16,777,216 Colors) Viewing Angle (h x v) 170° x 170° Brightness 300 cd/m Contrast Ratio... -
Page 17: Maintenance
Maintenance ■ Screen Cleaning Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean micro- fiber cloth can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use paper towels. Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the surface. -
Page 18: Optional Accessories
Optional Accessories ■ Batteries • IDX-E7S 71Wh/4.8Ah Lithium Ion V-Mount Battery Pack • IDX-E7 71Wh/4.8Ah Lithium Ion V-Mount Battery Pack with PowerLink • IDX-E10S 98Wh/6.6Ah Lithium Ion V-Mount Battery Pack • IDX-E10 98Wh/6.6Ah Lithium Ion V-Mount Battery Pack with PowerLink ■... -
Page 19: Warranty
Warranty Marshall Electronics warranties to the first consumer that this V-R1041DP-AFHD LCD monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. - Page 20 Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com • sales@lcdracks.com...
