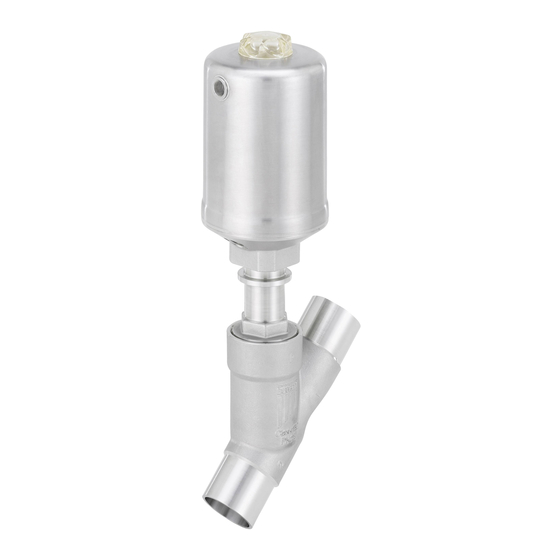

Burkert 2060 Operating Instructions Manual
2/2-way angle seat valve
Hide thumbs
Also See for 2060:
- Quick start manual (46 pages) ,
- Installation instructions manual (28 pages) ,
- Operating instructions manual (24 pages)
Subscribe to Our Youtube Channel
Related Manuals for Burkert 2060
Summary of Contents for Burkert 2060

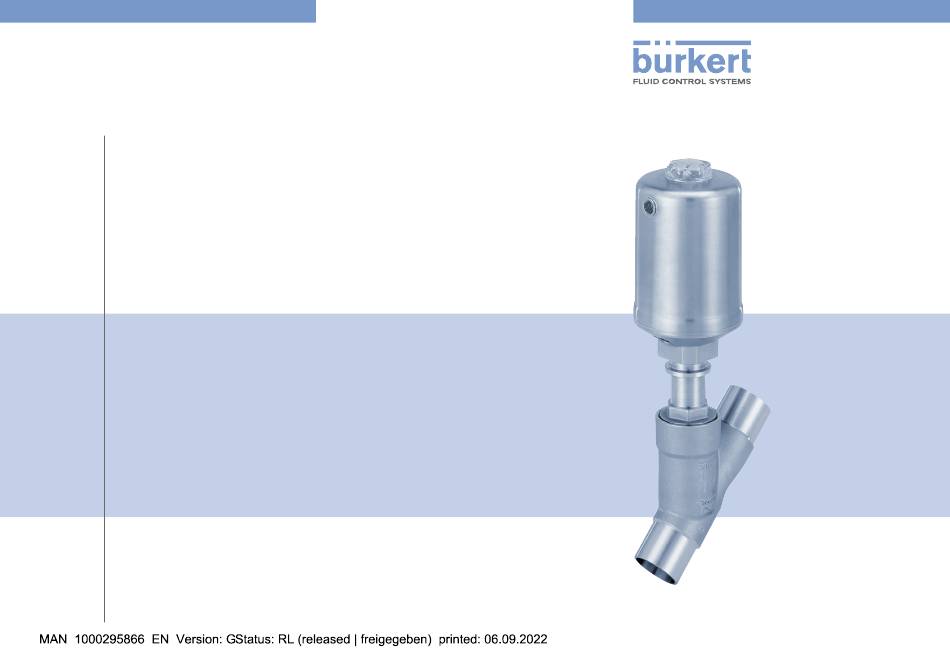

- Page 1 Type 2060 2/2-way angle seat valve 2/2-Wege-Schrägsitzventil Vanne à siège incliné 2/2 voies Operating Instructions Bedienungsanleitung Manuel d‘utilisation...
- Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. © Bürkert Werke GmbH & Co. KG, 2016 - 2022 Operating Instructions 2208/04_EUeu_00810532 / Original DE...
-
Page 3: Table Of Contents
Type 2060 Tableofcontents 1 OPERATING INSTRUCTIONS ..............4 Installing valve body ..............17 Install actuator (welded connection) ........17 Definition of the term "device" ..........4 Mount accessories ..............18 Symbols ..................4 Turning actuator ...............18 2 INTENDED USE .....................5 Pneumatic connection ............19 3 BASIC SAFETY INSTRUCTIONS ............5 8 DISASSEMBLY . -
Page 4: Operating Instructions
Definition of the term "device" CAUTION! The term "device" used in these instructions always refers to the Type 2060 angle seat valve. Warns of a potential danger. In these instructions, the unit bar stands for relative pressure. The ▶ Failure to observe these instructions may result in moderate or minor injuries. -
Page 5: Intended Use
Type 2060 Intendeduse INTENDED USE BASIC SAFETY INSTRUCTIONS Improper use of the Type 2060 system may be hazardous to people, nearby equipment and the environment. These safety instructions do not take into account any unforeseen ▶ The device is designed to control the flow of liquid and gaseous circumstances and events that occur during installation, operation media. and maintenance. -
Page 6: General Notes
A precondition for the warranty is that the device is used as intended and that the specified usage conditions are taken into account. 4.3 Information on the Internet Operating instructions and data sheets for Type 2060 can be found country.burkert.com online at: English... -
Page 7: Product Description
Type 8697 feedback sensor Wrench flat for open- end wrench Flow direction 5.3.2 Device variants indicator The angle seat valve is available for the following actuator sizes: Image 1: Type 2060 angle seat valve, structure and description 50, 70, 90, 130 (see “6.4”). English... -
Page 8: Function
Type 2060 Productdescription 5.4 Function Control function I (CFI) Depending on the variant, the valve seat is closed with or against the Actuating function via reciprocal medium flow. Spring action (CFA) or pneumatic pilot pressure (CFB and pressurization CFI) generate the closing force on the swivel plate. Force is transmitted through a spindle connected to the piston actuator. -
Page 9: Technical Data
6.1 Conformity seal the seat. The valve opens through pilot pressure. The angle seat valve Type 2060 INOX conforms to EU directives as per the EU Declaration of Conformity. WARNING! 6.2... -
Page 10: Type Label
Type 2060 Technicaldata 6.3 Type label 6.4 Conversion of actuator sizes WARNING! Actuator size Designation Outer dia- Scale drawing [mm] meter A Risk of injury from high pressure. [mm] Excessive pressure can damage the device. ▶ Comply with pressure range values on the type label. Seal material Control function (CF) Flow Type coefficient Image 3: Conversion of actuator sizes... -
Page 11: Operating Conditions
Type 2060 Technicaldata 6.5 Operating conditions Derating pressure and temperature range Usage limits of the valve (derating operating pressure) 6.5.1 Temperature ranges Temperature Operating pressure Medium Actuator temperature -10 – +50 °C 25 bar Actuator size (with PTFE Ambient temperature material 100 °C 24.5 bar [mm] and PEEK 150 °C 22.4 bar... - Page 12 Type 2060 Technicaldata Operating and pilot pressure for control function A (CFA), flow Temperature Operating pressure direction below seat (standard): -10 – +50 °C 14 bar Minimum pilot 100 °C 14 bar Maximum operating pressure pressure 150 °C 13.4 bar [bar] [bar] 200 °C 12.4 bar Actuator size [mm] Actuator size [mm] 230 °C 11.7 bar Tab. 5: Derating the operating pressure as per JIS B 2220 10K Tab.
- Page 13 Type 2060 Technicaldata Operating pressure and pilot pressure for control function A Required minimum control pressure depending on the ope- (CFA), flow direction below seat, reduced spring action (EC04) rating pressure The following diagrams show the required minimum control pressure Maximum operating Minimum pilot pressure for control functions A, B and I, depending on the operating pressure [bar] [bar] pressure. Actuator size [mm] Actuator size [mm] Control function A, flow direction above the seat – – CFA above – – seat –...
- Page 14 Type 2060 Technicaldata Control function B and I, flow direction below seat CFA above seat CFB/CFI Pilot pressure [bar] Image 6: Pressure diagram, actuator size 70, control function A, Image 8: Pressure diagram, actuator size 50, control function B flow direction above the seat and I, flow direction below seat CFA above CFB/CFI...
-
Page 15: General Technical Data
Type 2060 Technicaldata 6.6 General technical data Actuator size See type label Control function, see type label Description of control functions, CFB/CFI see Chapter “5.4” Installation position Any, preferably actuator face up Media: DN65 Control media Neutral gases, air Flow media Water, alcohol, fuel, hydraulic fluid, saline... -
Page 16: Installation
▶ Do not reach into openings. Valve body 7.1 Preparatory work Wrench flat for open-end wrench • Ensure that pipelines are in alignment. • Remove soiling from pipelines. Image 12: Angle seat valve Type 2060 • Note flow direction (see type label). English... -
Page 17: Installing Valve Body
Type 2060 Installation 7.3 Installing valve body 7.4 Install actuator (welded connection) WARNING! Risk of injury due to improper installation. ▶ Installation may only be performed by qualified and trained Seal personnel. ▶ Use an open-end wrench for installation. ▶ Observe the tightening torque value. Image 13: Seal Dirt trap for devices with approval according to DIN EN 161 According to DIN EN 161 “Automatic on/off valves for gas burners and →... -
Page 18: Mount Accessories
Type 2060 Installation → 7.5 Mount accessories For control function A pressurize the pilot air port 1 with com- pressed air: Valve opens. For description, refer to documentation of corresponding Pilot air port CFB accessories. and CFI / Exhaust air port CFA 7.6... -
Page 19: Pneumatic Connection
Type 2060 Installation → Control function B: Counter with a suitable open-end wrench on the wrench flat of → the nipple. Connect control medium to pilot air port 2. → Place a suitable open-end wrench on the hexagon head of the Control function I: actuator. -
Page 20: Disassembly
Type 2060 Maintenance DISASSEMBLY MAINTENANCE DANGER! DANGER! Risk of injury from discharge of pressure and escaping medium. Risk of injury from high pressure. ▶ Before working on the system or device, switch off the pressure Dismantling a device which is under pressure is hazardous due to a and ventilate or empty the lines. sudden discharge of pressure or escaping medium. -
Page 21: Replacing Spare Parts
Type 2060 Maintenance 9.2 Replacing spare parts 9.2.1 Changing the valve set Relief bore The valve set consists of: • Swivel plate with seal • Pin • Seal Image 17: Relief bore The actuator must be removed from the valve body in order to replace the valve set. - Page 22 Type 2060 Maintenance → Replace the valve set Support swivel plate on the cylindrical part using a prism or something similar. → Insert pin into the borehole. → Caulk pin boreholes on both sides of the swivel plate using a chisel or centre punch.
- Page 23 Type 2060 Maintenance 9.2.2 Changing the packing gland Tightening torque [Nm] 45 ± 3 DANGER! 50 ± 3 Risk of injury from discharge of pressure and escaping medium. 60 ± 3 ▶ Before disassembly, shut off the pressure and vent all lines. 65 ± 3 WARNING! 70 ± 3 Risk of injury due to using wrong tool. ▶ To replace the packing gland, use the special installation or socket 100 ±...
- Page 24 Type 2060 Maintenance Removing actuator from the valve body Changing the packing gland → → Clamp valve body in a collet (only for valves which have not yet Unscrew spindle guide using a modified socket wrench been installed). NOTE! Damage to the seat seal or seat contour. ▶ When removing the actuator, the valve must be in the open Packing gland position.
- Page 25 Type 2060 Maintenance WARNING! Support ring Risk of injury due to parts being ejected. Upper chevron seals When the spindle opening is exposed, the individual parts of the Upper thrust collar packing gland will be pressed out at an undefined speed when the Compression spring pilot air port is pressurised.
-
Page 26: Faults
Type 2060 Faults FAULTS Installing swivel plate → Connect swivel plate to the spindle. Fault Elimination → Align boreholes in the swivel plate and spindle. → Actuator does Pilot air port interchanged Support swivel plate on the cylindrical part using a prism or not switch something similar. -
Page 27: Spare Parts
▶ Use only original accessories and original spare parts from Bürkert. 11.1 Replacement part sets The following replacement part sets are available for the angle seat valve Type 2060: Image 22: Spare parts • Valve set consists of swivel plate with PTFE seal, pin and seal. -
Page 28: 11.2 Installation Tools
Type 2060 Faults 11.2 Installation tools Valve set (PTFE seal) Modified socket wrench for packing gland Order number Socket wrench Order number 011 134 Spindle ø 15–40 683 221 011 171 10 mm 160 737 Spindle ø 32–65 683 223 011 208 14 mm 011 209 Tab. 13: Modified socket wrench 216 431 241 777 Tab. -
Page 29: Transportation, Storage, Disposal
Type 2060 Transportation,storage,disposal TRANSPORTATION, STORAGE, DISPOSAL NOTE! Transport damages. Inadequately protected devices may be damaged during transport. • Protect the device against moisture and dirt in shock-resistant packaging during transportation. • Avoid exceeding or dropping below the permitted storage temperature. Incorrect storage may damage the device. • Store the device in a dry and dust-free location. - Page 31 www.burkert.com...
