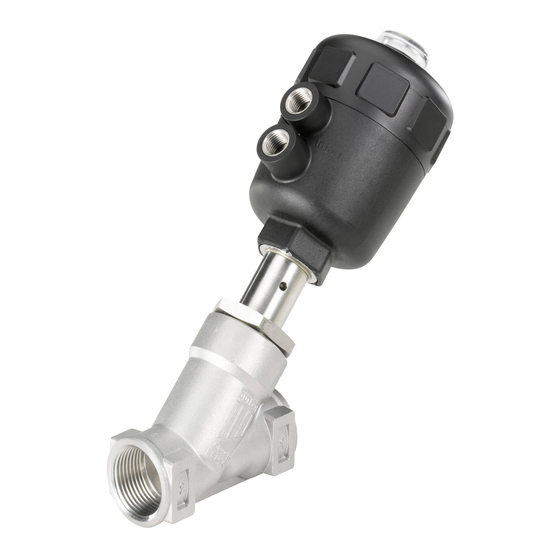

Bürkert 2000 Service Manual
  1. Manuals
  2. Brands
  3. Bürkert Manuals
  4. Control Unit
  5. Type 2000
  6. Service manual
Bürkert 2000 Service Manual

Bürkert 2000 Service Manual

Replacement of valve and seal set conversion of control function
Hide thumbs Also See for 2000:
Table of Contents

Advertisement

Quick Links

Type 2000, 2002, 2012
Replacement of valve and seal set
Conversion of control function
Service Manual

Advertisement

Table of Contents
loading

Related Manuals for Bürkert 2000

Summary of Contents for Bürkert 2000

  • Page 1 Type 2000, 2002, 2012 Replacement of valve and seal set Conversion of control function Service Manual...
  • Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. © Bürkert Werke GmbH & Co. KG, 2015 - 2017 Operating Instructions 1709/15_EU-EN_00804144 / Original DE...

  • Page 3: Table Of Contents

    Type 2000, 2002, 2012 ontent Service manual ..........................5 Symbols ............................5 BaSic Safety inStructionS ......................6 General information ........................7 contact addresses ........................7 Warranty ............................7 information on the internet ......................7 reengineering ..........................7 auxiliary materials ........................7 exploded-vieW draWinG .........................8 replacinG the Seal Set ........................10 5.5.1...
  • Page 4 Seal set actuator ......................35 11.1.2 Valve set ........................36 11.1.3 Valve fittings (Type 2012) ....................37 11.1.4 Seal set swivel plate (Type 2012) ................37 11.1.5 Seal set packing gland (Type 2012) ................37 11.2 conversion sets type 2000 .......................38 11.2.1 Conversion set for modification from CFA to CFB .............38 11.2.2 Conversion set for modification from CFA to CFI ............38 11.2.3 Conversion set for modification from flow above the seat to flow below the seat ..38 11.2.4 Conversion set for modification from flow below the seat to flow above the seat ..38 11.3 conversion sets type 2002 .......................39 11.4 conversion sets type 2012 .......................39...

  • Page 5: Service Manual

    Type 2000, 2002, 2012 Service manual Service manual The service manual describe the procedure for: • Replacement of valve and seal sets of process valves Type 2000, 2002 and 2012. • Conversion of the control function for process valves Type 2000 (angle seat valve) and Types 2002 and 2012 (globe seat valves). Keep these instructions in a location which is easily accessible to every user and make these instructions available to every new owner of the device. Warning! the service manual contain important safety information.

  • Page 6: Basic Safety Instructions

    Type 2000, 2002, 2012 Basic safety instructions BaSic SafeTy inSTrucTionS These safety instructions do not make allowance for any • contingencies and events which may arise during the installation, operation and maintenance of the devices. • local safety regulations; the operator is responsible for observing these regulations, also with reference to the installation personnel. danger – high pressure! ▶ Before loosening the lines and valves, turn off the pressure and vent the lines. risk of electric shock! ▶ Before reaching into the device or the equipment, switch off the power supply and secure to prevent reactivation! ▶ Observe applicable accident prevention and safety regulations for electrical equipment! Risk of burns/risk of fire if used continuously through hot device surface! ▶ Keep the device away from highly flammable substances and media and do not touch with bare hands. General hazardous situations. ▶ The system cannot be activated unintentionally.

  • Page 7: General Information

    Reengineering of Type 2000 and 2012 changes the spare parts. The spare part sets include all spare parts for both valve versions. The reengineered valves are identified by the letter “R” (see the first line of the type label). Identification of Flow 1 2 re-engineered devices 2000 A 50,0 NBR RG G 2 P med 16 bar Pilot 1,6 - 10 bar 00182076 W1X LU Figure 1: Example of a type label with identification “R” for “Re-engineering”...

  • Page 8: Exploded-View Drawing

    Type 2000, 2002, 2012 Exploded-view drawing exploded-vieW draWinG control function a (closed in rest position by spring force) G (R), H (R) Actuator size * S leeve required to reduce the bore hole (for DN50 and above) valve body Type 2000 Type 2002 Type 2012 english...
  • Page 9 Type 2000, 2002, 2012 Exploded-view drawing control function i control function B (dual acting) (opened in rest position by spring force) Actuator size C, control function A Actuator size C, control function B Actuator size C, D, E, F, G, H (without transparent cap) (with transparent cap) Actuator size E (R), F (R) english...

  • Page 10: Replacing The Seal Set

    Type 2000, 2002, 2012 Replacing the seal set replacinG The Seal SeT concerns valves without identification “R” in the actuator sizes: C (40 mm), D (50 mm), E (63 mm), F (80 mm), G (100 mm), h (125 mm) Valves with identification “R” see chapter “6”, page 15. Danger! danger – high pressure! ▶ Turn off the pressure and vent the lines before loosening lines or valves. risk of injury from improper maintenance! ▶ Maintenance may be performed by authorized technicians only! ▶...
  • Page 11 Type 2000, 2002, 2012 Replacing the seal set Caution! danger through taut springs! ▶ Carefully open piston actuator! → Unscrew cover with special wrench holding up the actuator body against the hexagon. Information on the special wrench can be found in chapter “10 Installation tools”. → Only for actuator size G and H: Remove washer 28 29 → Only for control function A: Remove pressure springs → Remove position indicator with Allen key. →...

  • Page 12: Assembly

    Type 2000, 2002, 2012 Replacing the seal set 5.5.2 assembly Rebuild packing gland set based according to the drawing: → Lubricate new wiper with silicone grease OKS 1110-3 and insert into the tube → Lubricate individually chevron seal liberally with silicone grease OKS 1110-3. → Only for actuator size C: Assemble packing gland set in the tube in the right sequence (see detailed drawing). → in the tube in the Only for actuator size D, E, F, G, H: Assemble packing gland set right sequence (see detailed drawing). actuator size c...
  • Page 13 Type 2000, 2002, 2012 Replacing the seal set Only for actuator size C: → Control function A: Place intermediate washer and O-ring on spindle. → , intermediate washer and O-ring on spindle. Control function B: Place pressure spring Only for actuator size D, E: → Control function A and I: Place filler piece and intermediate washer on spindle. → Control function B: Place pressure spring and intermediate washer on spindle. Only for actuator size F, G, H: →...
  • Page 14 Type 2000, 2002, 2012 Replacing the seal set → Only actuator size G, H: Insert washer → For control function B and I: Change O-ring → Replace O-ring to do this, remove transparent cap. → Only actuator size C without transparent cap: Change self-locking ring and O-ring → Lightly lubricate cover thread, lubricant Amblygon TA. → Mount cover and screw tightly with special wrench. → Clamp body Do not damage sealing edges when replacing the seal! → Replace graphite seal → only for va body (VA = stainless steel): Lubricate nipple thread with Klüber paste UH1 96-402.

  • Page 15: Replacing The Packing Gland

    Type 2000, 2002, 2012 Replacing the packing gland replacinG The packinG Gland concerns valves with identification “R” in the actuator sizes: F (80 mm), G (100 mm), h (125 mm) Danger! risk of injury from discharge of medium and release of pressure! ▶ Before removing a device, switch off the pressure and vent the lines! The seal set for the packing gland contains: item description item description...
  • Page 16 Type 2000, 2002, 2012 Replacing the packing gland note! Before the packing gland can be replaced, the actuator must be removed from the valve body and the swivel plate removed. damage to the seat contour! ▶ When removing the actuator, ensure that the valve is in the open position. → Clamp the valve body into a holding device (applies only to valves not yet installed). → For control function A and I: pressurize the lower control air connection with compressed air (5 bar): Valve opens. → Place a suitable open-end wrench on the wrench flat of the nipple → Unscrew actuator on the valve body → Remove compressed air from the control air connection.
  • Page 17 Type 2000, 2002, 2012 Replacing the packing gland Warning! risk of injury from ejected parts! When the spindle opening is exposed, the individual parts of the packing gland are pressed out at an unde- fined speed when the control air connection is pressurized. ▶ Before pressurizing with control air, safeguard the ambient area of the discharge opening (e.g. place spindle on a firm base). → Pressurize the lower control air connection with 6...8 bar. → Grease the individual parts of the new packing gland with the supplied lubricant (silicone grease OKS 1110-3). → Place the individual parts on the spindle in the prescribed direction and sequence. → Push packing gland packing into the tube → Screw in spindle guide again before using the installation wrench. Observe tightening torques (“Table 2”)! Spindle diameter (mm)

  • Page 18: Replacing The Valve Set

    Type 2000, 2002, 2012 Replacing the valve set replacinG The valve SeT Danger! danger – high pressure! ▶ Turn off the pressure and vent the lines before loosening lines or valves. risk of injury from improper maintenance! ▶ Maintenance may be performed by authorized technicians only! ▶ To screw on or unscrew valve body or actuator, use an open-end wrench, never a pipe wrench. ▶ Observe tightening torques. Required parts: item...
  • Page 19 Type 2000, 2002, 2012 Replacing the valve set → Calk pin bores on both sides of the swivel plate with chisel or prick punch. → Carefully remove old graphite seal from the body → Insert new graphite seal → only for va body (VA = stainless steel): Lubricate nipple thread with Klüber paste UH1 96-402.

  • Page 20: Replacing The Valve Seat

    Type 2000, 2002, 2012 Replacing the valve seat replacinG The valve SeaT remove the actuator from the valve body → Clamp the valve body in a holding device. note! damage to the seat seal or the seat contour! ▶ When removing the actuator, ensure that the valve is in open position. → Control function A and I: pressurize the lower control air connection with compressed air (5 bar): valve opens. → Using a suitable open-end wrench, place the wrench flat on the tube. → Unscrew the actuator from the valve body.
  • Page 21 Type 2000, 2002, 2012 Replacing the valve seat tightening torque for installation of seat Screw connection tightening torques (nm) tolerance (nm) dn Seat (mm) dn Body (mm) uncoated seats coated seats 4-15 Table 5: Tightening torque for installation of seat english...

  • Page 22: Conversion Of Control Function

    Depending on the version, the seat of the valve is closed with or against the medium flow. Spring force (CFA) or pneumatic control pressure (CFB and CFI) generate the closing force on the swivel plate. The force is trans- ferred via a spindle which is connected to the actuator piston. the exact description of the control functions can be found in the operating manual for type 2000 under: www.burkert.com. 9.1.1 control function a (cfa) In rest position, the valve is closed by spring force. By pressurizing the lower control connection, the seal...

  • Page 23: Flow Above The Seat

    Type 2000, 2002, 2012 Conversion of control function 9.1.5 flow above the seat The valve is closed by spring force (control function A, CFA) with the medium flow. As the medium pressure is over the swivel plate, it supports the closing process of the valve and also contributes to the sealing of the valve seat. The valve is opened by the control pressure. Figure 8: Flow above the seat (closing with medium) english...

  • Page 24: Conversion From Control Function A (Cfa) To Control Function B (Cfb)

    Type 2000, 2002, 2012 Conversion of control function conversion from control function a (cfa) to control function B (cfB) Danger! danger – high pressure! ▶ Turn off the pressure and vent the lines before loosening lines or valves. risk of injury from improper maintenance! ▶ Maintenance may be performed by authorized technicians only! ▶...
  • Page 25 Type 2000, 2002, 2012 Conversion of control function → Remove pistons with supporting washer → Remove filler piece with intermediate washer and O-ring (filler piece is not required for CFB). → For actuator size G or H and identification “R” on the type label: Insert spring seat → Insert pressure springs → Place intermediate washer and for actuator size C, also lightly lubricated O-ring on spindle. → Insert pistons , lightly greased O-ring (only for actuator sizes D to H) and supporting washer → Wet spindle thread with special adhesive LOCTITE 274 and screw on nut →...

  • Page 26: Conversion From Control Function A (Cfa) To Control Function I (Cfi)

    Type 2000, 2002, 2012 Conversion of control function conversion from control function a (cfa) to control function i (cfi) Danger! danger – high pressure! ▶ Turn off the pressure and vent the lines before loosening lines or valves. risk of injury from improper maintenance! ▶ Maintenance may be performed by authorized technicians only! ▶...

  • Page 27: Conversion From Flow Above The Seat To Flow Below The Seat

    Type 2000, 2002, 2012 Conversion of control function Conversion from flow above the seat to flow below the seat Danger! danger – high pressure! ▶ Turn off the pressure and vent the lines before loosening lines or valves. risk of injury from improper maintenance! ▶ Maintenance may be performed by authorized technicians only! ▶...

  • Page 28: Conversion From Flow Below The Seat To Flow Above The Seat

    Type 2000, 2002, 2012 Conversion of control function Conversion from flow below the seat to flow above the seat Danger! danger – high pressure! ▶ Turn off the pressure and vent the lines before loosening lines or valves. risk of injury from improper maintenance! ▶ Maintenance may be performed by authorized technicians only! ▶...

  • Page 29: Installation Tools

    Type 2000, 2002, 2012 Installation tools inSTallaTion ToolS 10.1 installation wrench for actuator cover Installation wrench for actuator C (40 mm), D (50 mm) actuator ø (mm) order no. 639 175 639 175 Installation wrench for actuator E (63 mm) actuator ø (mm) order no. 639 170 Installation wrench for actuator F (80 mm), G (100 mm), H (125 mm) actuator ø (mm) order no. 639 171...

  • Page 30: Assembly Tools For Packing Gland

    Type 2000, 2002, 2012 Installation tools 10.2 assembly tools for packing gland 10.2.1 assembly sleeve Ø 15 Ø 9 Ø 7 Ø 10 Ø 10 Ø 8 Ø 16 Spindle ø 8 mm Spindle ø 10 mm Spindle ø 16 assembly sleeve for spindle ø...

  • Page 31: Installation Tool For Valve Seat

    Type 2000, 2002, 2012 Installation tools Modified socket wrench for stuffing box (Series from january 2013) actuator ø [mm] Spindle ø [mm] order no. 683 223 683 223 Figure 9: Modified socket wrench 10.3 installation tool for valve seat installation tool for valve seat type 2012 actuator ø (mm) dn valve seat (mm) order no.

  • Page 32: Parts Order

    • Valve set (Type 2000) consists of swivel plate, pin and graphite seal. • Seal set for actuator consisting of the sealing and wearing parts of the actuator. valve set for globe valve type 2002 on request. Type 2000, 2002 Seal set actuator Valve set FKM only for body material red bronze Figure 10: Replacement part sets Type 2000, 2002 english...
  • Page 33 Type 2000, 2002, 2012 Parts order Type 2012, actuator size C to H (40 – 125 mm) • Seal set for actuator consisting of the sealing and wearing parts of the actuator. • Valve set consists of swivel plate, pin and graphite seal. • Valve fittings consists of swivel plate, pin, graphite seal and valve seat. Type 2012, actuator size C to H Seal set actuator Valve set Valve fittings Figure 11: Replacement part sets Type 2012, actuator size C to H (40 – 125 mm)
  • Page 34 Type 2000, 2002, 2012 Parts order Type 2012, actuator size K (175 mm), L (225 mm) • Seal set packing gland consist of wearing parts of the stuffing box, graphite seal. • Valve set consists of swivel plate, pin and graphite seal. • Valve fittings consists of swivel plate, pin, graphite seal and valve seat. • Seal set swivel plate consists of graphite seal, pin and PTFE gasket. Type 2012, actuator size K, L Seal set packing gland Seal set swivel plate Valve set Valve fittings Valve seat Figure 12: Replacement part sets Type 2012, actuator size K (175 mm), L (225 mm)

  • Page 35: Seal Set Actuator

    Type 2000, 2002, 2012 Parts order 11.1.1 Seal set actuator Seal set (SET 5) PPS actuator: actuator size dn valve seat (mm) order no. 10, 15, 20 (Type 2012) 233 581 C (ø 40 mm) 20, 25 (Type 2000, 2002) 288 013 10, 15, 20, 25 (Type 2012) 233 582 D (ø 50 mm) 20, 25 (Type 2000, 2002) E (ø 63 mm)

  • Page 36: Valve Set

    011 046 011 107 233 819 233 821 233 820 233 822 Table 7: SET 6 – valve set red bronze body Type 2000 Stainless steel body, SET 6 (2/2-way valve Type 2000, 2012): actuator size dn valve seat (mm) order no. order no. (Ø in mm) (ptfe seal)

  • Page 37: Valve Fittings (Type 2012)

    Type 2000, 2002, 2012 Parts order 11.1.3 Valve fittings (Type 2012) actuator size dn valve seat (mm) order no. (Ø in mm) 10/15 149 608 149 864 161 376 149 786 149 787 149 788 237 390 237 391 155 487...

  • Page 38: Conversion Sets Type 2000

    Type 2000, 2002, 2012 Parts order 11.2 conversion sets Type 2000 11.2.1 Conversion set for modification from CFA to CFB actuator ø (mm) order no. 229 900 012 090 011 946 011 955 011 957 G (R) 276 318 011 964...

  • Page 39: Conversion Sets Type 2002

    Type 2000, 2002, 2012 Parts order 11.3 conversion sets Type 2002 Conversion kits for the globe valve Type 2002 on request. 11.4 conversion sets Type 2012 11.4.1 Conversion set for modification from CFA to CFB or CFI actuator ø (mm) order no. 012 090 011 946 011 955 011 957 011 964 11.4.2...
  • Page 41 www.burkert.com...
