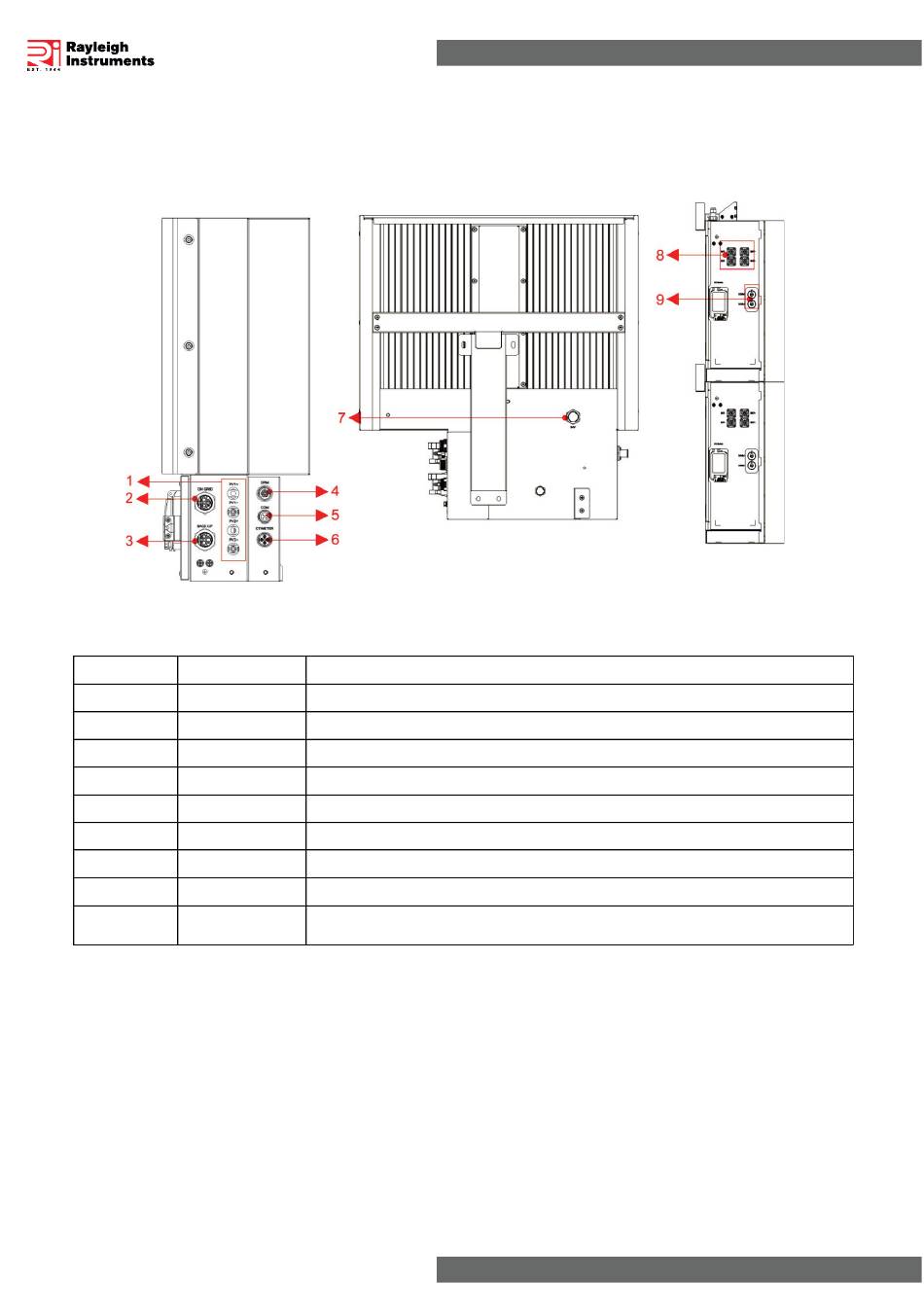

External Connections
Using the connectors described in the Getting Started section within this guide, proceed to connect the applicable items described
in the below table. Connect the included WIFI module to the COM connector. All wiring must be performed in accordance with local
wiring regulations.
Object Designation
1
2
3
4
5
6
7
8
9
Telephone : +44 (0) 1245 428500
Email : sales@rayleigh.com
PV1, PV2
ON GRID
BACKUP
DRM
COM
Connection for external Current transformer or Modbus meter input
CT/METER
INV
BAT+,BAT-
2 x RJ45 ports for daisy chaining additional battery module
2x RJ45
RI-ENERGYFLOW-MODULAR SERIES
Description
Connection for PV panels
AC Grid tied connection
AC Output for up to 16A regardless of grid tied status
DRM Interface (Demand response management)
RS485 communications port
st
1 battery module communications port
Positive and negative battery connections
communications
