Inverter Installation

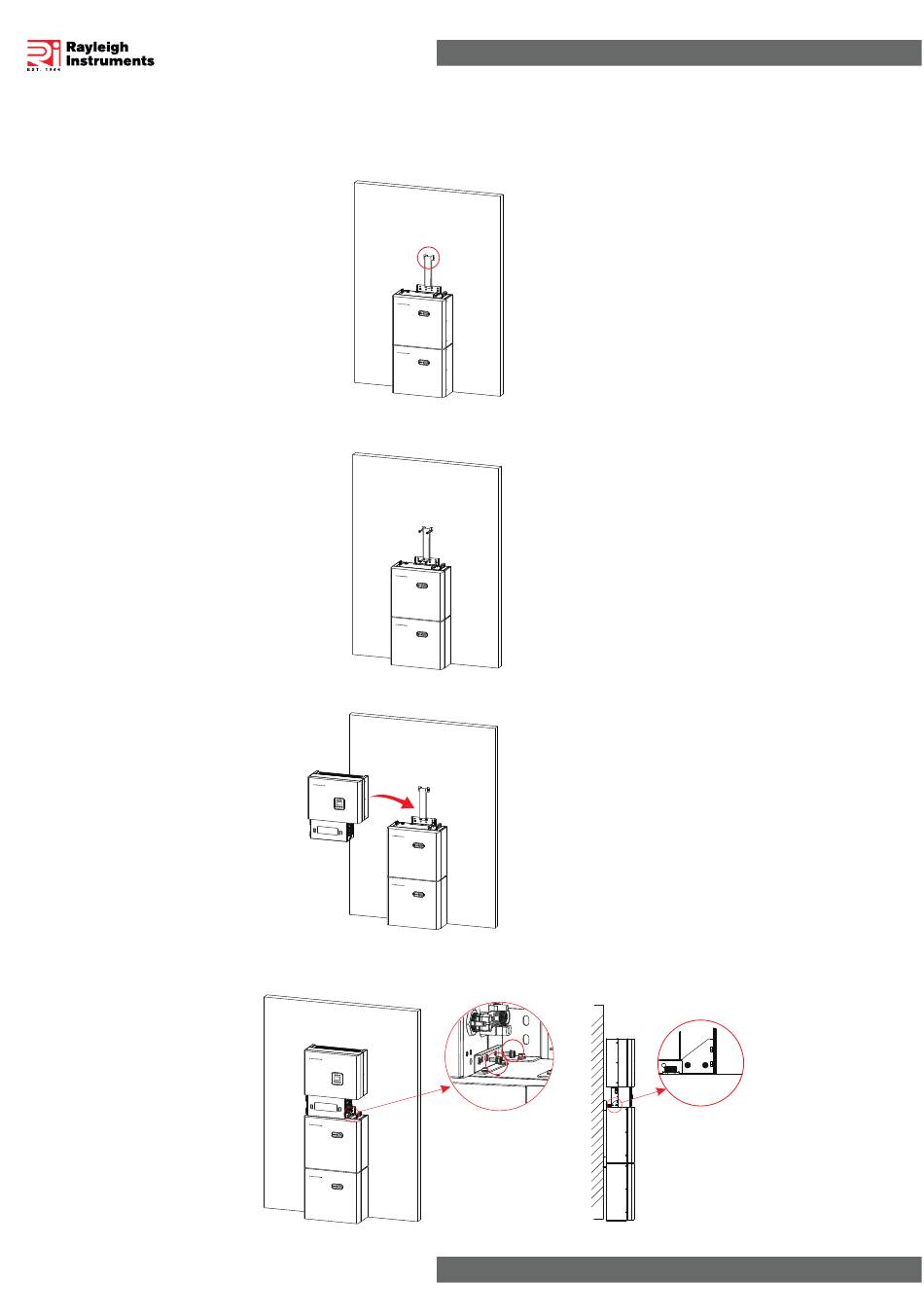

Step 1: Place the wall mounting bracket included with the inverter against the wall and mark the two top holes. Using an 8mm
masonry drill bit, drill 2 x holes approximately 70mm depth. Gently tap supplied nylon wall plugs in to the holes.
Step 2: Remove any debris. Secure the inverter bracket to the wall using the supplied screws (2 from battery installation + washers for
the bottom holes and 2 without washers for the top holes).
Step 3: Fit the inverter on to the bracket. Take care to ensure the rear tang correctly engages with the bracket.
Step 4: Loosely fit the 4xM5x12mm screws through the battery brackets in to the inverter. Before tightening the screws position the
inverter so that the removable inverter cover fits flush with the battery front panel(s). Do not fit the cover at this stage.
