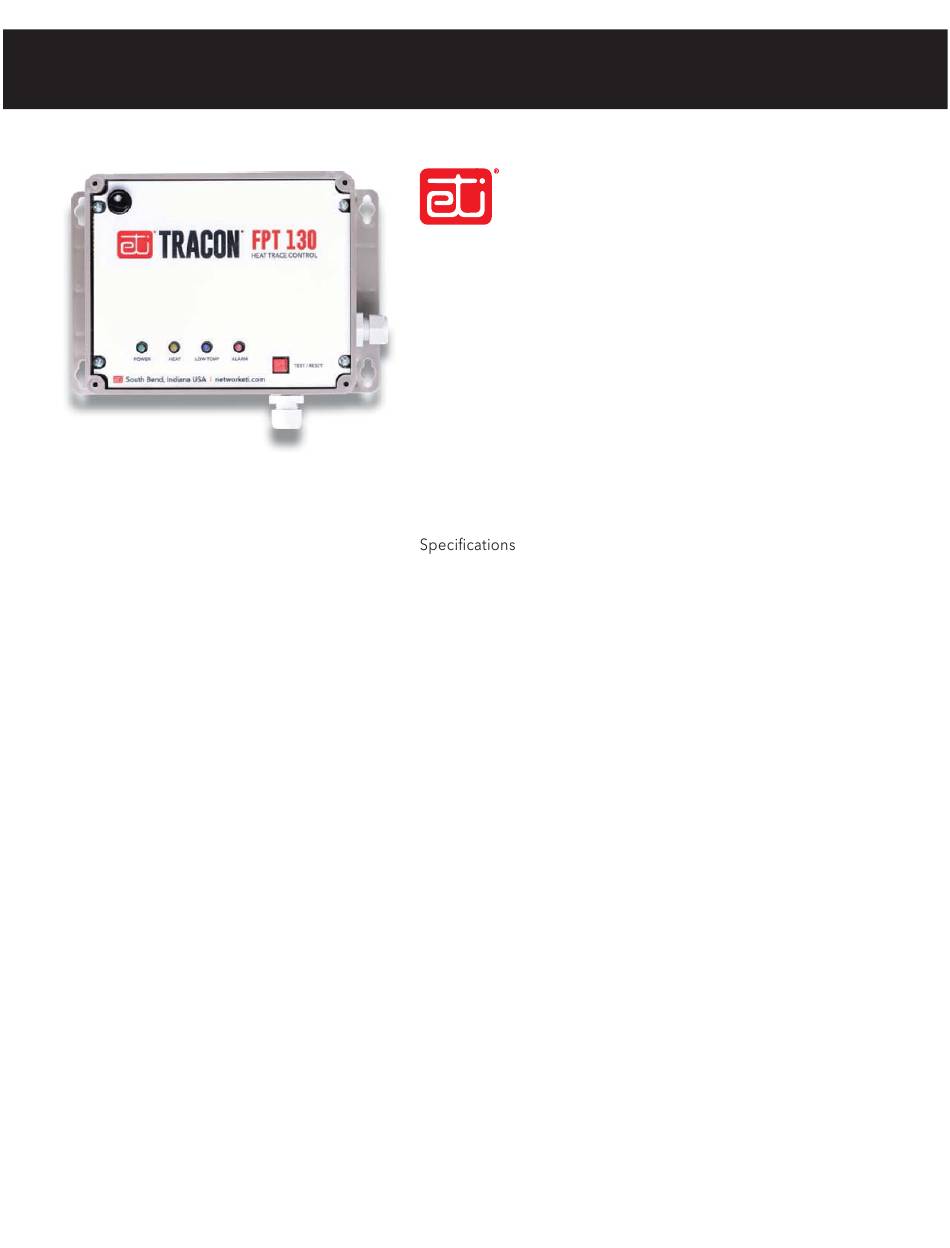

ETI TRACON FPT-130 Quick Start Manual

Single–point freeze protection heat–trace control
Hide thumbs Also See for TRACON FPT-130:

Advertisement

Quick Links

Heat Tracing Sales
South Bend, Indiana USA
Heat Tracing Sales
Mt. Airy, MD
|
networketi.com
Mt. Airy, MD
(410) 795-2223
TRACON
SINGLE–POINT FREEZE PROTECTION HEAT–TRACE CONTROL
TABLE OF CONTENTS
FPT 130 Overview.................................................................................... 2
Installation ................................................................................................ 3
Power Source and Load Connections................................................... 4
Temperature Sensor ................................................................................ 5
External Alarm .......................................................................................... 5
Dip Switches ............................................................................................. 6
Operation ................................................................................................. 7
........................................................................................... 9
Pilot Duty
The FPT 130 General Purpose Thermostat with GFEP cannot be used
for Pilot Duty applications.
Devoir du pilote
Le thermostat à usage général FPT 130 avec GFEP ne peut pas être
utilisé pour les applications Pilot Duty
Resistive Load Usage Only
This product is not for use with Inductive loads. Inductive loads may
create nuisance tripping of the Ground–Fault Equipment Protection
circuit.
Utilisation de charge résistive uniquement
Ce produit n'est pas destiné à être utilisé avec des charges inductives.
Les charges inductives peuvent créer un déclenchement intempestif
du circuit de protection de l'équipement contre les défauts à la terre.
Abnormal Odor or Smoke
In the event of smoke or a burning or abnormal odor, immediately
interrupt power to the unit by turning off the circuit breaker protecting
the unit.
FPT-130 INSTALLATION MANUAL | PART NO.
(410) 795-2223
www.heattracingsales.com
MODEL FPT-130
®
www.heattracingsales.com
25165
REV
F

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRACON FPT-130 and is the answer not in the manual?

Questions and answers

Summary of Contents for ETI TRACON FPT-130

  • Page 1 Heat Tracing Sales Mt. Airy, MD (410) 795-2223 www.heattracingsales.com TRACON MODEL FPT-130 ® SINGLE–POINT FREEZE PROTECTION HEAT–TRACE CONTROL TABLE OF CONTENTS FPT 130 Overview..................2 Installation ....................3 Power Source and Load Connections........... 4 Temperature Sensor ................5 External Alarm ..................5 Dip Switches .....................
  • Page 2 OVERVIEW électrique doit être mise à la terre pour se protéger contre les chocs et les risques d’incendie. Des systèmes The TRACON FPT-130 Heat–Trace Control is a appropriés de détection et d’interruption des défauts à la microprocessor–based heat–trace control thermostat.
  • Page 3 Heat Tracing Sales Mt. Airy, MD (410) 795-2223 www.heattracingsales.com controller and heater load are powered from the same supply connection. The internal load contactor are rated to switch up to 30 A resistive. The GFEP function provides additional safety and compliance with national and local electrical codes.
  • Page 4 Heat Tracing Sales Mt. Airy, MD (410) 795-2223 www.heattracingsales.com INSTALLATION The FPT 130 Automatic Heat–Trace Control should be Use only Listed Type 4X IP66 liquid–tight conduit hubs or cable glands. Connect the hub to the conduit system before connecting the hub to the enclosure. must conform to all applicable local and national electrical codes and laws.
  • Page 5 Heat Tracing Sales Mt. Airy, MD (410) 795-2223 www.heattracingsales.com FIGURE 2. Mounting dimensions COVER SCREWS Max Torque = 4 In-Lbs FPT 130 HEAT TRACE CONTROL POWER HEAT LOW TEMP ALARM TEST / RESET POWER SOURCE AND CONTACTOR CONNECTIONS Supply Voltage The FPT 130 operates from 100 –...
  • Page 6 Heat Tracing Sales Mt. Airy, MD (410) 795-2223 www.heattracingsales.com FIGURE 4. Connection Schematic FIGURE 5. Thermistor sensor connection Wiring to Normally Closed alarm contact TEMPERATURE SENSOR Thermistor (25076) The FPT 130 comes with a thermistor temperature sensor with a 20 ft. jacketed cable that has an operating range proper wiring for the thermistor sensor.
  • Page 7 Heat Tracing Sales Mt. Airy, MD (410) 795-2223 www.heattracingsales.com DIP SWITCH SETTINGS FIGURE 7. FPT 130 Note: The DIP switches are read at power-up. If any DIP switch is changed while the unit is on, then the power needs to be turned off and on again for the new setting to take effect.
  • Page 8 Pushbuttons • TEST/RESET pushbutton – This red pushbutton has the The FPT 130 features ETI’s patented self–testing GFEP, following functions: which switches the system off when it detects excessive – To test the ground fault detector circuit itself AND...
  • Page 9 Heat Tracing Sales Mt. Airy, MD (410) 795-2223 www.heattracingsales.com DISABLING THE LOW TEMP ALARM LED The blue LOW TEMP alarm LED indicates the presence of • The blue LED will indicate whether the LOW TEMP Low Temperature, High Temperature, or a bad thermistor. Alarm is currently disabled or not.
  • Page 10 Heat Tracing Sales Mt. Airy, MD (410) 795-2223 www.heattracingsales.com SPECIFICATIONS General User Interfaces UL 60730–1, UL 1053, Pushbuttons Test/Reset CSA E60730–1:13 DIP switches Temperature setpoint Environmental Thermistor fault mode Fire protection mode Area of use Nonhazardous locations Remote Interface Operating temperature range Alarm relay Isolated SPDT 1 AMP Class 2 Enclosure...
  • Page 11 Prior to removal of equipment for in this publication, without the obligation of ETI to notify warranty return, please contact ETI Technical Support for any person or organization of such revisions, changes or troubleshooting assistance.
