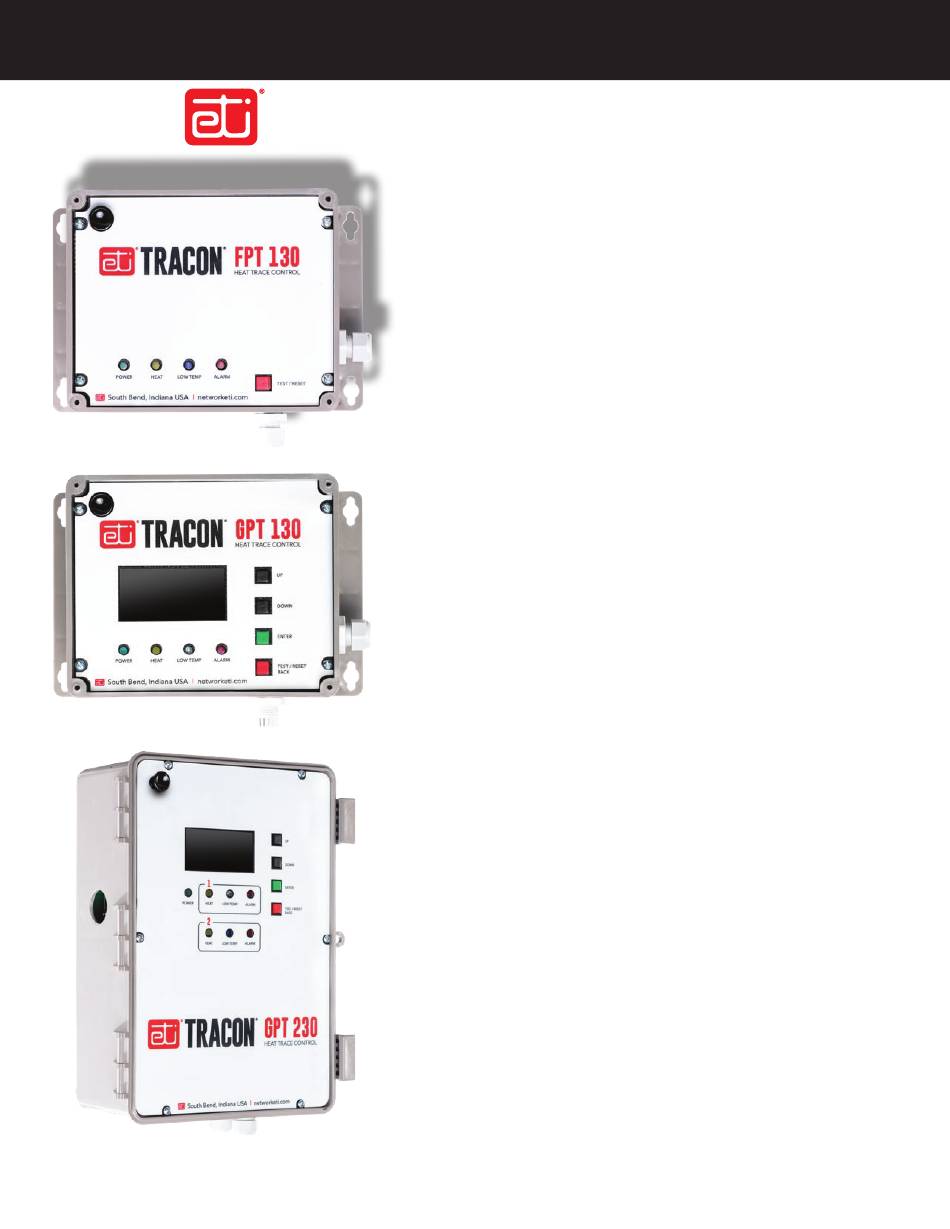

FPT/GPT PCB REPLACEMENT KIT MANUAL
TRACON
MODEL FPT-130
®
SINGLE–POINT FREEZE PROTECTION HEAT–TRACE CONTROL
REPLACEMENT KIT
TRACON
MODEL GPT-130
®
SINGLE–POINT HEAT–TRACE CONTROL THERMOSTAT
REPLACEMENT KIT
TRACON
MODEL GPT-230
®
DUAL–POINT HEAT–TRACE CONTROL THERMOSTAT
REPLACEMENT KIT
TABLE OF CONTENTS
Items Included......................................................................................... 2
Installation of FPT130 board kit............................................................ 3
Installation of GPT130 board kit........................................................... 5
Installation of GPT230 board kit........................................................... 7
Ordering & Misc Information................................................................. 9
South Bend, Indiana USA
|
networketi.com
FPT/GPT PCB REPLACEMENT MANUAL | PART NO.
25594
REV
A
Advertisement
Table of Contents
Related Manuals for ETI TRACON FPT-130
Summary of Contents for ETI TRACON FPT-130
- Page 1 FPT/GPT PCB REPLACEMENT KIT MANUAL TRACON MODEL FPT-130 ® SINGLE–POINT FREEZE PROTECTION HEAT–TRACE CONTROL REPLACEMENT KIT TRACON MODEL GPT-130 ® SINGLE–POINT HEAT–TRACE CONTROL THERMOSTAT REPLACEMENT KIT TRACON MODEL GPT-230 ® DUAL–POINT HEAT–TRACE CONTROL THERMOSTAT REPLACEMENT KIT TABLE OF CONTENTS Items Included..................2 Installation of FPT130 board kit............
-
Page 2: Items Included
ITEMS INCLUDED PLEASE NOTE: GPT/FPT printed circuit boards were completely revised in July 2019. When replacing boards on units purchased prior to July 2019, all boards need to be replaced. The new ones are not backward compatible with the older boards. South Bend, Indiana USA networketi.com FPT/GPT PCB REPLACEMENT MANUAL | PART NO. - Page 3 INSTALLATION OF FPT130 BOARD SET 25175 PCB ASSY FPT130 CONTROL BOARD 25132 GPT RELAY BOARD REMOVE POWER FROM UNIT BEFORE ATTEMPTING TO REPLACE BOARD SET. • • Remove the clear plastic cover and front panel from the FPT130 and set the 1/2 plastite screws to one side for later installation.
- Page 4 • Remove old control board by removing the four mounting screws, power supply connector and disconnecting the ribbon cable from the GPT RELAY BOARD. • Install the new control board and install the four mounting screws, hand tight. • Re-install the power connector. •...
- Page 5 INSTALLATION OF GPT130 BOARD SET 25130 PCB ASSY GPT130 CONTROL BOARD 25132 GPT RELAY BOARD REMOVE POWER FROM UNIT BEFORE ATTEMPTING TO REPLACE BOARD SET. • • Remove the clear plastic cover and front panel from the GPT130 and set the 1/2 plastite screws to one side for later installation.
- Page 6 FPT130 Thermistor Fault FPT130 Heat On Point Heat Off • Remove old control board by removing the four mounting screws, power supply connector and disconnecting the ribbon cable from the GPT RELAY BOARD. • Install the new control board and install the four mounting screws hand tight.
- Page 7 • Remove the old GPT RELAY BOARDS by removing the screws circled in red (picture next page) and set the screws aside for later use. • Remove and set aside the old boards to be returned to ETI or disposal. • Install the new GPT RELAY BOARDS and re-install all mounting screws hand tight.
- Page 8 25132 GPT RELAY BOARDS South Bend, Indiana USA networketi.com FPT/GPT PCB REPLACEMENT MANUAL | PART NO. 25594...
-
Page 9: Ordering Information
For assistance, contact Customer Service. Office hours are in this publication, without the obligation of ETI to notify from 8:00 AM until 5:00 PM ET. any person or organization of such revisions, changes or Email: info@networketi.com...
