Summary of Contents for MSI MEGA MPC 945

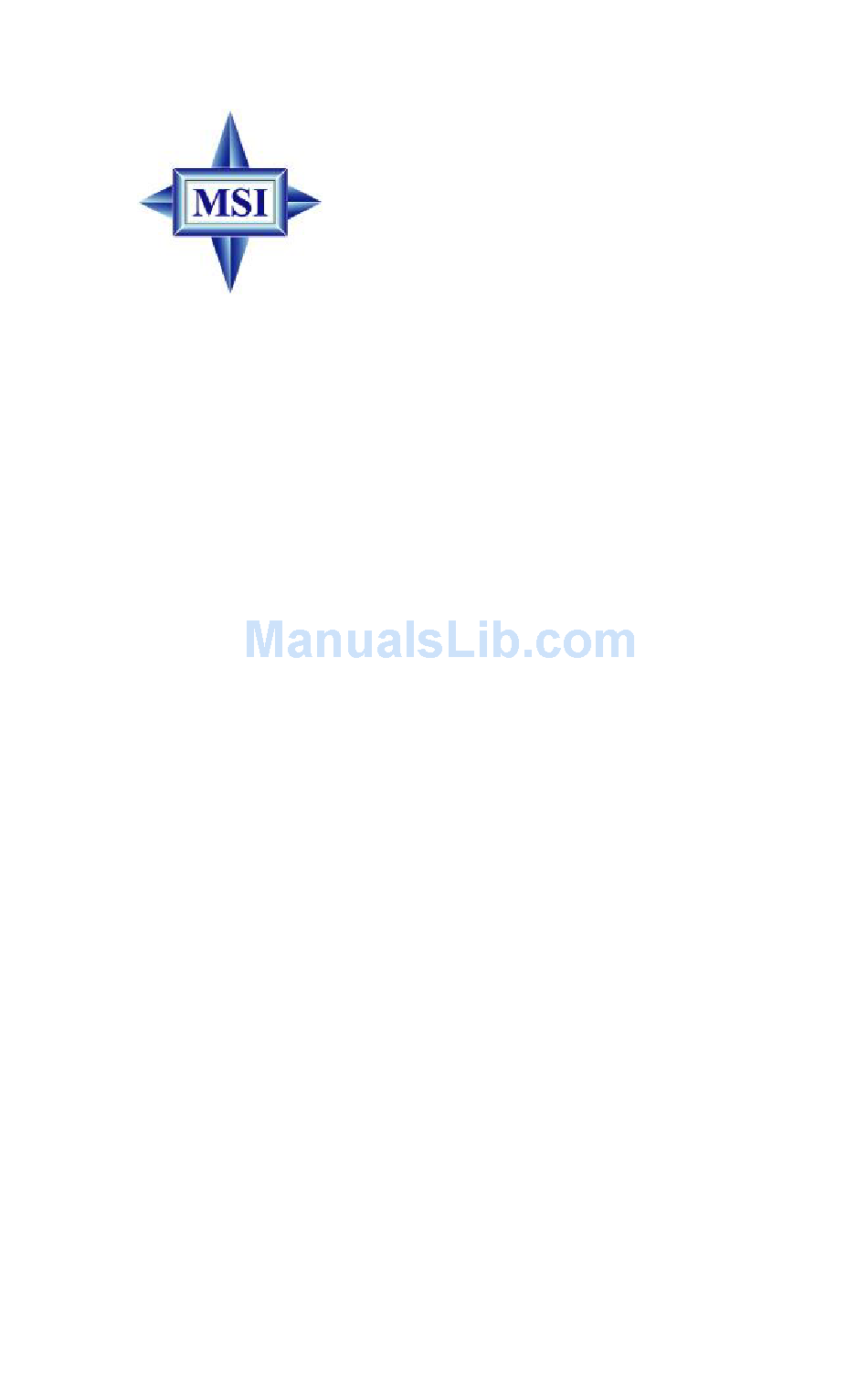

- Page 1 MEGA mPC 945 User’s Guide G52-B6404X1...
-
Page 2: Fcc-B Radio Frequency Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interfer ence that may cause undesired operation. Micro-Star International MEGA mPC 945... -
Page 3: Revision History
Trademarks All trademarks are the properties of their respective owners. ® ® Intel and Pentium are registered trademarks of Intel Corporation. ® PS/2 and OS /2 are registered trademarks of International Business Machines Corporation. ® W indows 95/98/2000/NT/XP are registered trademarks of Microsoft Corporation. ®... -
Page 4: Safety Instructions
Always read the safety instructions carefully. Keep this User’s Manual for future reference. Keep this equipment away from humidity. Lay this equipment on a reliable flat surface before setting it up. The openings on the enclosure are for air convection hence protects the equipment from overheating. - Page 5 CAUT ION: Danger of explos ion if battery is inc orrec tly replac ed. Replace only with the same or equivalent type recommended by the manufacturer. Warning: 1. For every changes in powercordˇ¦s usage, please use an approved power cord with condition greater or equal to H05VV-F,3G , 0.75mm 2.
-
Page 6: Weee Statement
WEEE Statement... - Page 8 viii...
-
Page 9: Table Of Contents
Chapter 1. Getting Started ... 1-1 1.1 All-in-one Feature Set ... 1-2 1.2 System Specifications ... 1-4 1.3 System Configuration ... 1-6 Chapter 2. Mainboard Hardware ... 2-1 2.1 Mainboard layout ... 2-2 2.2 CPU ... 2-3 2.3 Memory ... 2-3 Introduction to DDR2 SDRAM ... - Page 10 PCI Slot ... 2-18 Mini PCI Slot ... 2-18 Chapter 3. System Assembly ... 3-1 3.1 Overview ... 3-2 3.1.1 Installation Flowchart ... 3-2 3.1.2 Checking the Items ... 3-3 3.2 Removing Cover ... 3-4 3.3 Removing Drive Cage ... 3-5 3.4 Installing CPU ...
- Page 11 Microphone ... 5-10 3D Audio Demo ... 5-11 Information ... 5-12 5.3 Using 2/4/6/8 Channel Audio Function ... 5-13...
-
Page 12: Chapter 1. Getting Started
Getting Started 1.1 All-in-one Feature Set 1.2 System Specifications 1.3 System Configuration... -
Page 13: All-In-One Feature Set
1.1 All-in-one Feature Set The MEGA mPC 945 implements the powerful computing multimedia perfor- mance and a screw-less chassis design for your easy operation and assembly. The whole idea behind the all-in-one feature allows you to use a PC as an entertainment center in a small form factor. - Page 14 7-in-1 Card Reader - MEGA mPC 945 is equipped with a 7-in-1 card reader. It supports CF, MS, SmartMedia, SD, MMC, MS-Pro and MicroDrive. You can easily read photos or other files on the memory card.
-
Page 15: System Specifications
- MS-7196 (Proprietary F/F), 310.1 x 192 mm - Support Socket 775 for Intel Prescott/Pentium 4 D CPU (For the latest information about CPU, please visit our Web site at http://www.msi.com.tw/program/products/slim_pc/slm/pro_slm_cpu_support.php) Chipset - Intel Lakeport 945G and ICH7 M emory - Support Dual Channel DDR2 533/667 x 2, maximum size up to 2.0GB... - Page 16 BIOS - 4Mb Flash Security - Protect the data from unauthorized access through two levels of BIOS access (BIOS Setting Password) Others ® - Microsoft PC 2001 - ACPI States Supported: S0, S1, S3 (STR), S4 (STD), S5 (Soft Off) - WOL from S1/S3/S4/S5 Chapter 1 - Getting Started...
-
Page 17: System Configuration
1.3 System Configuration Front Panel Optical Drive HDD LED Optical Drive Eject/Close Button IEEE 1394 port (4-pin) IEEE 1394 port (6-pin) W ireless Antenna Mic-in Headphone-out USB ports SPDIF in PC Power Switch 7 in 1 Card Reader... - Page 18 Back Panel Power Jack Ventilation hole Power Switch Serial Port PS/2 Mouse 7.1 Audio Ports PS/2 Keyboard Chapter 1 - Getting Started W ireless Antenna USB x 4 SPDIF out After the installation is completed, please keep other objects away from the ventilation hole at least 2.5cm and above.
-
Page 19: Chapter 2. Mainboard Hardware
Mainboard Hardware 2.1 Mainboard Layout 2.2 CPU 2.3 Memory 2.4 Power Supply 2.5 Front Panel 2.6 Back Panel 2.7 Connectors 2.8 Jumper 2.9 Slots... -
Page 20: Mainboard Layout
2.1 Mainboard layout MS-7196 v1.X Mainboard... -
Page 21: Cpu
CPU, make sure the CPU has a heat sink and a cooling fan attached on the top to prevent overheating. Remember to peel off the sticker before you install the CPU cooler. (For more information about the CPU, please visit http://www.msi.com.tw/program/ products/slim_pc/slm/pro_slm_cpu_support.php) MSI Reminds You... -
Page 22: Introduction To Ddr2 Sdram
Introduction to DDR2 SDRAM DDR2 is a new technology of memory module, and its speed is the top limit of current DDR1 technology. DDR2 uses a 1.8V supply for core and I/O voltage, compared to 2.5V for DDR1, and requires 28% less power than DDR1 chips. DDR2 truly is the future of memory, but will require some changes as the technology is not backwardly compatible and only motherboards specifically designed for DDR2 memory will be able to support these chips. -
Page 23: Power Supply
2.4 Power Supply The system is equipped with a 260W (PFC) ATX power supply. The power cord of the power supply has been connected to the connector ATX1 on the mainboard when shipped out. Except the 20-pin connector ATX1, you can find another 4-pin power connector JPW 1 on the mainboard. -
Page 24: Front Panel
USB by providing enhanced PC connectivity for a wide range of devices, including consumer electronics audio/video (A/V) appliances, storage peripherals, other PCs, and portable devices. MSI Reminds You... IEEE 1394 Driver is provided by Windows ® Windows ME and Windows into the port. -
Page 25: 6-Pin Ieee 1394 Port
6-pin IEEE 1394 Port The bigger 6-pin IEEE 1394 Port on the front panel is designed for you to connect to IEEE 1394 devices without external power. That means the mainboard can provide the power for the devices connected to this port. USB Ports The mainboard provides a UHCI (Universal Host Controller Interface) Universal Serial Bus root for attaching USB devices such as keyboard, mouse or other USB-... -
Page 26: Mic-In/Head-Phone
Mic-in/Head-Phone Mic-in is a connector for microphone. Head-Phone is a connector for Speakers or Headphones. OPTICAL SPDIF-in The OPTICAL connector allows you to receive the audio file of SPDIF interface for recording. The SPDIF (Sony & Philips Digital Interface) is developed jointly by the Sony and Philips corporations . -
Page 27: Back Panel
2.6 Back Panel The Back Panel provides the following ports: PS/2 M ouse RS-Out Line-In Line-Out Mic-in CS-Out SS-Out PS/2 Keyboard Serial Port The mainboard offers a 9-pin male DIN serial port . The port is 16550A high speed communication ports that sends/receives 16 bytes FIFOs. You can attach a serial mouse or other serial devices directly to the connector. -
Page 28: Mouse/Keyboard Connectors
Mouse/Keyboard Connectors The mainboard provides two standard mini DIN connectors for attaching PS/2 mouse and keyboard. You can plug a PS/2 connector. PS/2 Mouse (6-pin Female) PS/2 Keyboard (6-pin Female) VGA Port The mainboard provides one DB 15-pin female connector to connect a monitor. DB 15-Pin Female Connector ®... -
Page 29: Rj45 Lan Jack
RJ45 LAN Jack The mainboard provides one standard RJ-45 jack for connection to Local Area Network (LAN). You can connect a network cable to the LAN jack. RJ-45 LAN Jack Audio Port Connectors The left 3 audio jacks are for 2-channel mode for stereo speaker output: Line Out is a connector for Speakers or Headphones. -
Page 30: Usb Ports
USB Ports The mainboard provides a UHCI (Universal Host Controller Interface) Universal Serial Bus root for attaching USB devices such as keyboard, mouse or other USB- compatible devices. You can plug the USB device directly into the connector. The mainboard supports USB1.1 & 2.0 devices. USB Ports USB Port Description SIGNAL... -
Page 31: Connectors
2.7 Connectors IDE Connector: PIDE1 The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100 control- ler that provides PIO mode 0~4, Bus Master, and Ultra DMA/33/66/100 function. The one connector on the mainboard allows you to connect to two IDE devices. PIDE1 Serial ATA Connectors: SATA1/2 The mainboard provides the connectors to connect the hard disk of Serial ATA... -
Page 32: Card Reader Connector: Cr1
Card Reader Connector: CR1 The mainboard provides a connector to connect the Card Reader on the Front Panel. CPU Fan Connectors: CPUFAN1/SYSFAN1 The CPU Fan/System Fan connectors support system cooling fans with +12V that is controlled by PWM. W hen connecting the wire to the three-pin head connectors, always note that the red wire is the positive and should be connected to the +12V (that is controlled by PWM), the black wire is Ground and should be connected to GND. -
Page 33: Front Board Connector: Lcm1
Front Board Connector: LCM1 The connector is used to connect the front board on the front panel. Signal MP_RTS MP_DTR IR or RST# CD_SMI# VCC5 MP_CTR_PWRON IDE_LED PLED1 PLED2 BASS_DETECT Front USB Connector: USB1 The mainboard provides one standard USB 2.0 pin header to connect to the fornt MCE IR for remote control. -
Page 34: Jumper
Jumper ) to clear data. Follow the instructions below to clear the data: JBAT1 MSI Reminds You... You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid clearing the CMOS while the system is on;... -
Page 35: Slots
PCI Express architecture provides a high performance I/O infrastructure for Desktop Platforms with transfer rates starting at 2.5 Giga transfers per second. Also, desktop platforms with PCI Express Architecture will be designed to deliver highest performance in video, graphics, multimedia and other sophisticated applications. -
Page 36: Pci Slot
PCI Slot The PCI slot allows you to insert PCI card or TV Tuner card. or removing expansion cards, make sure that you unplug the power supply first. Meanwhile, read the documentation for the expansion card to make any necessary hardware or software settings. -
Page 37: Chapter 3. System Assembly
System Assembly 3.1 Overview 3.2 Removing Cover 3.3 Removing Drive Cage 3.4 Installing CPU 3.5 Installing CPU Cooler 3.6 Installing DRAM 3.7 Installing WLAN Card (Optional) 3.8 Installing WLAN Antenna (Optional) 3.9 Installing HDD 3.10 Installing Optical Drive 3.11 Restoring Drive Cage 3.12 Restoring Cover... -
Page 38: Overview
3.1 Overview This product is shipped out as a bare bone. Some components are equipped while some are optional. See the following for the standard and optional items: Mainboard, Power Supply, Case, Cables, Cooler, Standard Card Reader, Driver CD, Manual This manual provides you with the information of system setup. -
Page 39: Checking The Items
Before starting the assembling, check the items you need. Optical Drive Intel P4 LGA775 Prescott CPU & Cooler MSI Reminds You... The chassis and devices shown on the installation photos are for your reference only. The actual products may vary in chassis color, front bezel and other component. -
Page 40: Removing Cover
3.2 Removing Cover Loose the three thumb screws on the back panel. Remove the chassis cover. -
Page 41: Removing Drive Cage
Chapter 3 - System Assembly 3.3 Removing Drive Cage Locate the drive cage. Lift the handle up- ward and pull the drive cage to an upright position. Push the locking clip to the right side to lock the drive cage in an upright position. Release the cable tie. -
Page 42: Installing Cpu
3.4 Installing CPU Locate the CPU socket and take off the protecting cover. Pull the lever away from the socket and raise it up. Put the CPU onto the socket. Make sure the pins are completely embedded into the socket. The CPU can only fit in the correct direction. -
Page 43: Installing Cpu Cooler
Chapter 3 - System Assembly 3.5 Installing CPU Cooler Insert the cooler into the barebone and put it onto the CPU. Use the screw driver to secure four built-in screws following the indicated order (1--> 2--> 3 --> 4). Connect the power cord. -
Page 44: Installing Dram
3.6 Installing DRAM Insert the DDR DIMM vertically into the slot. Note: The DIMM has only one notch on the module. It will only fit in the right direction. The plastic clip at each side of the DIMM slot will automatically close. -
Page 45: Installing Wlan Card (Optional)
Chapter 3 - System Assembly 3.7 Installing WLAN Card (Optional) Locate the miniPCI slot on the mainboard. Insert the W ireless LAN card into the miniPCI slot with 15 degree and push vertically to fix it. Connect the antenna cable to the con- nector on the W LAN card. -
Page 46: Installing Wlan Antenna (Optional)
3.8 Installing WLAN Antenna (Optional) Release the antenna and the screw from the package kit. Put the screw base through the antenna hole on the backplane. Lock the screw and the antenna on the screw base. Fix the antenna line on the clips on the mainboard. -
Page 47: Installing Hdd
Chapter 3 - System Assembly 3.9 Installing HDD Push the lock bracket to the right side. Remove the HDD tray from the drive cage. Push the brackets outwards as the picture s hown. Insert the SATA or IDE HDD module into the HDD tray. -
Page 48: Installing Optical Drive
Pull the lock brackets outwards before you can insert the CD-ROM drive into the CD-ROM tray. MSI Reminds You... Please note that our specially designed chassis is not compatible with any optical drive with convex front bezel. (Recommended: For easy assembly and normal operation, use the optical drive with flat front panel.) -
Page 49: Restoring Drive Cage
Chapter 3 - System Assembly 3.11 Restoring Drive Cage Push the lock bracket back to secure the HDD cage. Lift the white clips on both sides. Align the drive cage’s screw with the chassis’ screw hole. Slide the drive cage into the chassis. Restore the black plastic plate to the HDD tray and push to seize on it. -
Page 50: Restoring Cover
3.12 Restoring Cover Place the whole drive cage into the chassis and push the handle back. Restore the chassis cover and remem- ber to fasten the screws on the back panel. 3-14... -
Page 52: Chapter 4. Bios Setup
BIOS Setup 4.1 Entering Setup 4.2 The Main Menu 4.3 Standard CMOS Features 4.4 Advanced BIOS Features 4.5 Advanced Chipset Features 4.6 Integrated Peripherals 4.7 Power Management Setup 4.8 PnP/PCI Configurations 4.9 H/W Monitor 4.10 Load Fail Safe/Optimized De- 4.11 Set Supervisor/User Password faults... -
Page 53: Entering Setup
Press <Esc> to exit the Help screen. MSI Reminds You... The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only. -
Page 54: The Main Menu
Chapter 4 - BIOS Setup 4.2 The Main Menu Once you enter BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from eleven setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu. - Page 55 Load Fail-Safe Defaults Use this menu to load factory default settings into the BIOS for stable system perfor- mance operations. Load Optimized Defaults Use this menu to load the BIOS values for the best system performance, but the system stability may be affected. Set Supervisor Password Use this menu to set the supervisor password for BIOS.
-
Page 56: Standard Cmos Features
Chapter 4 - BIOS Setup 4.3 Standard CMOS Features The items in Standard CMOS Features Menu are divided into 9 categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item. - Page 57 IDE HDD Auto-Detection Press Enter to auto detect the HDD’s size, head...on this channel. IDE Primary/Secondary M aster/Slave Press Enter to select Manual or Auto type. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category.
-
Page 58: Advanced Bios Features
These items allow you to set the sequence of boot devices where BIOS attempts to load the operating system. MSI Reminds You... Available settings for “1st/2nd/3rd Boot Device” vary depending on the bootable devices you have installed. For example, if you did not install a floppy drive, the setting “Floppy”... - Page 59 Quick Boot Setting the item to [Enabled] allows the system to boot fast since it will skip some check items. Available options: [Enabled], [Disabled]. Full Screen Logo Display This item enables you to show the company logo on the bootup screen. Settings are: [Enabled] Shows a still image (logo) on the full screen at boot.
-
Page 60: Advanced Chipset Features
4.5 Advanced Chipset Features MSI Reminds You... Change these settings only if you are familiar with the chipset. PEG/Onchip VGA Control This setting determines whether the system RAM can be allocated to on-chip video controller for video purposes. W hen setting to Enabled, up to 128MB system RAM will be allocated to on-chip video controller. -
Page 61: Integrated Peripherals
4.6 Integrated Peripherals USB Controller This setting is used to enable/disable the onboard USB host controller. Setting options: [Disabled], [Enabled]. USB 2.0 Controller This setting is used to enable/disable the onboard USB 2.0 host controller. Setting options: [Disabled], [Enabled]. USB Keyboard Support Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard. - Page 62 COM Port 1 These items specify the base I/O port addresses of the onboard Serial Port 1 (COM 1). Selecting [Auto] allows BIOS to automatically determine the correct base I/O port address. Settings: [3F8/IRQ4], [2F8/IRQ3], [3E8/IRQ4], [2E8/IRQ3] and [Disabled]. IDE Devices Configuration Press <Enter>...
-
Page 63: Power Management Setup
4.7 Power Management Setup APIC Function This field is used to enable or disable the APIC (Advanced Programmable Interrupt Controller). Due to compliance with PC2001 design guide, the system is able to run in APIC mode. Enabling APIC mode will expand available IRQ resources for the system. Settings: [Enabled], [Disabled]. - Page 64 Wakeup Event Setup Press <Enter> and the following sub-menu appears: Resume by PCI-E Device This controls how and whether the system can be powered on by the devices installed on PCI-E slots. Setting options: [Disabled], [Enabled]. Resume by PCI Device (PME#) When setting to [Enabled], this setting allows your system to be awakened from the power saving modes through any event on PME (Power Management Event).
-
Page 65: Pnp/Pci Configurations
4.8 PNP/PCI Configurations Init Display First This setting specifies which VGA card is your primary graphics adapter. Setting op- tions are: [PCI Slot] The system initializes the PCI graphic card first. [PCIEX] The system initializes the PCI-Express graphic card first. Maximum Payload Size This setting specifies the maximum TLP payload size for the PCI Express devices. -
Page 66: H/W Monitor
4.9 H/W Monitor PC Health Status Press <Enter> to enter the sub-menu and following screen appears: System/CPU Temperature, Current SYSTEM/CPU FAN Speed, Vcore(V), VCC, +5V, +12V, VBAT(V), 5VSB(V) These items display the current status of all of the monitored hardware devices/ components such as CPU voltages, temperatures and all fans’... -
Page 67: Load Fail Safe/Optimized Defaults
4.10 Load Fail Safe/Optimized Defaults The two options on the main menu allow users to restore all of the BIOS settings to the default Fail-Safe or Optimized values. The Optimized Defaults are the default values set by the mainboard manufacturer specifically for optimal performance of the mainboard. -
Page 68: Set Supervisor/User Password
4.11 Set Supervisor/User Password W hen you select this function, a message as below will appear on the screen: Type the password, up to six characters in length, and press <Enter>. The password typed now will replace any previously set password from CMOS memory. You will be prompted to confirm the password. -
Page 69: Installing The Realtek Audio Driver
Chapter 5 - Introduction to Realtek ALC 880 Introduction to Audio: Realtek ALC880 5.1 Installing the Realtek Audio Driver 5.2 Software Configuration 5.3 Using 2/4/6/8 Channel Audio Function... -
Page 70: Installation For Windows 2000/Xp
1. Insert the companion CD into the CD-ROM drive. The setup screen will auto- matically appear. 2. Click Realtek HD Audio Driver. MSI Reminds You... The HD Audio Configuration update to enhance audio applications. Hence, the program screens shown here in this appendix may be slightly different from the latest software utility and shall be held for reference only. - Page 71 3. Click Next to install the Realtek High Definition Audio Driver. 4. Click Finish to restart the system. Chapter 5 - Introduction to Realtek ALC 880 Clic k he r e Clic k he r e Se le ct this o ptio n...
-
Page 72: Software Configuration
5.2 Software Configuration After installing the audio driver, you are able to use the 2-, 4-, 6- or 8- channel audio feature now. Click the audio icon from the system tray at the lower-right corner of the screen to activate the HD Audio Configuration. It is also available to enable the audio driver by clicking the Azalia HD Sound Effect Manager from the Control Panel. -
Page 73: Sound Effect
Sound Effect Here you can select a sound effect you like from the Environment list. You may choose the provided sound effects, and the equalizer will adjust automatically. If you like, you may also load an equalizer setting or make an new equalizer setting to save as an new one by using the “Load EQ Setting”... -
Page 74: Audioio
AudioIO In this tab, you can easily configure your multi-channel audio function and speakers. You can choose a desired multi-channel operation here. a. Headphone for the common headphone b. 2CH Speaker for Stereo-Speaker Output c. 4CH Speaker for 4-Speaker Output d. - Page 75 Pop-screen check list 2CH Speakers configutaion - check the Front Speaker Out anyway. 4CH Speakers configuration - check the Front Speaker Out & Rear Speaker 6CH Speakers configuraion - check the Front Speaker Out / Rear Speaker 8CH Speakers configuraion - check the Front Speaker Out / Rear Speaker Test Speakers You can select the speaker by clicking it to test its functionality.
-
Page 76: Mixer
In the Mixer part, you may adjust the volumes of the rear and front panels individually. 1. Playback You can adjust the volume of the speakers that you pluged in. MSI Reminds You... Before set up, please make sure the playback devices are well plugged in the jacks. - Page 77 Mic in at front panel (Pink) from the scroll list after connecting microphone to the front audio panel. MSI Reminds You... Only the speakers that plugged into the Line-Out jack (the green ne) on the back panel will be functional when you intend to listen to the audio that has been recorded from the microphone.
-
Page 78: Microphone
Microphone In this tab you may set the function of the microphone. Select the Noise Suppression to remove the possible noise during recording, or select Acoustic Echo Cancelltion to cancel the acoustic echo druing recording. 5-10... -
Page 79: Audio Demo
Chapter 5 - Introduction to Realtek ALC 880 3D Audio Demo In this tab you may adjust your 3D positional audio before playing 3D audio applications like gaming. You may also select different environment to choose the most suitable environment you like. 5-11... -
Page 80: Information
Information In this tab it provides some information about this HD Audio Configuration utility, including Audio Driver Version, DirectX Version, Audio Controller & Audio Codec. You may also select the language of this utility by choosing from the Language list. Also there is a selection Show icon in system tray. -
Page 81: Using 2/4/6/8 Channel Audio Function
5.3 Using 2/4/6/8 Channel Audio Function Connecting the Speakers W hen you have set the Multi-Channel Audio Function mode properly in the software utility, connect your speakers to the correct phone jacks in accordance with the setting in software utility. n 2-Channel Mode for Stereo-Speaker Output Refer to the following diagram and caption for the function of each phone jack on the back panel when 2-Channel Mode is selected. - Page 82 n 4-Channel M ode for 4-Speaker Output 4-Channel Analog Audio Output Line In Line Out (Front channels) Line Out (Rear channels) Line Out (Center and Subwoofer channel, but no functioning in this mode) Side Surround Out (Side channels, but no functioning in this mode) Description: Connect two speakers to back panel’s Line Out connector and...
- Page 83 n 6-Channel M ode for 6-Speaker Output 6-Channel Analog Audio Output Line In Line Out (Front channels) Line Out (Rear channels) Line Out (Center and Subwoofer channel) Side Surround Out (Side channels, but no functioning in this mode) Chapter 5 - Introduction to Realtek ALC 880 Description: Connect two speakers to back panel’s Line Out connector, two...
- Page 84 n 8-Channel M ode for 8-Speaker Output 8-Channel Analog Audio Output Line Out (Side channels) Line Out (Front channels) Line Out (Rear channels) Line Out (Center and Subwoofer channel) Side Surround Out (Side channels) Description: Connect two speakers to back panel’s Line Out connector, two speakers to the rear-channel, two speakers to the c enter/...
