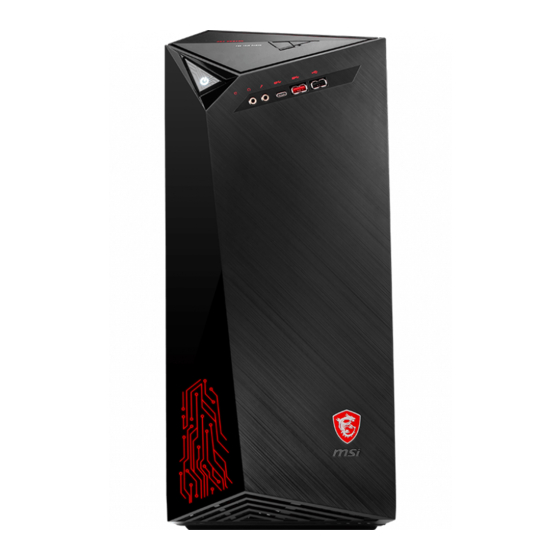

MAG Infinite Series
Personal Computer
Infinite B915

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAG Infinite Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MSI MAG Infinite Series

  • Page 1 MAG Infinite Series Personal Computer Infinite B915...
  • Page 2: Table Of Contents

    Contents Copyright and Trademarks Notice ��������������������������������������������������������������������������iii Revision ������������������������������������������������������������������������������������������������������������������iii Upgrade and Warranty ��������������������������������������������������������������������������������������������iv Acquisition of Replaceable Parts ����������������������������������������������������������������������������iv Technical Support ���������������������������������������������������������������������������������������������������iv Chemical Substances Information �������������������������������������������������������������������������� v Battery Information �������������������������������������������������������������������������������������������������� v Safety Instructions ���������������������������������������������������������������������������������������������������vi CE Conformity ������������������������������������������������������������������������������������������������������� viii FCC-B Radio Frequency Interference Statement ������������������������������������������������� viii WEEE Statement ����������������������������������������������������������������������������������������������������ix RoHS Statement �����������������������������������������������������������������������������������������������������ix 1.
  • Page 3: Copyright And Trademarks Notice

    Preface Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co�, Ltd� All rights reserved� The MSI logo used is a registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names mentioned may be trademarks of their respective owners� No warranty as to accuracy or completeness is expressed or implied�...
  • Page 4: Upgrade And Warranty

    If a problem arises with your computer and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor� Alternatively, please try the following help resources for further guidance� Visit the MSI website for technical guide, BIOS updates, driver updates and other information via https://www�msi�com/...
  • Page 5: Chemical Substances Information

    Preface Chemical Substances Information In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No� 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in computers at: https://www�msi�com/html/popup/csr/evmtprtt_pcm�html Battery Information...
  • Page 6: Safety Instructions

    Place the power cord in a way that people are unlikely to step on it� Do not place anything on the power cord� ◙ If this computer comes with an adapter, use only the MSI provided AC adapter approved for use with this computer� ◙...
  • Page 7 Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products� ◙ Visit the MSI website and locate a nearby distributor for further recycling information� ◙ Users may also reach us at gpcontdev@msi�com for information regarding...
  • Page 8: Ce Conformity

    1� this device may not cause harmful interference, and 2� this device must accept any interference received, including interference that may cause undesired operation� MSI Computer Corp� 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www�msi�com...
  • Page 9: Weee Statement

    Vietnam RoHS As from December 1, 2012, all computers manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric computers�...
  • Page 11: Overview

    Overview Congratulations for purchasing the Infinite Series Personal Computer System. This system is your best PC choice� With the fantastic appearance, it can easily be set anywhere� The feature packed platform also gives you an exciting PC experience�...
  • Page 12: Packing Contents

    Packing Contents User Manual & Power Cord Infinite Quick Guide (Optional) Keyboard Mouse Tempered Glass (Optional) (Optional) (Optional) Hand Screw x4 Driver/ Utility Disc (Optional) (Optional) * Please contact us immediately if any of the items is damaged or missing� * The illustrations are for reference only and your packing contents may slightly vary depending on the model you purchased�...
  • Page 13: System Overview

    Overview System Overview Front View Power Button Press the power button to turn the system on and off. Hard Disk Drive LED This indicator shows the activity status of the HDD. It flashes when the system is accessing data on the HDD and remains off when no disk activity is detected�...
  • Page 14 USB 3�2 Gen 1 Port USB 3�2 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-speed data transfer for various devices, such as storage devices, hard drives, video cameras, etc� USB 2�0 Port The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices�...
  • Page 15 Overview Rear View Infinite 10 DVI-D Port (Optional) The DVI-D (Digital Visual Interface-Digital) connector allows you to connect a LCD monitor� It provides a high-speed digital interconnection between the computer and its display device� To connect an LCD monitor, sim-ply plug your monitor cable into the DVI-D connector, and make sure that the other end of the cable is properly connected to your monitor (refer to your monitor manual for more information�) VGA Port (Optional)
  • Page 16 HDMI-Out Port The High-Definition Multimedia Interface (HDMI) is an all-digital audio/ video interface capable of transmitting uncompressed streams� HDMI supports all TV format, including standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable� USB 3�2 Gen 1 Port USB 3�2 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-speed data transfer for various devices, such as storage devices, hard drives, video cameras, etc�...
  • Page 17 Overview LAN Jack The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN)� You can connect a network cable to it� Yellow Green/ Orange Color LED State Condition Left Yellow LAN link is not established� On (steady LAN link is established�...
  • Page 19: Getting Started

    Getting Started...
  • Page 20: Safety & Comfort Tips

    Safety & Comfort Tips Choosing a good workspace is important if you have to work with your PC for a long period of time� 1� Your work area should have enough illumination� 2� Choose the proper desk and chair and adjust their height to fit your posture when operating�...
  • Page 21: Hardware Setup

    Getting Started Hardware Setup Connecting the AC Power and Powering On 1� Connect the power cord to the system and electrical outlet� 2� Press the power button to power on the system� Important When unplugging the AC power cord, always hold the connector part of the cord� Never pull the cord directly�...
  • Page 23: System Operations

    System Operations This chapter provides you with essential information on system operations� Important All information is subject to change without prior notice�...
  • Page 24: Power Management

    Power Management Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits. To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity�...
  • Page 25 System Operations Waking the System Up The computer shall be able to wake up from power saving mode in response to a command from any of the following: ■ the power button, ■ the network (Wake On LAN), ■ the mouse, ■...
  • Page 26: Network Connection (Windows 10)

    Network Connection (Windows 10) Wired Network 1� Right-click [Start] and select [Network Connections] from the list� 2� Select [Ethernet] and then [Network and Sharing Center]� 3� Select [Set up a new connection or network]�...
  • Page 27 System Operations 4� Choose [Connect to the Internet] and click [Next]� 5� Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user name and password� 6� Type the information from your Internet Service Provider (ISP) and click [Connect] to establish your LAN connection�...
  • Page 28 Wireless Network 1� Go to [Start] , click [Settings] and select [Network and Internet]� 2� A list of available WLAN connections pops up� Choose a connection from the list� 3� To establish a new connection, select [Network and Sharing Center]� 4�...
  • Page 29: System Recovery (Windows 10)

    System Operations System Recovery (Windows 10) The purposes for using the System Recovery Function may include: ■ Restore the system back to the initial status of original manufacturer’s default settings� ■ When some errors have occurred to the operating system in use� ■...
  • Page 30 Reset this PC 1� Go to [Start] , click [Settings] and select [Update and security]� 2� Select [Recovery] and click [Get started] under [Reset this PC] to start the system recovery� 3� The [Choose an option] screen pops up. Choose between [Keep my files] and [Remove everything]�...
  • Page 31 System Operations Keep my files 1� Select [Keep my files]. 2� The [Your apps will be removed] screen shows a list of apps that will need to be reinstalled from the web or installation discs� Click [Next] to continue� 3� The next screen will show the changes to be made during the process� Click [Reset] to start the system reset�...
  • Page 32 Remove everything 1� Select [Remove everything]� 2� If you have multiple hard drives, a screen will pop up, asking you to choose between [Only the drive where Windows is installed] and [All drives]� 3� Then select between [Just remove my files] and [Remove files and clean the drive]. 3-10 4�...
  • Page 33: System Recovery (F3 Hotkey Recovery)

    Recovering the system with the F3 Hotkey Follow the instructions below to continue: 1� Restart the PC� 2� Press the F3 hotkey on the keyboard promptly when the MSI greeting appears on the display� 3� On the “Choose an Option” screen, tap “Troubleshoot”�...
