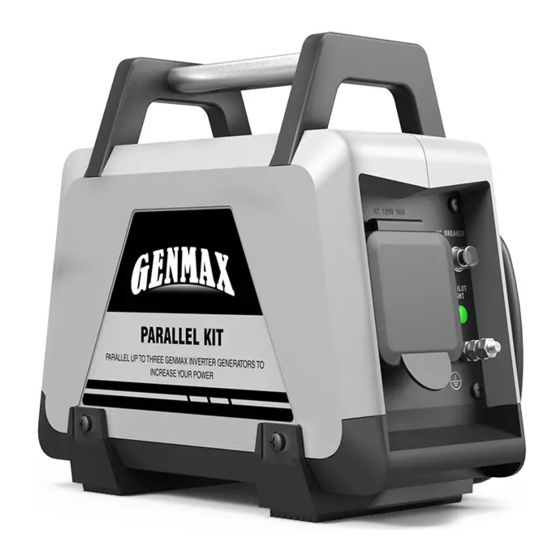

GENMAX PARALLEL KIT
INVERTER GENERATOR
PARALLEL KIT
USER,S MANUAL & OPERATION INSTRUCTION
SAVE THIS MANUAL: This manual contains important information regarding safety,operation,
maintnance and storage of this product. Before use, read carefully and understand all cautions,
warnings, instructions and product labels. Failure to do so could result in serious personal injury
and/or property damage.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PARALLEL KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GENMAX PARALLEL KIT

Summary of Contents for GENMAX PARALLEL KIT

  • Page 1 GENMAX PARALLEL KIT INVERTER GENERATOR PARALLEL KIT USER,S MANUAL & OPERATION INSTRUCTION SAVE THIS MANUAL: This manual contains important information regarding safety,operation, maintnance and storage of this product. Before use, read carefully and understand all cautions, warnings, instructions and product labels. Failure to do so could result in serious personal injury...

  • Page 2: Important Safety Instructions

    10. Do not remove, bend or modify any relevant local, state, and federal electrical metal prongs or pins of the Parallel Kit. codes and standards, and other 11. Do not use excessive force to make regulations where applicable.
  • Page 3 13. Do not remove or connect Parallel Kit 25249.5, et seq.) while generators are running. 23. Before use, check for misalignment or 14. Do not attach a Parallel Kit to only one binding of moving parts, breakage of generator. parts, and any other condition that may affect the equipment’s operation.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS Service Precautions 1. Before service, maintenance, or 4. Wear safety goggles during service. cleaning, unplug the Parallel Kit from both 5. Maintain labels and nameplates on the generators. equipment. These carry important 2. Keep all electrical equipment clean and information.

  • Page 5: Operation

    OPERATION Components Parallel Device Line Handle Panel(Left and right sides of the) Connectors (Red) Ground Connectors (Ring) Connectors (Black) Parallel Input Interface Panel AC 120V 50A AC 120V 30A RESET RESET ③ ③ PILOT PILOT LIGHT LIGHT ④ ④ ① ②...
  • Page 6 (2) Add fuel and oil to the generators according to the instructions in the generator manual. (3) Set up the Parallel Kit either on the ground or clipped to one of the two generators. (4) Connection cable: 1. Connect the Connectors (red) to the parallel outlets (red) on both generators and Parallel Kit.
  • Page 7 (5) Turn on one generator, then the second. Check that the Output lights of both generators are green. (6) Turn LOW IDLE to “ON”. LOW IDLE (7) Attach load to Parallel Kit. Note: If one generator shuts off during use, disconnect load until it can be restarted to avoid generator damage.

  • Page 8: Troubleshooting

    Restart generator. 3. Parallel Kit needs service. 2. Turn off and unplug Parallel Kit, reset Circuit Breaker, plug in Parallel Kit and turn on. 3. Have Parallel Kit repaired. Overload indicator Rated load capacity Lower the number of items flashes.
