R

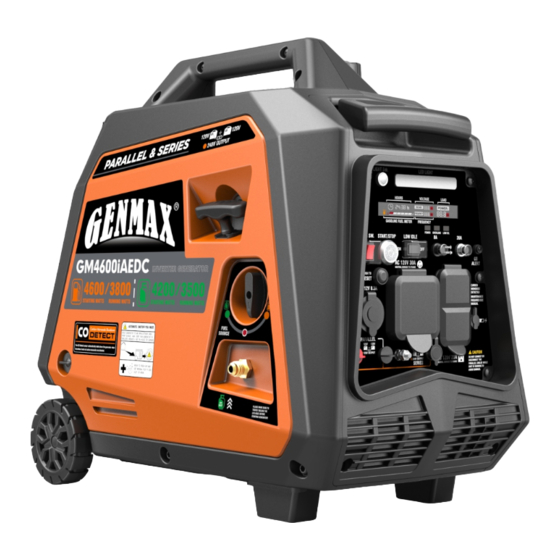

GENMAX GENERATOR
INVERTER GENERATOR
USER'S MANUAL
GM4600iAEDC
Portable Dual Fuel Generator
WARNING: SAVE THIS MANUAL FOR FUTURE REFERENCE
This manual contains important information regarding safety. Operation,
maintenance and storage of this product. Before use, read carefully and
understand all cautions, warnings, instructions and product labels. Failure to do
so could result in serious personal injury and/or property damage.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GENMAX GM4600iAEDC
Summary of Contents for GENMAX GM4600iAEDC
- Page 1 GENMAX GENERATOR INVERTER GENERATOR USER'S MANUAL GM4600iAEDC Portable Dual Fuel Generator WARNING: SAVE THIS MANUAL FOR FUTURE REFERENCE This manual contains important information regarding safety. Operation, maintenance and storage of this product. Before use, read carefully and understand all cautions, warnings, instructions and product labels. Failure to do...
- Page 2 DISCLAIMERS: All information, illustrations and specifications in this manual are based on the latest information available at the time of publishing. The illustrations used in this manual are intended as representative reference views only. Moreover, because of our continuous product improvement policy, we may modify information, illustrations and/or specifications to explain and/or exemplify a product, service or maintenance improvement.
- Page 3 DESCRIPTION OF FITTINGS Spark Plug Socket Wrench Dual-Purpose Screwdriver Funnel Phillips and slot blade Used in spark plug maintenance, screwdriver used for generator It's used to oil the generator. inspection, and installation. maintenance. Cigarette Lighter to USB-C&A 450ml 10W30 Oil Remote Control Key Adapter Convert the cigarette lighter...
-
Page 4: Limited Warranty
2. WHO GIVES THIS WARRANTY (WARRANTOR): CHONGQING DINKING POWER MACHINERY CO., LTD 3. WHO RECEIVES THIS WARRANTY(PURCHASER):The original purchaser (other than for purposes of resale) of the Genmax's inverter. 4. WHAT PRODUCTS ARE COVERED BY THIS WARRANTY: Any portable generator supplied or manufactured by Warrantor. -
Page 5: Table Of Contents
TABLE OF CONTENTS LIMITED WARRANTY SAFETY WARNING SAFETY INSTRUCTIONS NAMES OF COMPONENTS CONTROL FUNCTIONS PREPARATIONS 1.Fuel............................11 2.Oil..............................11 3.Pre-Operation Inspection......................12 STARTING UP THE GENERATOR SHUTTING DOWN THE GENERATOR USING THE GENERATOR 1.Service Environment of the Generator..................18 2.Generator Wiring........................18 3.Generator Grounding.........................19 4.Parallel and Series Operation...................20 5.Battery Charging........................21 SERVICE AND MAINTENANCE 1.Spark Plug Inspection.......................23... -
Page 6: Safety Warning
SAFETY WARNING Personal and property safeties of you and others are very vital. Please read the Safety Warning in the User's Manual and the decals of the generator set carefully.The Safety Warning can alert you to those potential hazards that could harm you and others. In front of each Safety Warning, there is one of four words "DANGER"... -
Page 7: Safety Instructions
SAFETY INSTRUCTIONS Before operating the generator, it will help you avoid accidents to read and understand the Manual and familiarize yourself with the safe operation procedures of the generator. Please do not use in humid Please do not use indoors environment Please do not connect it to Please do not smoke when refueling... - Page 8 SAFETY INSTRUCTIONS SAFETY LABELS AND DECALS...
-
Page 9: Names Of Components
NAMES OF COMPONENTS ① Fuel Tank Cap: Open the fuel tank cap and fill with ⑨ Spark Plug Access Cover: Remove the cover to proper amount of gasoline. service the spark plug. ② Recoil Handle: Pull to start the engine. ⑩... -
Page 10: Control Functions
⑯ Main Switch: Manage battery power and shutdown. Tip: If you do special parallel kit GM6000SPK sold by GENMAX. The connector not use the generator for more than 7 days (168 hours), please press sockets is only used to connect two inverter generators. They can the main switch to the "OFF"... - Page 11 CONTROL FUNCTIONS DIGITAL DISPLAY CENTER ① : Represents single run time, goes from 0 ④ VOLTAGE: Voltage display. at each startup. ⑤ FREQUENCY: Frequency display. ② : Represents total operation time of the ⑥ LOAD: Load power display. generator. (Tip: The total operation time shall start to ⑦...
-
Page 12: Preparations
PREPARATIONS Fuel DANGER • Fuel is flammable and toxic, please read the Safety Instruction carefully before refueling; • Do not fuel too full, otherwise fuel will spill after fuel tank is warmed; • After refueling, confirm that the fuel tank cap has been tightened. ATTENTION •... -
Page 13: Pre-Operation Inspection
PREPARATIONS Pre-use Inspection WARNING Even if the generator is not in service, its important component may suddenly fails. Before the generator is started up, if any of following components is unable to work properly, please inspect and repair carefully. Tip: The condition of the generator shall be inspected before using every time. Pre-operation inspection Project Possible Causes... -
Page 14: Starting Up The Generator
STARTING UP THE GENERATOR Remove the load from all output ends; Connect battery line before first use: 1. Loosen the knob on the right cover and remove the cover; 2. Connect the positive and negative electrodes of the battery. Tip: Connect the same color wires together, do not connect the wrong positive and negative wires. - Page 15 STARTING UP THE GENERATOR Move the Main Switch to "ON"; Select Boot Mode: a. Recoil Start: Pull the starting handle to start the generator. b. START/STOP Button Switch: Press the button to start the generator. Tip: If the red light keeps flashing fast, the generator does not start successfully. Press the button to turn off the red light, and press the button again to start the generator.
- Page 16 STARTING UP THE GENERATOR COMMON PROBLEMS WITH STARTING THE GENERATOR: Start the generator to run normally without output ? Check whether the green light of the GFCI socket is on. If the green light is not on, press the RESET button after the generator is started to make the green light on.
- Page 17 STARTING UP THE GENERATOR Parallel Operation The parallel connection ports allow you to connect two generators to increase the total available electrical power. Follow the instructions included with your parallel connection kit for proper installation and operation. Overload Indicator Note: The OVERLOAD light may turn on for a few seconds as a large device starts. This is normal for loads approaching the capacity of this generator.
-
Page 18: Shutting Down The Generator
SHUTTING DOWN THE GENERATOR Unplug the power cord; Select Stop Mode: a. START/STOP Button Stop: Press the button to turn off the generator. b. Remote Stop: Press the "OFF" button on the remote control to turn off the generator. Move the Main Switch to "OFF". Set the Fuel Source Switch to the off position. -
Page 19: Using The Generator
USING THE GENERATOR Service Environment of the Generator • Applicable temperature: -5°C~ 40°C; • Applicable humidity: below 95%; • Applicable altitude: regions below 1,500 m (It shall be used by reducing power in regions above 1,000 m). Standard atmospheric condition •... -
Page 20: Generator Grounding
USING THE GENERATOR Connection of AC power WARNING All electrical equipment shall be disconnected before inserting the plug. ATTENTION • Make sure that all electrical equipment, including wires and plugs, are in good condition before connecting to the generator; • Make sure that all loads driven by the generator are within rated load range; •... -
Page 21: Parallel And Series Operation
To increase AC power output, the connector sockets are used to connect the two same type generators with special parallel kit GM6000SPK sold by GENMAX. The connector sockets is only used to connect two inverter generators. They can not used for AC power output. The special paralleling kit GM6000SPK shall be purchased separately, and they shall be approved by certification body. -
Page 22: Battery Charging
USING THE GENERATOR Battery Charging The battery storage time is generally about 6 months. If the generator is not used for a long time, the battery will run out of power. At this time, the battery should be charged. Replace the battery if it is damaged or fails to charge. -
Page 23: Service And Maintenance
SERVICE AND MAINTENANCE Good maintenance and service is the best guarantee for safe, economical and zero-failure operation. It also contributes to environmental protection. In order to keep the generator in good condition, you must inspect and maintain it regularly. The maintenance schedule is as follows: Then every three Maintenance cycle... -
Page 24: Spark Plug Inspection
SERVICE AND MAINTENANCE WARNING Please shut down the engine first before performing any maintenance. The engine shall be placed in a horizontal position. In order to prevent the engine from starting up, separate spark plug cap shall be separated from spark plug. Do not use it indoors or use it in a tunnel, cave or other places ventilated poorly. -
Page 25: Adjustment Of The Carburetor
SERVICE AND MAINTENANCE Install the spark plugs in reverse order of removal. Spark plug torque: 14±1N.m(123.9±8.8in-lb) Tip: If there is no torque wrench when installing the spark plug, a better estimation method is to screw it 1/4-1/2 turns by force after screwing it in place, but the spark plug shall be screwed to specified torque as soon as possible. Adjustment of the Carburetor The carburetor is an important components of the engine. -
Page 26: Air Filter
SERVICE AND MAINTENANCE Place an oil pan under the engine, tilt the generator to quickly pour out oil; After discharging the oil, put the generator back on level ground. Refill oil to a proper level, tighten oil dipstick, cover external cover plate and tighten the knob. Don't go over the scale Recommended oil: SAE S10W/30 Oil grade: API standard Model SJ or higher... -
Page 27: Fuel Filter Screen
SERVICE AND MAINTENANCE 1. Reassemble empty air cleaner cap back to original position, and tighten screws. 2. Assemble right exterior cover and tighten knob. Fuel Filter Screen WARNING Be sure not to open fuel tank of the generator in a place where smoking or with flame. 1. -
Page 28: Storage And Transport
STORAGE AND TRANSPORT Generator Storage If it is stored long-term, in order to prevent aging, you shall take some storage measures. Shut down generator. Open fuel tank cap, to take out fuel filter screen. Pump all fuel in fuel tank into special fuel tank, and then reassemble fuel tank cap back. -
Page 29: Generator Transport
STORAGE AND TRANSPORT Gently pull startup handle until you feel resistance, allowing both inlet valve and exhaust valve to be closed. Disconnect the battery cable. Place the generator set in a clean and dry area. Generator transport • When the generator set is transported, it shall be ensured that there is no fuel spilling; •... -
Page 30: Troubleshooting
TROUBLESHOOTING... - Page 31 TROUBLESHOOTING...
-
Page 32: Technical Parameters
TECHNICAL PARAMETERS Item GM4600iAEDC Rated Power (kW) 3.8(GAS)/3.5(LPG) Max. Power (kW) 4.6(GAS)/4.2(LPG) 165F/GM-1 Engine Model Input valve：0.03~0.08mm, Output valve：0.03~0.08mm Valve Clearance 65x48 Stroke x Bore (mm) Engine Type 4-stroke Displacement (cc) Gas Distribution Mode Cooling Mode Forced cooling wind Rated Speed (RPM) -
Page 33: Choosinga Generator
CHOOSING A GENERATOR... - Page 34 In production management, based on orderly, efficient, scientific principles. trying to do as better as possible in product design, development, production, inspection, etc. to make our production can keep orderly. And will continue to make improvement to make sure that keep the competitiveness.
