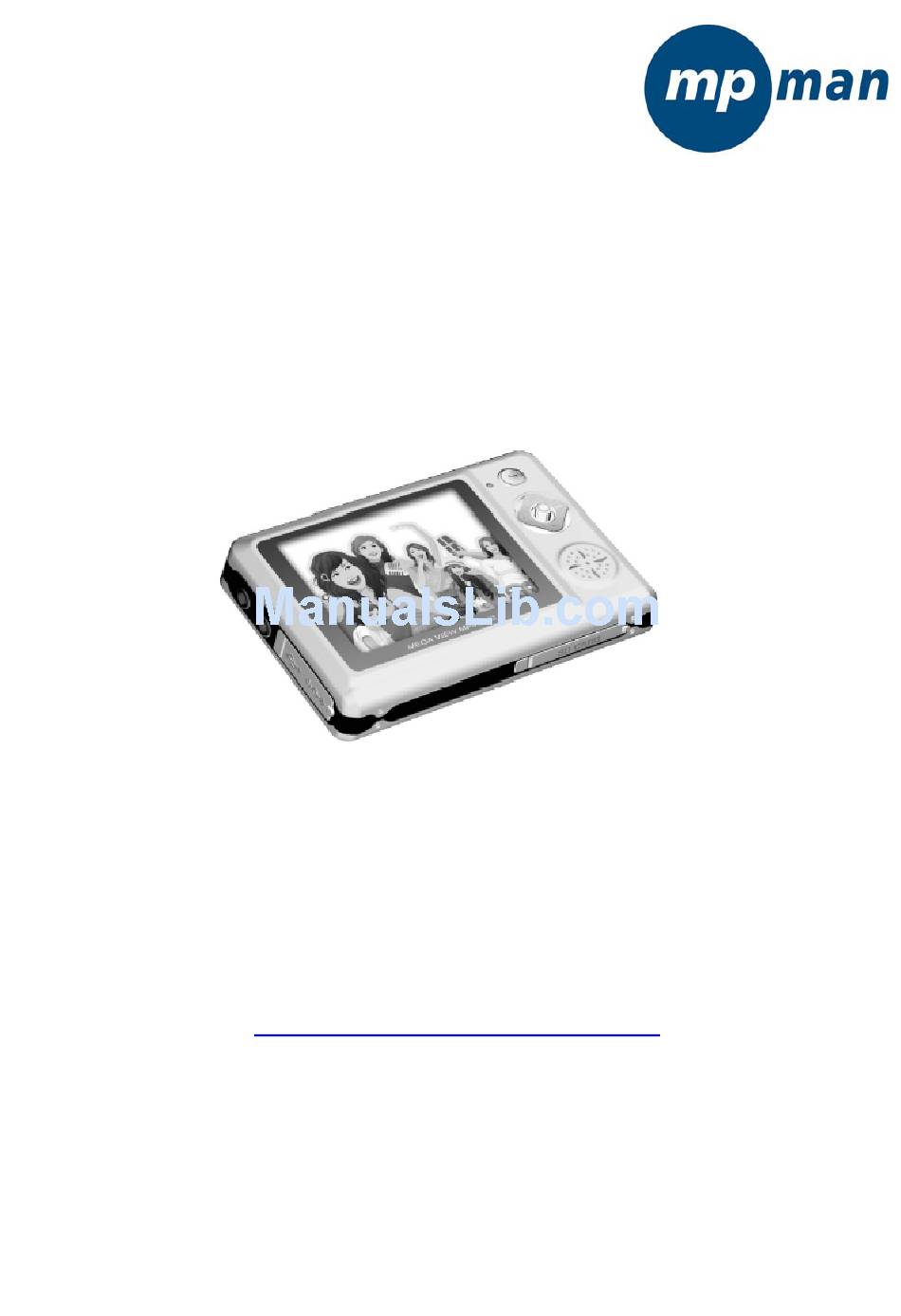

- Page 1 MP-CS250 USERS GUIDE www.mpmaneurope.com Thank you for purchasing our latest product MP-CS250. Please read the instruction carefully for safe use. We recommend you to keep this instruction manual for future reference.
-
Page 2: Table Of Contents
CONTENT PC DEVICE NOTES PRODUCT INTRODUCTION FUNCTION INTRODUCTION BUTTONS AND CONNECTIONS BASIC OPERATION OPERATION DETAILS APPENDIX TROUBLE SHOOTING SPECIFICATION & ACCESSORIES... -
Page 3: Pc Device
● CD-ROM Drive ● Sound card ● Internet connection 2. Connect MP3 player to your PC Using USB cable (it is supplied in the accessories) connect USB port terminal from the player to USB port on PC correctly. Notice: please power on the player before insert USB cable. Otherwise it will influence the player’s function. -
Page 4: Notes
Between 0°c and +40°c is the best working temperature for your MP-CS250. 2. Avoid putting the MP-CS250 at a place where the sunshine penetrates directly. 3. Inserting or removing the SD card should be done on the “power off “state. -
Page 5: Product Introduction
PRODUCT INTRODUCTION PRODUCT INTRODUCTION 1) Video function: supports MPEG-4 in ASF format, and much more other formats (with converter supplied in the CDROM). The play effection is 320x240@30f/s 2) Audio play function: supports MP3/WMA/WAV. 3) Picture viewer function: supports JPEG. format. 4) Video recording / Av in: video encoder with line-in cable (supports PAL and SECAM systems) 5) Video output / Av out（NTSC/PAL）... -
Page 6: Function Introduction
FUNCTION INTRODUCTION Function introduction Yes/no Video play Video recording Music playing Photo browsing Digital recording TV input TV output Game Calendar Memory checking Multiple languages Key Lock function Screen protection... -
Page 7: Buttons And Connections
BUTTONS AND CONNECTIONS POWER ON MODE/SHUTTER HANDLING PLAY MENU TFT screen LOCK RESET INTERNAL SPEAKER LINE-IN（AV input） EARPHONE（AV output） USB port SD/MMC CARD SLOT CHARGE * Press "ESC"button to escape current operation. * Working state when the green light is on. * In Charge when the red light is on. -
Page 8: Basic Operation
Press Power on button for 3 seconds to power off. Charge operation Connect the charger to the power, and connect the port to the MP-CS250 charge port. At this moment, the MP-CS250 enters charge mode. It takes around 5 hours for charging completely the MP-CS250. - Page 9 SD/MMC card memory. OPERATION DETAILS I. VIDEO OPERATION: 1. Press power on button during 3 seconds to switch on the MP-CS250 and wait for the player to enter stand-by interface. 2. Select “Video” function by using the buttons, and press “MENU ” to confirm.
-
Page 10: Operation Details
OPERATION DETAILS Writing Protect: Protect the selected file File protection： Release protection Clock show Power indication Current song written protection HOLD state Play Mode: REP ONE, REP ALL , RANDOM, NORMAL (No display) Audio setting:8KHz, 16KHz, 24KHz, 32KHz, 48KHz... - Page 11 OPERATION DETAILS Ⅱ.AUDIO PLAY 1. Turn on the MP-CS250. Press button to select “Audio“ interface and press “MENU” button to confirm operation. Press +/- button up and down to select the song you want and press play button to play.
-
Page 12: Picture Viewer
OPERATION DETAILS 5. The “Audio file” will display “no file” when hasn’t music file in it. 6. Press MENU to select section A and press MENU again to select section B when play audio file and the in the normal playing mode. At this moment, can repeat play A-B section.(The A-B repeat is invalid with syncro lyric) 7. - Page 13 OPERATION DETAILS 3. Press “MENU” button to access Setting menu and select “FILE PROTECTION” for put protect your file or you can press “RELIEVE PROTECTION” to relieve protection. 4. Enter“deleteoption”come to execute delete operation. Available for“single deleting”, also can delete the unprotected file in the currently folder. 5.
- Page 14 IV. RECORDING 1.Recording include in Line-in/mic/Video record. . After connection with the Video cable, turn on the MP-CS250. Press “recording”interface and press“MENU”butto If the Video signal input is plugged, you will see the video source program on the player display. Press “play” button to “play”...
- Page 15 OPERATION DETAILS V. GAMES snake 1.Power on the MP-CS250, press “MENU” button to enter subdirectory. Choose “Snake” and press “MENU” butto enter “snake”game interface : . Press“MENU”to start game and press“Esc” button to exit. 3. Press play button to start game. The joystick button controls right, left,up and down to swallow the dive in the middle of the screen random.
- Page 16 Russia . Power on the MP-CS250, press “MENU” button to enter subdirectory. Choose “Russian” and press “MENU” but to enter “russian”game interface : Press play button to start game. The down). The “+” button should be used to rotate the bricks.
-
Page 17: Memory Information
OPERATION DETAILS MEMORY INFORMATION 1. Power on the MP-CS250, press “MENU” button to enter subdirectory. Choose “Memory” and press “MENU” button to enter “memory” interface : 2. The system will prior exam the external memory card, if connect with SD/MMC card. Please... - Page 18 OPERATION DETAILS VI. SET UP Power on the MP-CS250, press button and select “SET UP”. Press “MENU” button to enter subdirectory. TIME To set up date, push the “MENU” button for 3 seconds. Press to select the data you want to modify and then “-/+” to modify. When finished push the “MODE”...
-
Page 19: Auto Power Off
OPERATION DETAILS DEFAULT Here you you can choose to go back to factory settings (it won’t affect the data you have in the memory) AUTO POWER OFF When there is no operation the player is on stand by mode, you can set auto power off time as no off, 3 mins off 15 mins off, 30 mins off FORMAT STORAGE If you want to format one of the memory (either internal or external memory) you can... -
Page 20: Appendix
CONVERTING There is a convertion tool in the CDROM supplied with the MP-CS250 that can convert movies into “.asf” format, convert music into “.mp3” format and convert pictures format into .jpg format. The step of installation is as follows: 1. Click"setup.exe" to execute the installation procedure operation as screen shows: 2. - Page 21 Appendix 4. Choose the destination of the file (programs is the more convenient) 5. After selecting the file, press "next step" to finalize installation. The following picture will be shown upon finishing of installation.
- Page 22 Appendix OPERATION METHOD OF THIS SOFTWARE Convert photo into JPEG format Convert music into MP3 format Convert movies into ASF format Original file Route selection Play button Route selection Converted file Begin conversion Stop About the software...
- Page 23 APPENDIX Image mode selection CD mode selection 1.Media mode selection 4.file selection 6. Begin converting 3.Video quality of the converted file. 5.select output route of converted file. 2.Audio quality of the converted file.
-
Page 24: Trouble Shooting
TROUBLE SHOOTING: 1. Can't power on Maybe the MP-CS250 is out of battery. Connect the MP-CS250 with the charger adapter, and connect the adapter with the current power. You can also try push the “RESET” button (it won’t delete the files you have inside). -
Page 25: Specification & Accessories
Specification & Accessories PRODUCT SPECIFICATION Built-in flash 512MB (internal) memory and up to1GB with capacity: SD/MMC card (not supplied) Power Supply 3.7V Li-lon battery Earphone 2.5 inch TFT Dimension 90×60 ×17.5mm USB port USB 1.1 ACCESSORIES User's Guide Stereo earphone Setup CD USB cable Line-in Cable...
