MPMan MP-FOL6 User Manual

Digital audio player
Hide thumbs Also See for MP-FOL6:
Table of Contents

Advertisement

Quick Links

Download this manual
MP-FOL6
User's Guide
Before operating this product, please read these instructions completely.
www.mpmaneurope.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-FOL6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MPMan MP-FOL6

Summary of Contents for MPMan MP-FOL6

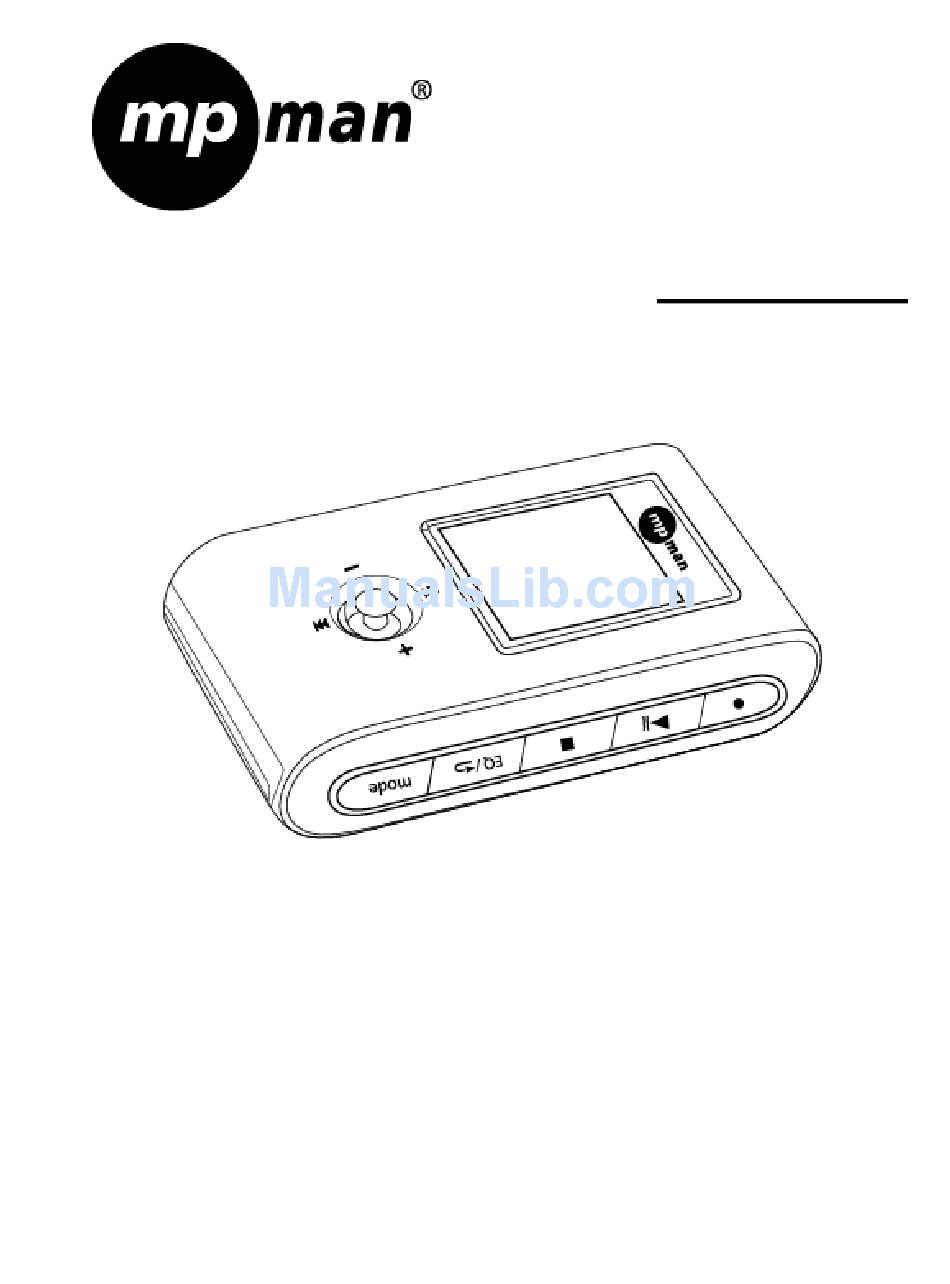

  • Page 1 MP-FOL6 User’s Guide Before operating this product, please read these instructions completely. www.mpmaneurope.com...

  • Page 2: Getting Started

    Getting Started INTRODUCTION Digital Audio Player (DAP) – FOL6 Your Digital Audio Player is a device that stores and plays multi-format digital audio files including MP3, WMA and WAV files. Downloading hours of music from your PC, transfer them into your DAP or use it for voice recording. Please read this manual carefully before using this product for the first time.

  • Page 3: Parts Description

    PARTS DESCRIPTION 1. - Record Button 2. Power On Button – Play ( 3. Power Off - Stop ( 4. EQ/ Button 5. Mode Button CONTROLS Key Functions mode Press to access into the Main Menu. Press and hold to access into the Settings Menu. hold Slide up to lock all keys functions.

  • Page 4: Battery Precautions

    There is a joystick key in the center that can be used to control several key functions. Press the button top, down, left, right or pressing it down will achieve the following actions: /Navi Push the button down to access the Navigation mode of the folders. Push to confirm Setting.

  • Page 5: Downloading And Transferring Files

    Downloading and Transferring Files USB DRIVER INSTALLATION For Windows ME, 2000 or XP: These versions of Windows will automatically detect your DAP after connecting with the USB cable and the computer. (Please make sure the DAP is turned ON.) For Windows 98SE: Windows 98SE will not recognize the player until you have installed the driver using the included installation CD-ROM.
  • Page 6 2. Follow the on screen instruction to install the software. Click “Yes” to accept the License Agreement. GB -...
  • Page 7 Please install the software under the directory as prompted. Warning: DO NOT change the installation path. Otherwise, the Player driver may not run properly. Click “Next” as prompted. GB -...
  • Page 8 3. After successfully installing the driver software, please click “Finish” to complete the installation. 4. When the installation is completed, the new program will be added to your Program menu in the computer. GB -...

  • Page 9: Transferring Files

    TRANSFERRING FILES Connect the DAP by using the supplied USB cable to the computer. Press the button to turn the player ON. The following will be displayed on the display of your DAP: A “Removable Disk” will be added in My Computer. Open the “Removable Disk” folder: Locate the files you wish to copy from your computer to your player.
  • Page 10 DOWNLOADING WMA FILES WITH DRM In order to download WMA files with DRM you must follow the procedure described below. If you do not have “Windows Media Player 9” on your computer, you must go to www.Microsoft.com to download and install this software. Before beginning the procedure please turn the unit ON and connect the USB cable to the unit and to the USB port of your computer.
  • Page 11 2. Click the “Copy Music” tab and tick the option “Copy protect music” in order to copy a DRM music file onto your unit. Click “OK” to save the setting. 3. Click “Copy to CD or Device”. GB -...
  • Page 12 4. Click on the “Items to Copy” drop down menu to locate the music files you wish to download. Make sure to tick the box next to the files. 5. Select, the Portable Device you want to copy to from the “Items on Device” drop down menu.

  • Page 13: Safely Remove Hardware Procedure

    SAFELY REMOVE HARDWARE PROCEDURE 1. Double click the “Safely Remove Hardware” icon on the task bar: 2. From the “Safely Remove Hardware” window, select “USB Mass Storage Device” and click the “Stop” button. The “Stop a Hardware Device” window will pop up as shown: 3.

  • Page 14: Operation

    Operation LISTENING TO MUSIC After you have transferred MP3, WMA or WAV files from the computer to the DAP player, you can start listening to music while you learn how to use the rest of the features. Insert the earphones into the earphone jack of the player; press the player on.
  • Page 15 Repeat Button Press the EQ/ button repeatedly to select different repeat mode options. As each mode is selected, the following icons will displayed on the right upper part of the display: Play all the files in the player once. Randomly play all the files in the player once. Randomly play all the files in the player continuously.

  • Page 16: Voice Recorder

    Deletion Files can be deleted in the Browser Mode: - After entering the Browser mode, press the + or the - button to highlight a desired song or file. Press the button; Press the Press or the button to highlight Yes or No. Press the /Navi to confirm to delete the file.

  • Page 17: Customizing The Player

    Customizing the Player USING THE SETTING MENU The Setting Menu provides the options to change the player settings, displays, and resolution. Press and hold the mode button to display the SETTING MENU on the display. Press the or the button to select one of the following setting options: Play List, Recording Resolution, Contrast, Equalizer, Play Timer, Screen Saver, or Language.
  • Page 18 Recording Resolution Setting Push + or - to select one of the three voice recording resolution: Low, Normal, or High Press /Navi to confirm the resolution selection. Contrast Setting Press the or the button to adjust the display contrast level. Press /Navi to confirm the contrast level.

  • Page 19: Additional Information

    Additional Information PRECAUTIONS Copyright • Making copies of MP3 tracks or files without permission is a violation of the international copyright laws. Safety • Vibration experienced during walking or exercising will not affect the player. However, dropping the player or dropping a heavy object on the player may result in damage or sound distortion.
  • Page 20 CE Warning The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product. This unit must not be exposed to moisture or rain. Ensure all connections are properly made before operating the unit. This unit should be positioned so that it is properly ventilated.

  • Page 21: Troubleshooting

    TROUBLE SHOOTING Should any problem persist after you have checked these symptoms, consult your dealer. Symptom No Power The battery is exhausted. No Sound from The earphones Earphones are detached from the unit. The volume is set to “minimum”. The battery is exhausted.

  • Page 22: Technical Specifications

    TECHNICAL SPECIFICATIONS Category Item Audio Frequency Range Headphones Output S/N Ratio File Support Bit Rate Tag Info Dimension Weight Battery Display Built-in Memory Supported OS Voice Recording Firmware Upgradeable Operating Temperature Specifications are subject to change without notice. Specification 20Hz – 20KHz >40mW, 32ohm (Max.

  • Page 23: Care And Maintenance

    CARE AND MAINTENANCE Your Digital Audio Player is a precise electronic device, and should not be subjected to rough handling or exposed to extreme temperatures or moisture. Do not use chemical agents or liquids to clean the unit, as they may damage the plastic. Please Retain this Information for Future Reference The manufacturer reserves the right to make any technical changes without notice in the interest of progress.
