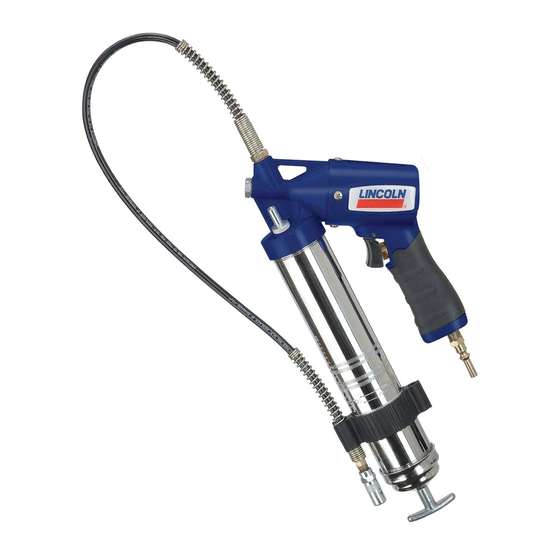

- Page 1 User and maintenance instructions Automatic air grease gun Model 1162 June 2021 Date of issue Form number 404628 Version...
-
Page 2: Table Of Contents
Contents EC Declaration of Conformity Safety Signal words for safety Personal safety Quick start instructions Description Appropriate use Work area Inspection Operation Specifications Removing empty grease cartridge Installation grease cartridge To fill the gun from bulk container To fill the gun with a filler pump To expel air pockets To convert gun to allow filling from bulk container or filler pump... -
Page 3: Ec Declaration Of Conformity
Heinrich-Hertz-Str 2-8 • Failure to comply may result in death or DE - 69190 Walldorf serious injury Manufacturer Lincoln Industrial, 5148 North Hanley Road, St Louis, MO 63134 USA Brad Edler, Manager Product Development/Product Engineering LPD North America June 30, 2020... -
Page 4: Personal Safety
If any fluid appears to penetrate the skin, get the air grease gun The gun must be oper- Lincoln air operated grease gun is fully emergency medical immediately Do not treat as a simple cut Tell attending physician... - Page 5 Fig 1 Fig 2...
-
Page 6: Appropriate Use
Appropriate use Specifications Pump ratio (max) 40:1 • The air gun was exclusively designed to Output per stroke 0 038 in (0,62 cm pump and dispense lubricant using Pneumatic inlet pressure (minimum) 40 psi (2,7 bar) pneumatic power Pneumatic inlet pressure (maximum) 150 psi (10,3 bar) •... -
Page 7: To Fill The Gun From Bulk Container
To fill the gun from To fill the gun with a To expel air pockets bulk container filler pump 1 Withdraw the follower rod from the grease tube assembly cap and engage it with the 1 Remove head and plunger assembly from Engage the follower rod with the follower by follower by rotating the follower handle container tube... - Page 8 Fig 6 Lube outlet / -28 UNEF Air inlet / -18 NPSF...
-
Page 9: Service Parts
Service parts Part no Description Include 1230HT* Hose, 30 in (762 mm) Hose, 30 in (762 mm) Gasket Label, warning 5852 Coupler, hydraulic Coupler, midget 274985 Kit, outlet check Spring housing Ball Check spring Gasket 277985 Grease tube Container assembly Label, warning 274984 Head... -
Page 10: Troubleshooting
Troubleshooting Condition Possible cause Corrective action The gun doesn’t operate No inlet air pressure Connect air supply The piston (7) is stuck Disassemble the gun, inspect for damage Replace if necessary Air pressure is too low Check air pressure supply The pressure is to be higher 40 psi (2,7 bar) Broken return spring (12) Replace if necessary... - Page 11 This page left intentionally blank...
-
Page 12: Warranty
| lincolnindustrial com ® SKF and Lincoln are registered trademarks of the SKF Group © SKF Group 2021 The contents of this publication are the copyright of the publisher and may not be reproduced (even...
