  • Page 1 Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020...
  • Page 2 The information in this document is sourced in Canada, the United States of America, and the United Kingdom. This is the Way, This is Nortel, Nortel, the Nortel logo, the globemark design, and the NORTEL NETWORKS corporate logo, are trademarks of Nortel Networks. All other trademarks are the property of their respective owners.

  • Page 3: Table Of Contents

    Contrast and brightness 19 USB devices 19 TFTP upgrade 19 Preferences 19 How to use the navigation keys 19 Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 4 Adjusting the contrast and brightness of the display Using the Feature menu Using the Assign menu 53 Defining the key type 54 Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 5: Contents

    Storing a number from the Outbox 84 Using the Outbox to make a call 85 Resetting the Outbox 85 Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 6 Procedure job aid 90 Using the on-screen keyboard to enter text Using the dialpad to enter text Access Code summary Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 7: New In This Release

    New in this release There have been no updates to the document in this release. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 8 8 New in this release Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 9: Overview

    Overview The IP Phone 2007 brings voice and data to the desktop by connecting directly to a Local Area Network (LAN) through an Ethernet connection. When you are logged on to the system, the handset and keypad of the IP Phone 2007 operate in the same way as a standard Meridian Business Set (MBS) telephone.

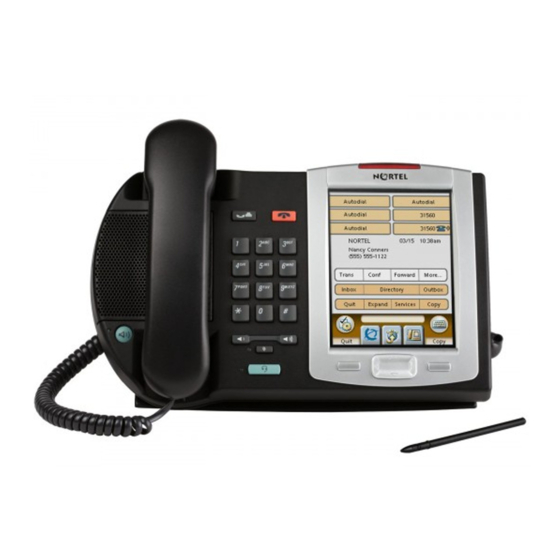

  • Page 10 • upgradeable firmware • wideband audio support "IP Phone 2007 components" (page 10) identifies the location of the keys and components of the IP Phone. IP Phone 2007 components Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard...

  • Page 11: Touch Panel Description

    The application area provides feature key and soft key status; date and time display; caller name and number; menu options, directories, Inbox, and Outbox information. Touch panel application area Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 12: Tools Area

    The tools area provides controls for navigating between features and selecting tools. This area is visible and functional at all times. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...

  • Page 13: Calibration

    Calibrate the touch panel when touch panel actions are not interpreted correctly. "Calibrating the touch panel" (page 27). Stylus Operate the touch panel using the stylus. Nortel recommends that you use the stylus to avoid damaging the touch panel. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright ©...

  • Page 14: Touch Screen Maintenance

    Lit when the link is alive and the PCB near the CAT5 jack) flashes to indicate activity. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 15: Ip Phone 2007 Menu Systems

    Use this item to adjust the contrast level of the display. "Adjusting the contrast and brightness of the display" (page 51). Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...

  • Page 16: Feature

    16 IP Phone 2007 menu systems Feature Use the Feature menu to access these submenus: Assign Use the Assign menu to: • define the key type • enable and disable AutoScroll • enable and disable the Inbox feature "Using the Assign menu" (page 53).

  • Page 17: User

    Use the Upgrade item to perform a firmware upgrade. This item only appears if a firmware upgrade is available. "Performing a firmware upgrade" (page 73). Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 18: Menu Hierarchy

    18 IP Phone 2007 menu systems Menu hierarchy Tools menu The tools menu provides access to these options. If password protection is enabled the system prompts you for a password when you open the Tools menu. "Touch panel tools area" (page 13) for location of the Tools key.

  • Page 19: Contrast And Brightness

    Press the right key to move the cursor to the right. After you select an option, you can press Ok on the touch screen to execute the selection. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...
  • Page 20 20 IP Phone 2007 menu systems Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 21: Connecting The Ip Phone To The Lan

    Secure the terminal footstand to the terminal base. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 22: Procedure Job Aid

    22 Connecting the IP Phone to the LAN Procedure job aid IP Phone connectors Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 23: Logging On

    The Password screen appears. Enter your password. For security, the password characters are displayed as asterisks (*). Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 24 If you make an error, press Clear to clear the field, and then enter the password again. Press Ok. You are logged on and the Menu screen appears. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 25: Logging Off

    Press Ok. A confirmation screen appears. Confirm the action. You are logged off from the network. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 26 26 Logging off Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 27: Maintaining The Touch Panel

    • If the calibration is correct, press Yes to save the settings. You will exit to the main display. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 28: Cleaning The Touch Panel

    Action Press and hold the Goodbye key. Gently wipe the screen with a soft, dry cloth. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 29: Making Calls

    Use the dialpad to enter the number. When the call is answered, begin speaking. —End— Making a call using handsfree dialing Follow this procedure to make a call using handsfree dialing. "IP Phone 2007 components" (page 10) for the location of the Handsfree key. Step Action Press a line key.

  • Page 30: Making A Call Using Predial

    To delete numbers that appear to the right of the cursor, press Delete. Use the dialpad to enter the new number. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...
  • Page 31 Editing a predialed number 31 —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 32 32 Making calls Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 33: Answering Calls

    Answering calls Follow these procedures to answer calls. Incoming calls cause the telephone to sound and the message indicator lamp to flash. "IP Phone 2007 components" (page 10) for the location of the keys. Answering a call Follow this procedure to answer a call.
  • Page 34 34 Answering calls —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 35: Ending A Call

    Ending a call Follow this procedure to terminate an active call. The goodbye key is useful for dropping out of a conference call or exiting voice mail. See "IP Phone 2007 components" (page 10) for the location of the key. Step Action Perform one or these actions.
  • Page 36 36 Ending a call Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 37: While On An Active Call

    While on an active call Follow these procedures to put a call on hold, transfer a call, use the mute key, and use the conference call feature. "IP Phone 2007 components" (page 10) for the location of the keys. Navigation •...

  • Page 38: Using Conference Call

    If you make a mistake dialing, or a party does not want to be included in the conference, press the extension key of the conference call to reconnect to the conference. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...

  • Page 39: Using The Mute Feature

    To turn off the feature, press the Mute key again. The light is turned off and the feature is disabled. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...
  • Page 40 40 While on an active call Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 41: Using Call Forward

    To turn off call forward, touch the forward key. The feature is deactivated and the icon disappears from the display. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...
  • Page 42 42 Using call forward Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 43: Navigating The Menu System

    • Select the item and press Ok. • Press the shortcut key. The selected menu opens. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 44: Navigating The Audio Menu

    "Labeling a feature key" (page 57). • Select and open Options. See "Using the Options menu" (page 57). Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 45: Navigating The Time Menu

    From the main menu, select and open User. The User menu opens. Perform one of these actions: Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 46 "Viewing, disabling, or enabling the auto login feature" (page 68). • Select and open Password. "Changing your password" (page 68). —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 47: Using The Audio Menu

    If you have permission, and want to edit you audio profile, press Ok. A list of available profiles appears. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...

  • Page 48: Changing The Default Volume

    Follow this procedure to reset the default volume of the handset, the headset, or the handsfree speaker. Step Action From the main menu, select and open Audio. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 49: Selecting A Ring Tone

    Press Stop to stop the ring tone from playing. To select a ring tone, press Apply. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 50 50 Using the Audio menu Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 51: Adjusting The Contrast And Brightness Of The Display

    The level decreases or increases each time you press the key. Stop pressing the key when you find the contrast or brightness you like. Press Exit. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 52 52 Adjusting the contrast and brightness of the display The current contrast level is saved and you return to the previous screen. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 53: Using The Feature Menu

    Follow this procedure to open the Assign menu. Step Action From the main menu, open the Feature menu. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 54: Defining The Key Type

    To change Central to Local, select Local. • To change Local to Central, select Central. Press Ok. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 55: Assigning A Directory Entry To A Feature Key

    You can answer the call immediately without searching for the screen. Follow this procedure to enable or disable the autoscroll feature. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...

  • Page 56: Enabling Or Disabling The Inbox

    Press Ok. A check mark appears beside the item to indicate your choice. You return to the Assign menu. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 57: Labeling A Feature Key

    The Options menu opens. —End— Enabling or disabling auto hide Follow this procedure to enable or disable auto hide. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 58: Selecting The Default Line Key

    Press Ok. The selected key is now your default line key. You return to the Options menu Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 59: Resetting The Feature Key To The Default Settings

    Press Yes. The keys are reset to the default settings. You return to the Feature menu. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 60 60 Using the Feature menu Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 61: Selecting The Language

    The terminal now displays text in the selected language. Press Cancel. You return to the main menu. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 62 62 Selecting the language Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 63: Using The Time Menu

    The time displayed changes to that of the selected zone. —End— Enabling Daylight Saving Time Follow this procedure to enable Daylight Saving Time. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 64: Disabling Daylight Saving Time

    Follow this procedure to set the time format the terminal uses to display the current time. The time format choices are: • 12-hour clock • French Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 65: Setting The Date Format

    To enable a format, select it and press Ok. The date is displayed in the selected format. You return to the previous screen. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...

  • Page 66: Resetting The Default Time

    Confirm the action. The terminal reverts to the default time settings. You return to the previous screen. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 67: Using The User Menu

    Joint—the ability to operate in a joint session with an m6350 Softclient is enabled. Step Action From the main menu, open the User menu. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 68: Viewing, Disabling, Or Enabling The Auto Login Feature

    A check mark appears beside the item you selected. You return to the Auto Login screen. —End— Changing your password Follow this procedure to change your password. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 69 The password is changed and you return to the previous menu. Use the new password the next time you log on. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...
  • Page 70 70 Using the User menu Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 71: Testing The Local Mode

    The terminal transitions to its secondary IP address and temporarily disconnects from the IP Client Manager. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 72 72 Testing the local mode Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 73: Performing A Firmware Upgrade

    The Upgrade confirmation screen appears. Confirm the action. A second confirmation screen appears. Press Yes. The firmware is downloaded. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 74 74 Performing a firmware upgrade Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 75: Using The Directory

    To add or edit the number, perform these steps: a. From the New Entry menu, select and open Number. b. Enter the number. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...

  • Page 76: Deleting An Entry From The Directory

    Step Action Press the directory key to access the Directory menu. The directory opens. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 77: Making A Call Using The Directory

    From the Directory list, select the name or number that you want to call. Press Ok. The Dial screen appears. Press Ok. The number is dialed. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 78 78 Using the directory Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 79: Using The Inbox

    Using the Inbox Follow these procedure to use the Inbox. The IP Phone 2007 has a dedicated fixed key for the Inbox. The system logs the incoming key number, time and date, as well as the display shown on the IP Phone at the time of the incoming call. The information from the display is captured only if the call lasts for more than two seconds.

  • Page 80: Viewing Inbox Call Information

    Follow this procedure to select a number from the Inbox and save it to the directory. Step Action Press the Inbox key. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 81: Using The Inbox To Make A Call

    "Making a call using predial" (page 30). —End— Resetting the Inbox Follow this procedure to delete the contents of the Inbox. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 82 From the History menu, select Reset Inbox. Press Ok. The calls in the Inbox are deleted. You return to the previous menu. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...

  • Page 83: Using The Outbox

    Using the Outbox Follow the procedures in this section to use the Outbox feature. The IP Phone 2007 has a dedicated fixed key for the Outbox. Information about outgoing calls is stored in the Outbox. The system logs the outgoing key number, time, and date.

  • Page 84: Viewing Outbox Call Information

    The Outbox screen appears, showing a list of the 10 most recent outgoing calls. Select a number from the list. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...

  • Page 85: Using The Outbox To Make A Call

    From the History menu, select Reset Outbox. Press Ok. The calls in the Outbox are deleted. You return to the previous menu. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 86 86 Using the Outbox Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 87 To decrease the time of the sleep timer from the default value of 1h (one hour), press Down beside the Sleep in label. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...
  • Page 88 Press Exit to return to the main display. The sleep timer is reset. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 89 To define your own label for a key, perform these actions: • Press twice on the associated field in the Label column. Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks...
  • Page 90 You return to the Preferences menu. To return to the main display, press Exit again. —End— Procedure job aid Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 91 Follow this procedure to use the on-screen keyboard to enter text. You may also use the dialpad to enter text. See "Using the dialpad to enter text" (page 93). "IP Phone 2007 components" (page 10) for the location of the keyboard icon. Step Action Press the keyboard icon.
  • Page 92 92 Using the on-screen keyboard to enter text Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 93 • Scroll through the list and select a symbol. • Press Ok to enter the symbol. —End— Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 94 94 Using the dialpad to enter text Procedure job aid Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 95 Use Table 1 to keep track of the feature Access Codes. Feature Access Code Feature Access Code Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 96 96 Access Code summary Carrier VoIP Nortel IP Phone 2007 User Guide NN10300-020 01.02 Standard (I)SN09U 20 October 2006 Copyright © 2006, Nortel Networks Nortel Networks Confidential...
  • Page 98 Nortel Networks, the holder is granted no rights to use the information contained herein. This is the Way, This is Nortel, Nortel, the Nortel logo, the globemark design, and the NORTEL NETWORKS corporate logo, are trademarks of Nortel Networks. All other trademarks are the property of their respective owners. All rights reserved.
