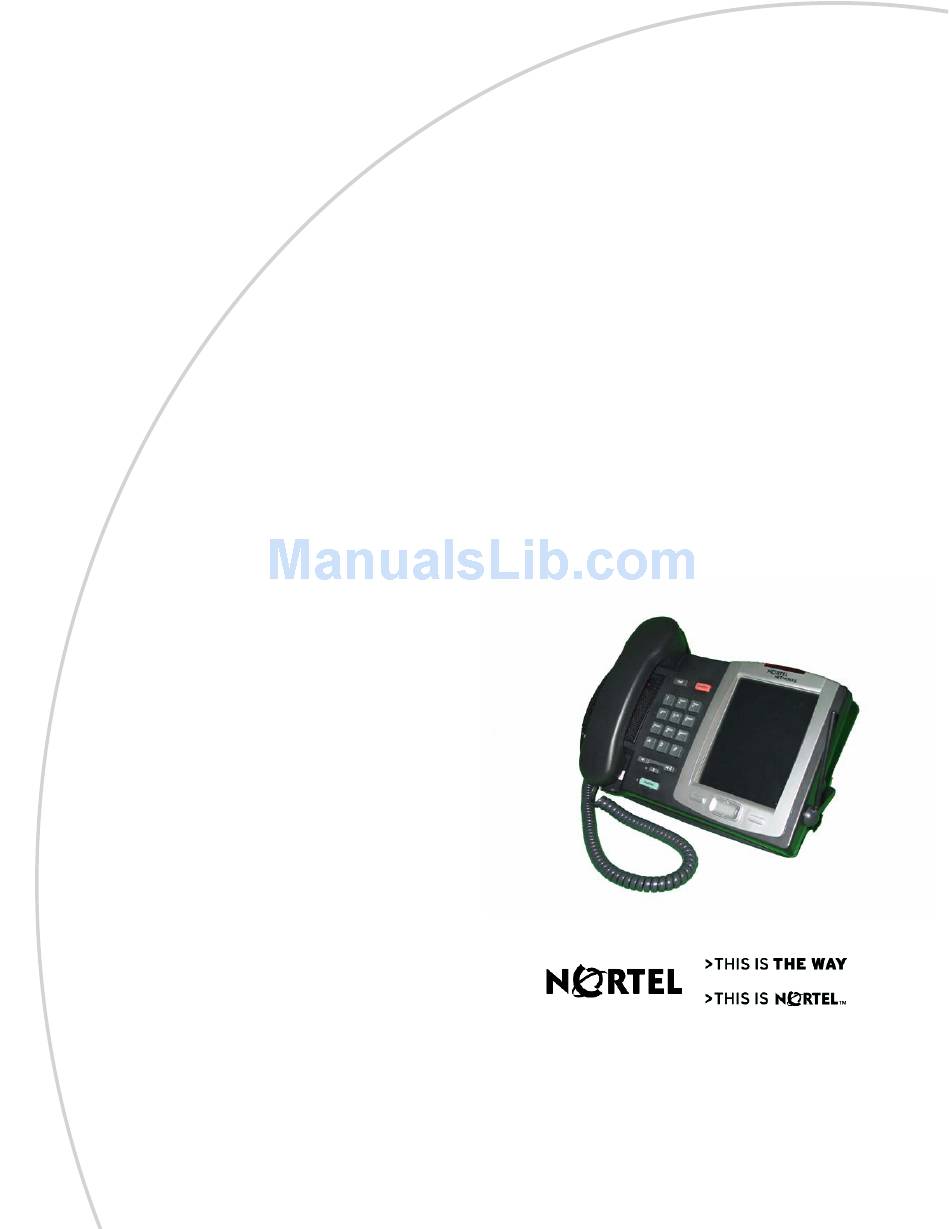

- Page 1 Part No. NN-10300-019 June 2005 Business Communications Manager IP Phone 2007 User Guide Standard 1.00...
- Page 2 Nortel Networks NA Inc. Trademarks *Nortel, Nortel (Logo), the Globemark, and This is the way, This is Nortel (Design mark) are trademarks of Nortel Networks. *Microsoft, MS, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation.
-
Page 3: About The Ip Phone 2007
About the IP Phone 2007 The Nortel IP Phone 2007 brings voice and data to the desktop by connecting directly to a Local Area Network (LAN) through an Ethernet connection. The IP Phone 2007 supports call processing features, and can work with an External Application Server to display web-based and interactive applications on the large, color LCD touch screen. -
Page 4: Ip Phone 2007 Buttons, Display, And Lights
Table 1 gives a description of the buttons, display, and lights identified in the figure. Figure 2 IP Phone 2007 Table 1 IP Phone 2007 button, display, and light descriptions Hold button Places an active call on hold. Goodbye button Ends an active call. -
Page 5: Ip Phone 2007 Lcd
• Tools and Navigation Area You perform point-and-click operations on the IP Phone 2007 using the touch panel. The touch panel is used with the graphical user interface (GUI) to present keys directly on the display. You can activate all Line/DN keys, feature keys, and soft keys by using the touch panel. -
Page 6: Programmable Line (Dn)/ Feature Soft Key Area
About the IP Phone 2007 Figure 3 shows an example of the display and describes each area. Figure 3 Display area Programmable line (DN)/feature soft keys Information area Soft key area Feature key area Tools/Navigation area Note: Your display can differ slightly from the above picture. -
Page 7: Feature Keys Area
About the IP Phone 2007 Feature keys area The Feature keys area contains access to the fixed features of the phone. Table 2 describes the keys and what they do: Table 2 Feature keys Key label Key Icon Description Inbox Open your voice mailbox. -
Page 8: Calibrate The Touch Panel
For more information, see your System Administrator. Touch panel You can perform point-and-click operations on your IP Phone 2007 using the touch panel. The touch panel is used with the graphical user interface (GUI) to present keys directly on the display. -
Page 9: Cleaning The Telephone
Using anything other than a soft, dry cloth can contaminate telephone components and cause premature failure. Configure IP Phone Local Options Your IP Phone 2007 has both local and server-based options. The local options cover the following entries in the Tools menu: •... -
Page 10: Enter Text Using The Telephone Dialpad
You use soft keys to access text when you work with such applications as Personal Directory, Redial List, and Callers List. Table 5 describes the soft key editing functions on the IP Phone 2007. Table 5 Editing soft key description Soft key... -
Page 11: Enter Text Using The Pop-Up Keyboard
Place the current call on Hold Mute the current call Volume Up Volume Down Copy Quit Telephone setup This section describes the IP Phone 2007 display features: • Display contrast • Language choice • Ring type Note: For more information about the features available to your telephone and how to use them, refer to the Business Communications Manager Telephone Feature Card. -
Page 12: Display Contrast Level
About the IP Phone 2007 Display contrast level Adjust the contrast for the telephone display. Feature Enter *7 using the telephone dialpad. to view the levels. DOWN to select a level. Language choice Select the Primary Language for the telephone display. -
Page 13: Features And Soft Keys
Features and soft keys This section describes some of the IP Phone 2007 soft keys and call features: • Basic call features • Navigation key • Programmable line (DN)/feature soft keys Note: For more information about the features available to your telephone and how to use them, refer to the Business Communications Manager Telephone Feature Card. -
Page 14: Answer Calls
Features and soft keys Internal calls using intercom soft keys Lift the handset. Tap an intercom soft key. Dial the extension number. Note: Contact your System Administrator for a list of extension numbers. Answer calls When your telephone rings and the light flashes, or an intercom or line soft key indicator flashes: •... -
Page 15: Programmable Line (Dn)/Feature Soft Keys
Handsfree, or headset calls. Time offset When your IP Phone 2007 is located in a different time zone from your system, the display shows the system time, not the local time. The Time Offset feature allows you to adjust the time that appears on the display. -
Page 16: Erase Soft Keys
Features and soft keys External autodial Tap Feature. Enter *1 using the telephone dialpad. Tap a memory soft key. Dial the external number. Tap OK to store the number. Internal autodial Tap Feature. Enter *2 using the telephone dialpad. Tap a memory soft key. Dial the extension number. - Page 17 Saving is complete You now go to step 8. Save changes? To abandon the changes, tap the Exit soft key. The system responds and the Yes and No soft keys display. Choose one of the following: IP Phone 2007 User Guide...
- Page 18 Features and soft keys Tap the Yes soft key to save the changes. b Tap the No soft key to abandon the changes and exit to the Preferences menu. Tap the Exit soft key to return to the Preferences menu. Tap the Exit soft key to return to the main display.
