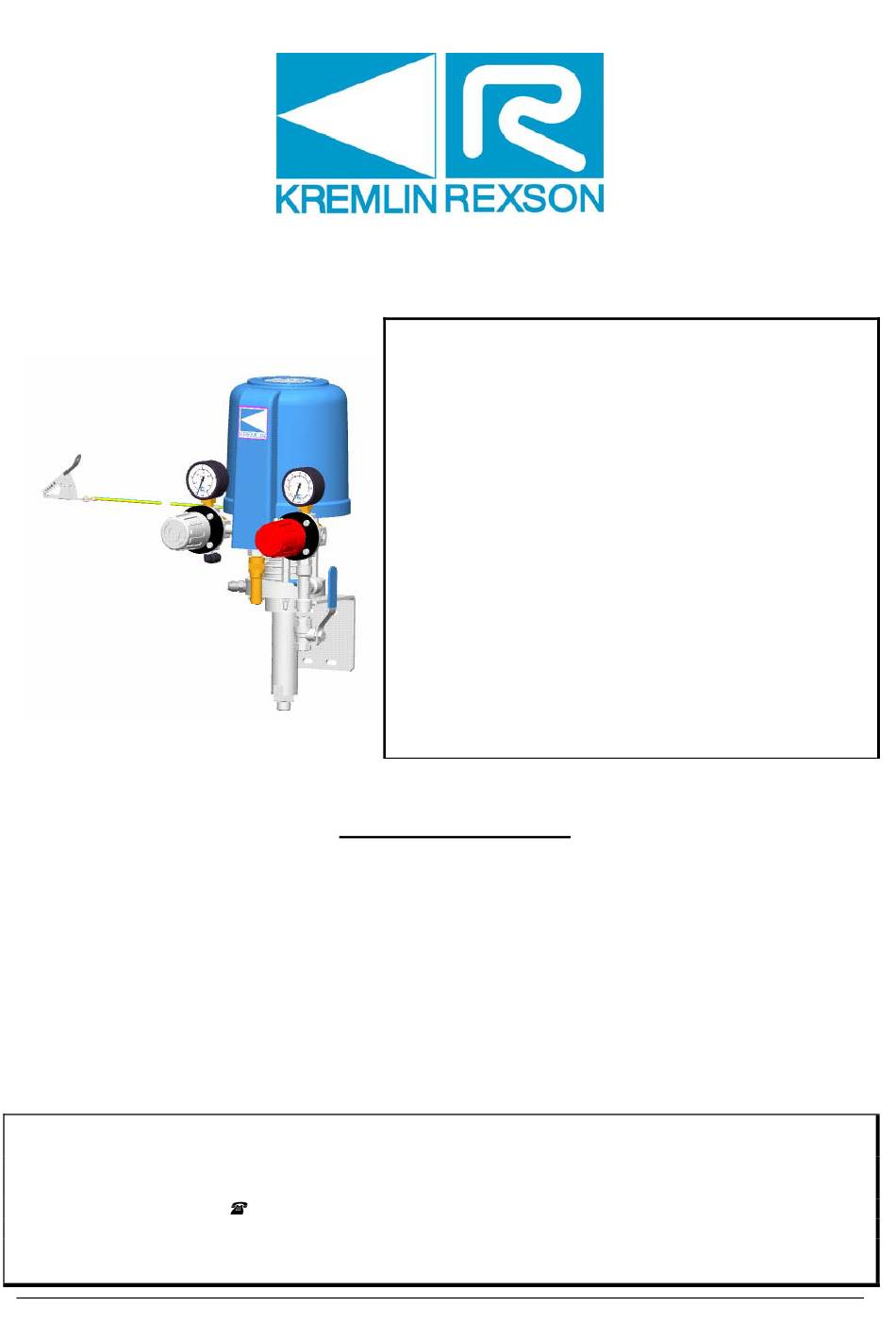

AIRMIX ® PUMP
20-15
Disassembly / Reassembly
ORIGINAL MANUAL
IMPORTANT : before assembly and start-up, Please read and clearly understand all documents
.
relating to this equipment (professional use only)
PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR
NOTICE.
KREMLIN - REXSON
l
150, avenue de Stalingrad
93 245 - STAINS CEDEX – France
: 33 (0)1 49 40 25 25
Fax : 33 (0)1 48 26 07 16
www.kremlin-rexson.com
KREMLIN REXSON
N° : 578.046.110-UK-1004
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kremlin-Rexson AIRMIX 20-15
Summary of Contents for Kremlin-Rexson AIRMIX 20-15
- Page 1 PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. KREMLIN - REXSON 150, avenue de Stalingrad 93 245 - STAINS CEDEX – France : 33 (0)1 49 40 25 25 Fax : 33 (0)1 48 26 07 16 www.kremlin-rexson.com KREMLIN REXSON N° : 578.046.110-UK-1004...
- Page 2 CAUTION : Before any action on the pump, shut off the compressed air supply and depressurize the systems. FLUID SECTION OR AIR MOTOR REPLACEMENT The pump is manufactured under the ATEX agreement and can not be modified. KREMLIN REXSON will not be held responsible for any failure to comply with that instruction.
- Page 3 MOTOR Disassemble the hood (23) by removing the 3 screws (24). Disassemble the cover (19) by removing the 4 screws (21). Unscrew motor valve (15) by holding on the control fork assembly (9). Reinstall the new air motor valve (15) and block it on the control rod (9) via the two flat parts located at its end.
- Page 4 FLUID SECTION Index Instruction Description Part number PTFE grease 'TECHNILUB' grease (10 ml) 560.440.101 Graphite grease box Graphite grease 560.420.005 (1 kg / 2.204 lb ) Medium strength Loctite 577 Aneorobic Pipe sealant SUCTION VALVE Unscrew the ball seat (10), the valve comes out the cylinder. The ball cage (14) is secured on the seat (10) by means of the circular rush (13).
- Page 5 CARTRIDGE Unscrew the cylinder (7) and pull it downwards. Disassemble the piston rod (20) from the air motor by means of the axis. Remove the circlips (3) placed into the flange cup (1) and pull the cartridge (4) downwards to remove it.
