- Page 1 Portable LFP Battery Charger Quick Guide SKU: RBC20A1P VERSION B0...
-
Page 2: General Safety Information
Indicates a potentially dangerous condition. Use WARNING extreme caution when performing this task. Indicates a critical procedure for the safe and proper CAUTION installation and operation of the battery. Indicates a procedure or function that is important to NOTE the safe and proper operation of the battery. Disclaimer The manufacturer accepts no liability for any damage caused by: Force majeure including fire, typhoon, flood, earthquake, war,... - Page 3 Any uncovered battery material, such as electrolyte or powder, that has contacted skin or the eyes must be flushed out with plenty of clean water immediately. Seek medical attention afterwards. Spills on clothing should be rinsed out with water. DO NOT touch the exposed electrolyte or powder if the battery casing is damaged.
-
Page 4: Identification Of Parts

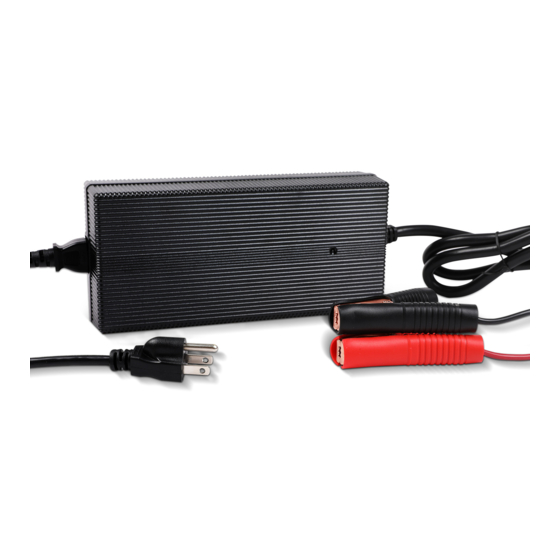

Renogy 20A AC to DC Charger (RBC20A1P) is an automatic and portable charger intended for 12V LFP batteries. This charger includes 12AWG alligator clips and outputs power based on the power, voltage, and current condition of the battery. The charger... - Page 5 2.52 in / 64 mm 9.17in / 233mm 5.90 in / 150mm 7.87 in / 200mm 4.33 in / 110mm 39.37 in / 1000mm 12AWG...
- Page 6 Never alter AC cord or plug provided on the charger. WARNING IMPORTANT: Place the charger on a hard-flat surface. Do not place it on a plastic, leather or textile surface. Locate the charger as far away from the battery as DC cables permit.
- Page 7 LED Status Description This indicates the charger is charging Solid red normally. There are two conditions when the indicator light is always green. Condition 1: When the charger is first connected to the AC utility terminal, but the AC charger output is not connected to Always-on the battery (meaning the charger is in an green light...
- Page 8 Condition Steps to Take 1. When there is a short circuit between the two poles of the ring terminals in the battery charger, Short Circuit Protection will be triggered. The charger stops working immediately, and the LED indicator goes out. Short Circuit 2.
- Page 9 Connection Protection 2. Replace the fuse on the connection line immediately. The specification of the fuse is 250V 30A. Model RBC20A1P Input Voltage 100V to 240V AC, 50 Hz/60 Hz Input Amps 5A Max Output Voltage 14.5 (±0.1)V DC 20 (±0.5)A...
- Page 10 14.6V 12.8V Voltage 2A 0.1A 0A Current Manufacturer: RENOGY New Energy Co.,Ltd. Address: No.66, East Ningbo Road Room 624-625 Taicang German Overseas Students Pioneer Park JiangSu 215000 CN Manufacturer: RENOGY New Energy Co.,Ltd. Address: No.66, East Ningbo Road Room 624-625...
