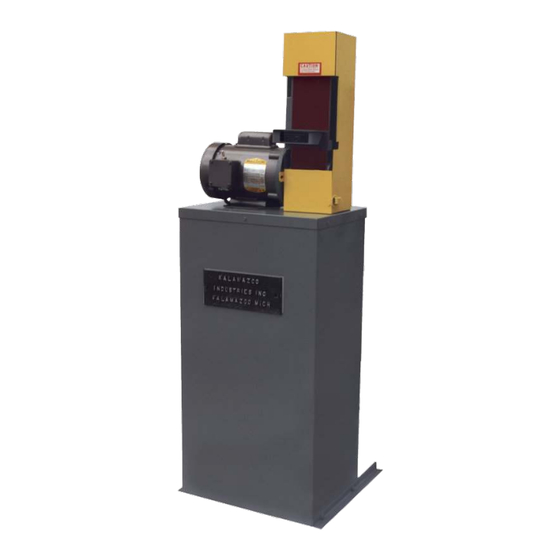

- Page 1 KALAMAZOO INDUSTRIES, INC. KALAMAZOO, MI PH: (269) 382-2050 www.kalamazooind.com S4SV BELT SANDER AND VACUUM MANUAL MADE IN USA...
- Page 2 KALAMAZOO INDUSTRIES, INC. KALAMAZOO, MI PH: (269) 382-2050 www.kalamazooind.com INSPECTION If these goods are damaged in transit, the DELIVERING TRANSPORTATION COMPANY is required by law to make notation of damages on the freight bill. If in your opinion, there may be concealed damage, they are required to make an inspection after goods are unpacked.
- Page 3 KALAMAZOO INDUSTRIES, INC. KALAMAZOO, MI PH: (269) 382-2050 www.kalamazooind.com VACUUM MAINTENANCE 1. CLEAN VACUUM OUT AFTER EVER YOU 2. CLEAN CLOTH FILTER CLEAN AND CHANGE WHEN FILTER IS DAMAGED 3. DON’T MIX MATERIAL. MIXING MATERIALS WILL CAUSE A FIRE WITHIN THE VACUUM.
-
Page 4: Warranty
(unless otherwise indicated) by Kalamazoo Industries. Credit upon inspection at Kalamazoo Industries. All returns will be subject to a 10% restock charge. Used merchandise is non- returnable. No returns will be accepted after one year of invoice date. - Page 5 ITEM PART NUMBER DESCRIPTION QTY. 1/2HP MOTOR FOR 2FSM, S4S AND S612V VAC 486-022 MOTOR 291-002 CAST IRON FRAME WITH PLATEN FOR S4, S4S, DS10-4 IDLER PULLEY SHAFT IS CENTERED IN YOKE ARMS. SHCA037012 3/8-16 X 3/4 SHCS YOKE SHAFT FOR S4 SANDER IDLER PULLEY, DRIVE PULLEY, 960-002YA YOKE AND TENSION SHAFT ASSEMBLY...
- Page 6 TITLE: CHECKED FRACTIONAL PLEASE CONSULT DRAWING 124-001 DCV-4 DUST COLLECTOR ANGULAR: MACH BEND ENG APPR. TWO PLACE DECIMAL FOR S4SV APPLICATION THREE PLACE DECIMAL MFG APPR. FOR CABINET DETAILS INTERPRET GEOMETRIC Q.A. PROPRIETARYAND CONFIDENTIAL TOLERANCING PER: COMMENTS: THE INFORMATION CONTAINED IN THIS...
