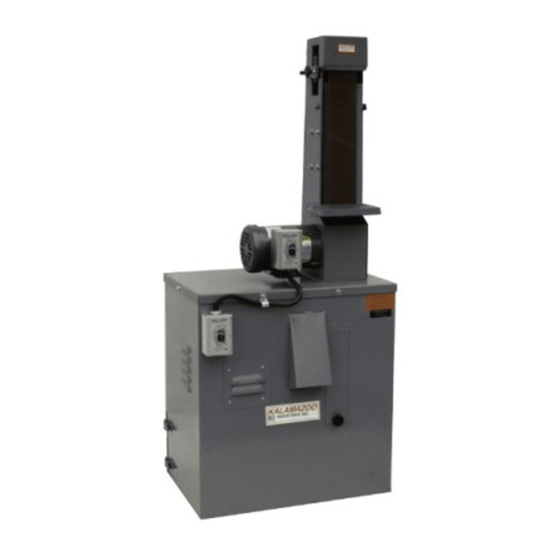

- Page 1 INSTRUCTION MANUAL S460V BELT SANDER AND VACUUM MADE IN USA...
- Page 2 Electric motors are warranted by the manufacturer and will be repaired by the nearest repair station or replaced. Defective motors are not be returned to Kalamazoo Industries. Please call for instructions (269) 382-2050. Written authorization must be obtained before returning merchandise.
- Page 3 BASIC OPERATION Belt chaning - use lever #33 to replease sanding belt tenion. Pull lever to compress spring, remove and replace sanding belt. Push lever back to tension sanding belt. Belt tracking - use tracking knob #43 to track/center the sanding belt. Rotate sanding belt by hand to be sure of sanding belt centering.
- Page 4 X 4 PLACES X 2 PLACES 0.25 4.00 SECTION D-D CUT A HOLE THROUGH THE BAFFLE PLATE AS ANNOTATED. WELD #2, S460V TOP VIEW OF DCV-6 BAFFLEPLATE IN PLACE AS SHOWN. MODIFICATION AND INSTALLATION OF X 4 PLACES BAFFLE PLATE...
