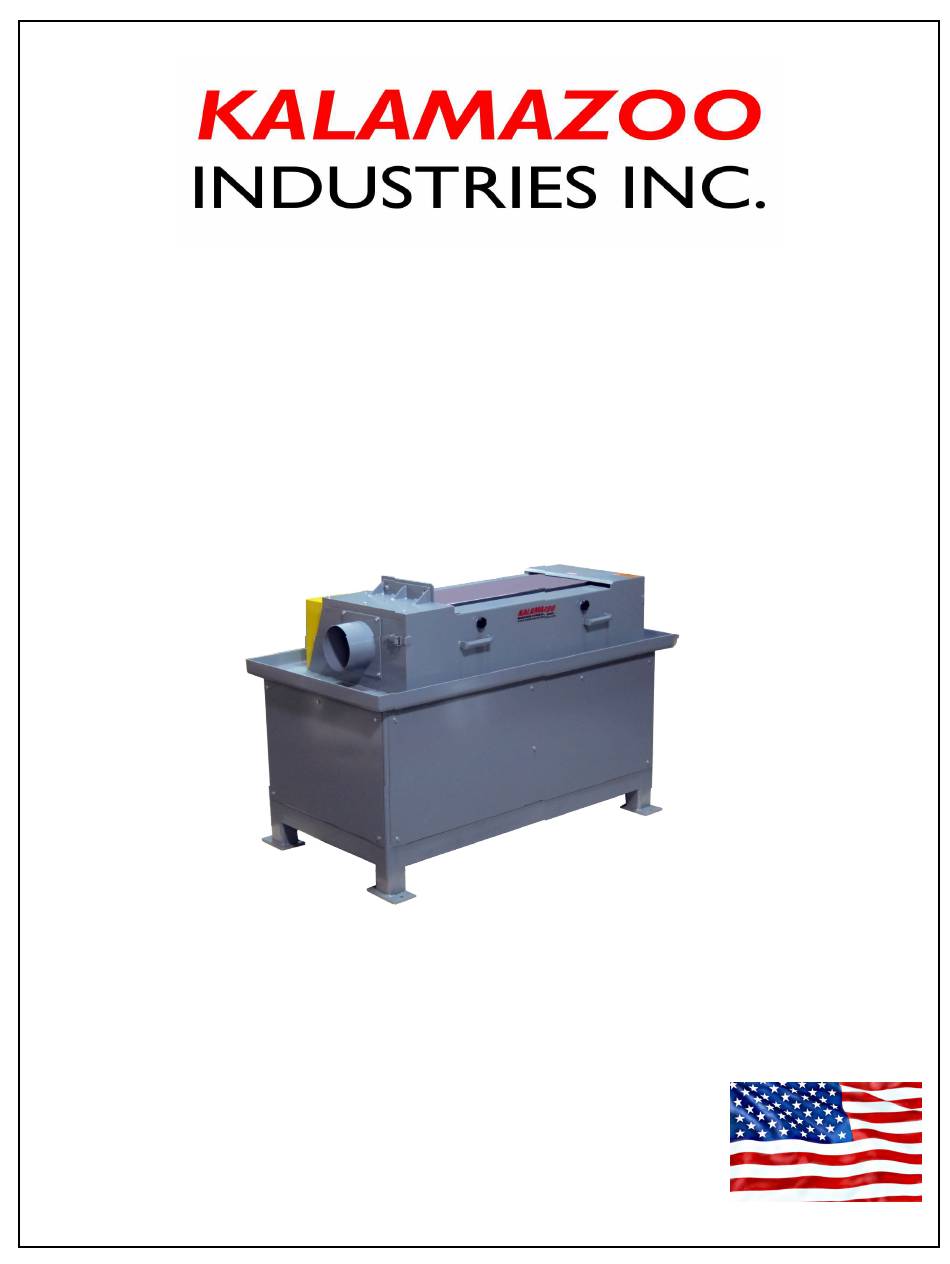

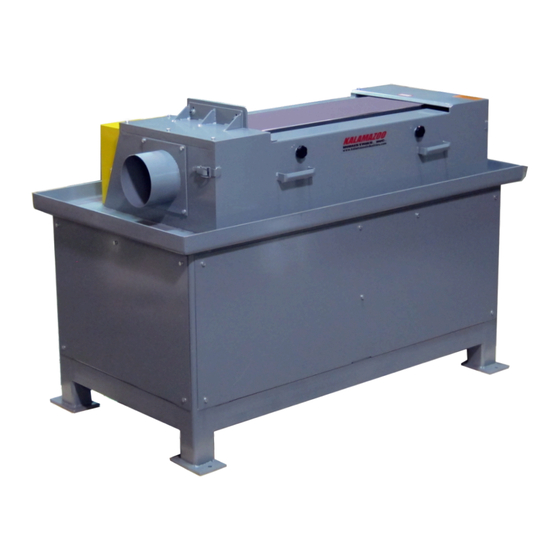

- Page 1 INSTRUCTION MANUAL S10HD 10” x 90” Horizontal Belt Sander Contact Information PH: (269) 382-2050 Or through our website contact form. MADE IN USA...
- Page 2 Electric motors are warranted by the manufacturer and will be repaired by the nearest repair station or replaced. Defective motors are not be returned to Kalamazoo Industries. Please call for instructions (269) 382-2050. Written authorization must be obtained before returning merchandise.
-
Page 3: Maintenance
OPERATING INSTRUCTIONS Belt tension: You control the belt tension with air pressure. The standard air pressure required is 50-55 PSI. Connect shop air to air regulator. Set regulator gauge between 50-55 PSI for best performance. Too much air pressure will stretch the sanding belt; too little air pressure will result in poor tracking. - Page 4 inch...
- Page 5 S10- FRAME STAND-OFF FOR S10 AND S14 S14FRAMESTANDOFF SANDERS X 4 BELTS 51 51 51 51 DRIVE PULLEY DETAILS 3VX500 V BELT FOR S10HD AND 051-027 S10HW HHC5025008 1/4-20 X 1/2 HHCS GR5 Z SLWZ025 1/4 SPLIT L/W Z WORK STOP FENCE FOR S10...
