Summary of Contents for Kalamazoo DS12

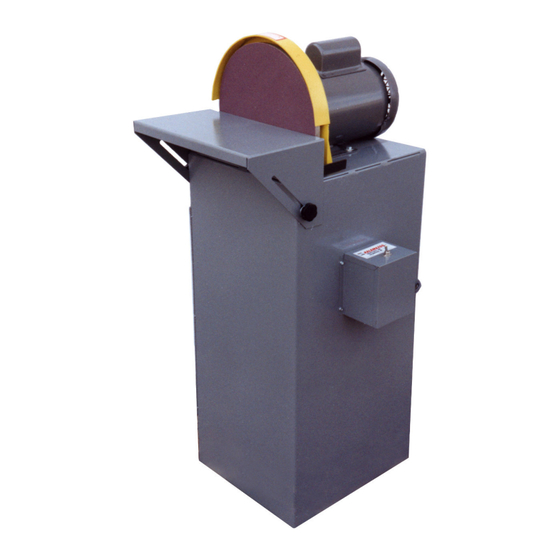

- Page 1 INSTRUCTION MANUAL DS12 & DS12V DISC SANDER KALAMAZOO INDUSTRIES, INC. 6856 E K Avenue Kalamazoo, MI 49048 (269) 382-2050 Phone (269) 382-0790 Fax www.kalamazooind.com...
- Page 2 DISC SANDER SAFETY DISC SANDERS...
- Page 3 DISC SANDER SAFETY CONTINUED VACUUM BASE INSTRUCTIONS FOR DS12V VACUUM BASE • Thoroughly clean vacuum base daily and prior to sanding different materials. DON’T mix materials. Mixing materials will start a fire in the vacuum cabinet. • • Change cloth filter (5X878) at least once a week or when sanding different materials. •...
-
Page 4: Basic Operation
Disc Size: 12” 1. Be sure AC incoming power matches the DS12 12” disc sander. The DS12 ships standard as 1PH 115V. The motor is dual voltage so it can be wired to 1PH 230V if needed at the motor junction box. - Page 5 12” 80 GRIT DISC KD12100 12” 100 GRIT DISC 829-016 TABLE ASSY. 441-017 LOCKING KNOB SPACER WELD NUT 486-013 1HP 1PH MOUNTING SCREWS SET SCREW KALAMAZOO INDUSTRIES, INC. 6856 E K Ave Kalamazoo, MI 49048 (269) 382-2050 Phone (269) 382-0790 Fax www.kalamazooind.com...
