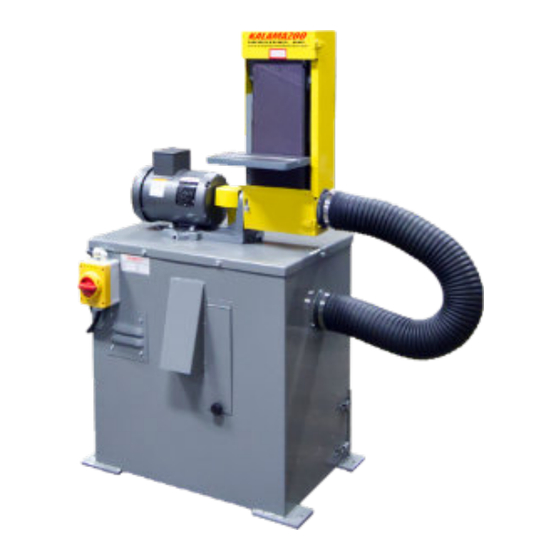

- Page 1 KALAMAZOO INDUSTRIES, INC. KALAMAZOO, MI PH: (269) 382-2050 www.kalamazooind.com S6MV BELT SANDER AND DUST COLLECTOR MANUAL MADE IN USA...
-
Page 2: Warranty
All material must be new and unused in the original packaging. Material must be sent back prepaid (unless otherwise indicated) by Kalamazoo Industries. Credit upon inspection at Kalamazoo Industries. All returns will be subject to a 10% restock charge. Used merchandise is non-returnable. No returns will be accepted after one year of invoice date. - Page 3 KALAMAZOO INDUSTRIES, INC. KALAMAZOO, MI PH: (269) 382-2050 www.kalamazooind.com WARNING! TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN, ANY LIQUID OR MOISTURE. INSPECTION If these goods are damaged in transit, the DELIVERING TRANSPORTATION COMPANY is required by law to make notation of damages on the freight bill.
-
Page 4: Dust Collector
KALAMAZOO INDUSTRIES, INC. KALAMAZOO, MI PH: (269) 382-2050 www.kalamazooind.com INSTRUCTIONS CONTINUED Sanding head position: sanding head can be positioned from vertical to horizontal with any angle in between. Loosen 5/16” socket head cap screws located above and below coupling (28) in base (1) while holding sander head firmly. - Page 5 S6 YOKE ASSEMBLY INCLUDING IDLER ITEM NO. PART NUMBER DESCRIPTION QTY. 960-006YA ITEM NO. YOKE AND TENSION SHAFT 050-020 S6 BASE 960-006YA YOKE W SHAFT 560-015 S6 DRIVE PULLEY INCLUDED WITH 701-018 S6 DRIVE SPINDLE 700-004 S6 TENSION SHAFT 386-013 S6 BEARING HOUSING ROLA018032 3/16 X 2 ROLL PIN 044-007...
- Page 6 SEE S6 DRAWING FOR S6 BELT SANDER DETAILS DRAWN DIMENSIONS ARE IN INCHES TOLERANCES: TITLE: CHECKED FRACTIONAL ANGULAR: MACH BEND MODEL S6MV ENG APPR. TWO PLACE DECIMAL THREE PLACE DECIMAL MFG APPR. ASSEMBLY SEE DCV-6 DRAWING FOR DCV-6 DUST COLLECTOR DETAILS Q.A. INTERPRET GEOMETRIC...
