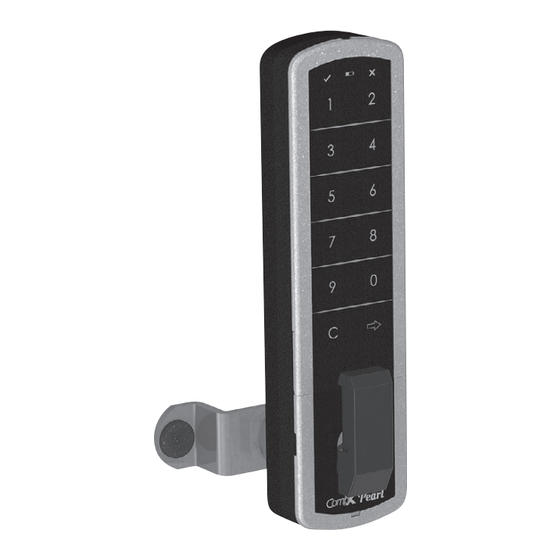

KEYPAD version
Pearl
– installation instructions
Electronic push button cabinet lock
Thank you for purchasing the CompX
for locking cabinet doors and drawers. It can mount to cabinet doors or drawers
with a material thickness of 1/32" to 1-7/16" .
Powered by 2-AAAA batteries (included),
Pearl operates using a 4 to 8 digit code.
Operation is simple: type a valid code
and press
knob to the unlocked or locked position.
Pearl is easy to install, and offers:
w Programmable user
and supervisor codes
w Programmable modes of operation
w Programmable reset features
1
(enter). Then just turn the
Pearl
. The Pearl is an innovative solution
®
™
Pearl is intended for interior use only.
Operating Temperature: 50°F – 120°F
(10°C – 48°C)
Note:
It is strongly recommended that
batteries be replaced on an annual
basis. In the event the batteries are
exhausted, they can be replaced via
the external battery compartment.
Pearl — Installation instructions: KEYPAD version
Advertisement
Related Manuals for COMPX Pearl KEYPAD
Summary of Contents for COMPX Pearl KEYPAD

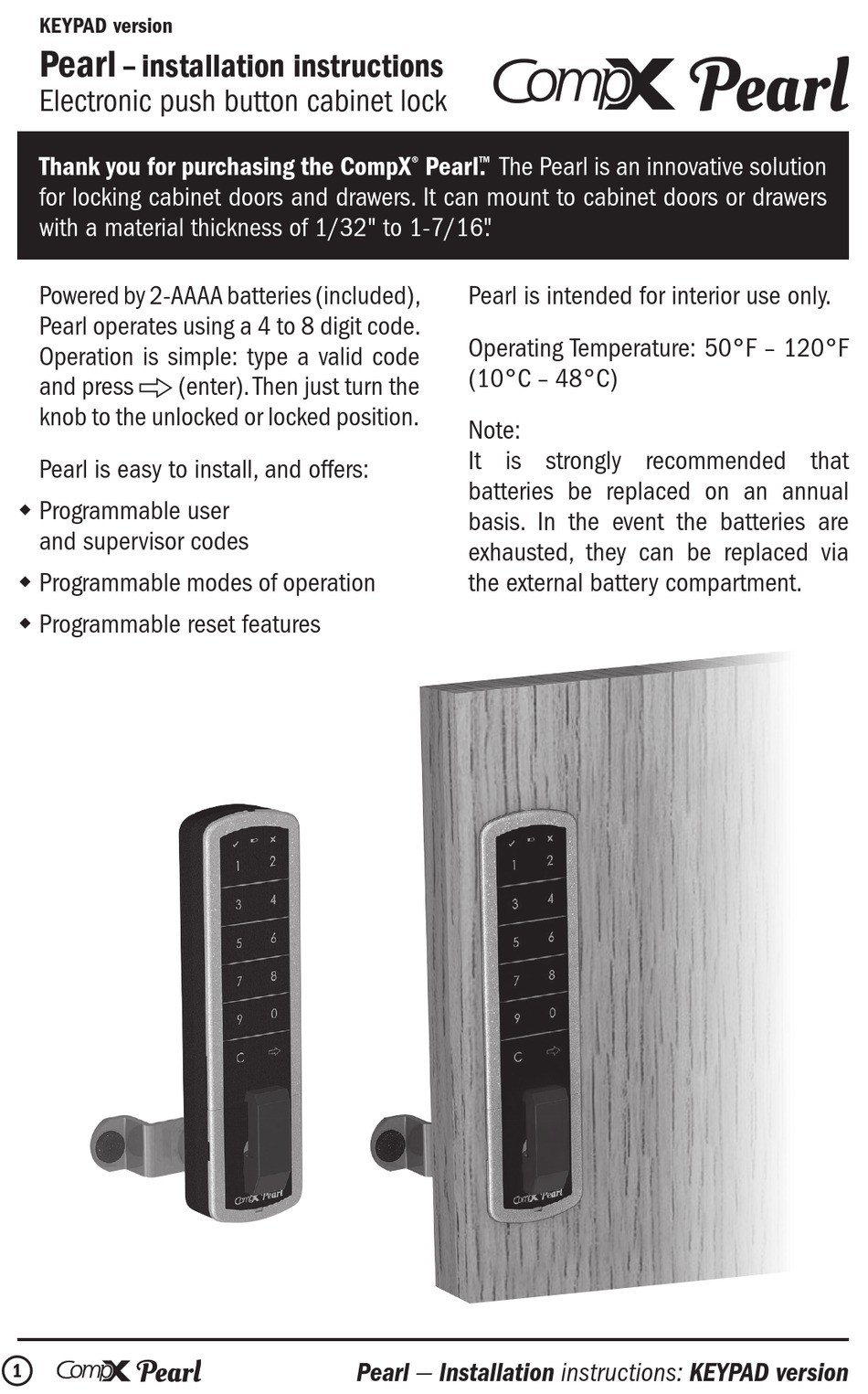

- Page 1 KEYPAD version Pearl – installation instructions Electronic push button cabinet lock Thank you for purchasing the CompX Pearl . The Pearl is an innovative solution ® ™ for locking cabinet doors and drawers. It can mount to cabinet doors or drawers with a material thickness of 1/32"...
- Page 2 KEYPAD version Pearl – installation instructions Electronic push button cabinet lock Packaged Components Contents – Manual Lock Version: 2 AAAA alkaline batteries 1 Offset locking cam / 1 Straight locking cam FlexaCam adapters Collar – Intended for surface mount applications Mounting hardware Each lock is shipped with two green The Pearl...
- Page 3 KEYPAD version Pearl – installation instructions Electronic push button cabinet lock Powering Up and Battery Installation Pearl is shipped with two AAAA batteries. To change batteries: While Pearl features a low battery 1. Slide down housing base, see figure 1. indicator, annual battery replacement 2.
- Page 4 KEYPAD version Pearl – installation instructions Electronic push button cabinet lock Programming – Introduction Pearl is easy to program and operate. complete programming instructions Type the user code (factory default prior to making any changes. Remember 1234) and press (enter) to unlock to keep track of any programming or lock the cabinet.
- Page 5 KEYPAD version Pearl – installation instructions Electronic push button cabinet lock Programming – Introduction continued Follow the directions below to unlock and lock the Pearl. To operate the Pearl: To unlock, type a valid code, press (enter) and rotate knob clockwise 90° . To lock, rotate knob 90°...
- Page 6 KEYPAD version Pearl – installation instructions Electronic push button cabinet lock Changing the User Code To change the user code, follow the 1. Place Pearl into programming steps on page 5 to enter programming mode (see page 5). mode. 2. Press 1 and then press (enter).
- Page 7 Pearl – installation instructions Electronic push button cabinet lock CompX Pearl features several modes of operation. These functions can be changed using the following instructions with a valid supervisor code. Programming Single Use Mode / Standard Mode Single Use Mode allows for a revolving 1.
- Page 8 KEYPAD version Pearl – installation instructions Electronic push button cabinet lock Programming Single Use Timeout ON / Single Use Timeout OFF Warning: Manual Lock - Single Use 1. Place Pearl into programming Timeout ON is a feature to prevent mode (see page 5). users from occupying a shared use a.
- Page 9 KEYPAD version Pearl – installation instructions Electronic push button cabinet lock Reset User Code to Factory Default 1234 (Does not apply to Single Use Mode) To reset the User Code to the factory 1. Place Pearl into programming default 1234 follow the steps on page mode (see page 5).
- Page 10 KEYPAD version Pearl – installation instructions Electronic push button cabinet lock Add User to Specific Memory Slot (03 – 20) The Supervisor code memory location 1. Place Pearl into programming is called Slot 01 and the first User mode (see page 5). code is called Slot 02.
- Page 11 KEYPAD version Pearl – installation instructions Electronic push button cabinet lock Delete User From Specific Memory Slot (03 – 20) The Supervisor code memory location 1. Place Pearl into programming is called Slot 01 and the first User mode (see page 5). code is called Slot 02.
