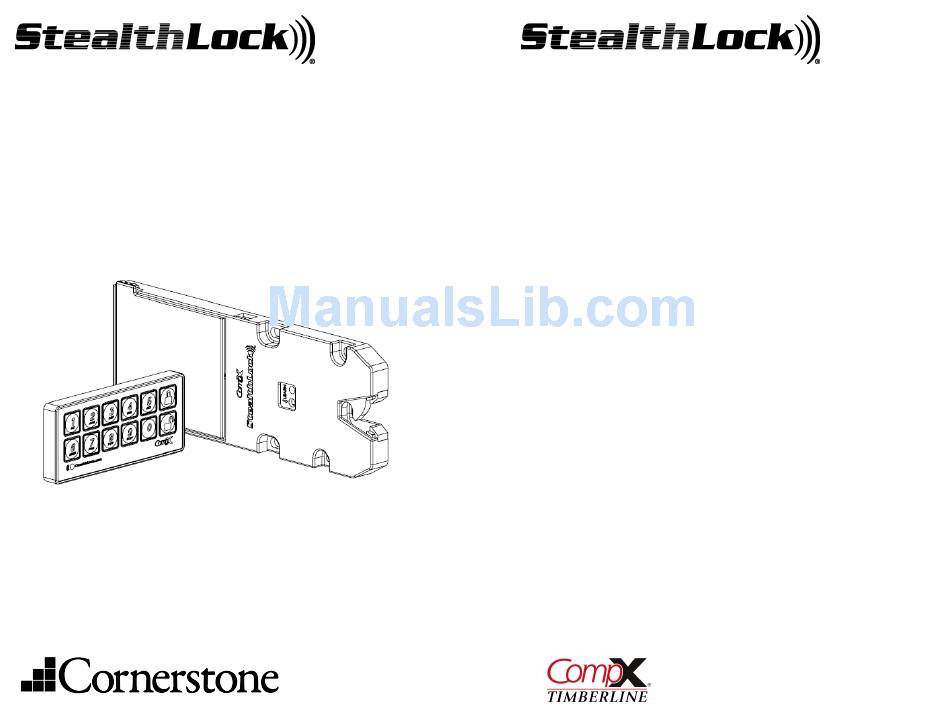

Instruction Manual
DISTRIBUTED BY:
713.839.8586 · www.cabinethardware.com
®

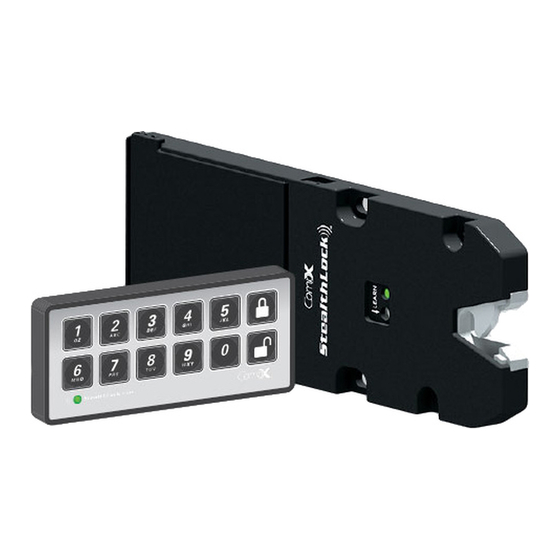

Thank you for purchasing StealthLock
keyless invisible security. Using radio frequency technology, StealthLock
secure almost any wood cabinet door or drawer with little or no changes to the cabinet
design.
®
StealthLock
is battery operated and works with a user established 4 to 8 digit code.
Operation is simple: input your code and press lock or unlock. The Latch can operate any
Receiver Latch within a 15 foot range which allows it to be placed anywhere, leaving no
trace of visible hardware. In addition, the Latch can operate multiple Receiver Latches to
secure an entire room or bank of cabinets.
®
StealthLock
is designed to install and program easily and offers:
Programmable user and supervisor codes
Programmable modes of operation
Programmable reset features
®
StealthLock
is recommended for use on cabinets made from:
Wood
Wood products
Phenolic resin
Glass
®
StealthLock
is NOT intended for:
Metal furnishings or cabinets
Exterior furnishings or cabinets
Applications where temperatures fall below 50° F or above 120° F
®
StealthLock
may be used in households to help protect minors from unsafe materials.
It is strongly recommended that all batteries used by the StealthLock
annual basis. Please mark this date on your calendars to insure replacement. In the event
you have allowed the batteries to die, you will need to forcefully enter the cabinet. The
®
StealthLock
strike plate is designed to shear away at 80lbs of force. A new strike plate
will then be needed to operate the lock.
StealthLock
®
. StealthLock
is an innovative solution for
®
allows you to
®
be replaced on an
®
, Keyless Invisible Security 2
Advertisement
Table of Contents
Related Manuals for COMPX StealthLock SL-100
Summary of Contents for COMPX StealthLock SL-100
- Page 1 ® ® Thank you for purchasing StealthLock . StealthLock is an innovative solution for ® keyless invisible security. Using radio frequency technology, StealthLock allows you to secure almost any wood cabinet door or drawer with little or no changes to the cabinet Instruction Manual design.
- Page 2 ® SL-100 StealthLock Contents Battery Installation – Receiver Latch The Receiver Latch uses 4 AAA batteries that are expected to last 2 years in normal operation (4 open/close cycles per day). 1 – RL-100 6.785 Batteries should be replaced on an annual basis Receiver Latch Screws Included to insure continued reliability.
- Page 3 Battery Installation - Transmitter Pad Installation Instructions – Receiver Latch ® The StealthLock is designed to operate within non-metallic cabinetry. Use with other The Transmitter Pad uses a CR2032 battery that is expected to last 2 years in normal materials may limit or prohibit operation of the lock. We recommend testing the lock if During initial using in a material other than wood.
- Page 4 Installation Instructions – Transmitter Pad Step #3 – Press the learn button Learn on the Receiver Latch until the The Transmitter Pad has a functional range of 15 feet from the Receiver Latch and can be Button yellow LED lights to insure that mounted virtually anywhere on any non-metallic panel.
- Page 5 Programming – Introduction Programming – Introduction ® StealthLock is very easy to use and operate. Once installed, the user enters the user Lock Button TP-100 Transmitter Pad code (factory default 0000) and presses Lock to lock the cabinet. To unlock the cabinet, the user enters the user code and presses Unlock and the cabinet will open.
- Page 6 Programming the User Code Programming the Supervisor Code Use these steps to change your current user code. The factory default code is 0000. User Use these steps to change the current supervisor code. The supervisor code allows the ® codes must be 4 to 8 digits in length. To view a video of these steps, go to owner of the StealthLock to overwrite the user code and change operational modes.
- Page 7 ® StealthLock features several modes of operation and reset ability. These functions can Programming Self Lock Mode / Passage Mode be changed using the following instructions by users who have rights to the supervisor code. Modes and reset can only be modified with knowledge of the supervisor code. Self Lock Mode automatically relocks the Receiver Latch after pressing the unlock button when a valid user or supervisor code is presented.
- Page 8 Programming Learn Disable / Learn Enable Reset Factory Default Settings Learn Disable / Learn Enable Mode allows the supervisor to either allow or not allow a This feature returns the lock to its original factory settings. This will place the Receiver user to program a new user code.
- Page 9 Clear User Pin Code Auxiliary Power ® If desired, the StealthLock Receiver Latch may This feature returns the user code back the factory default setting of 0000. It does not be connected to 120 VAC power using the reset any other mode or feature of the lock. optional RL-AP1 Power Supply There is a 60 second programming time limit to each step.
- Page 10 Transmitter Pad Mounting Accessories Regulatory Information The user is cautioned that changes or modifications not expressly approved by CompX Timberline could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following...
Need help?
Do you have a question about the StealthLock SL-100 and is the answer not in the manual?
Questions and answers
Receiver batteries are dead. Is there a way to access the receiver manually?
To manually access the COMPX StealthLock SL-100 receiver if the batteries are dead, insert a small flat-blade screwdriver into the battery tray slot and press in and down to release the battery tray. Replace the batteries to restore power and resume operation.
This answer is automatically generated
After pressing the learn button the latch is supposed to unlock and then start flashing once, then twice and finally three flashes. The two latches I’m working on now will go straight to 3 flashes without unlocking the latch first.
If the COMPX StealthLock SL-100 goes straight to three flashes without unlocking after pressing the learn button, it indicates that the Learn Disable mode has been set.
This answer is automatically generated
My keypad no longer works do I pair my current lock to my new keypad?
