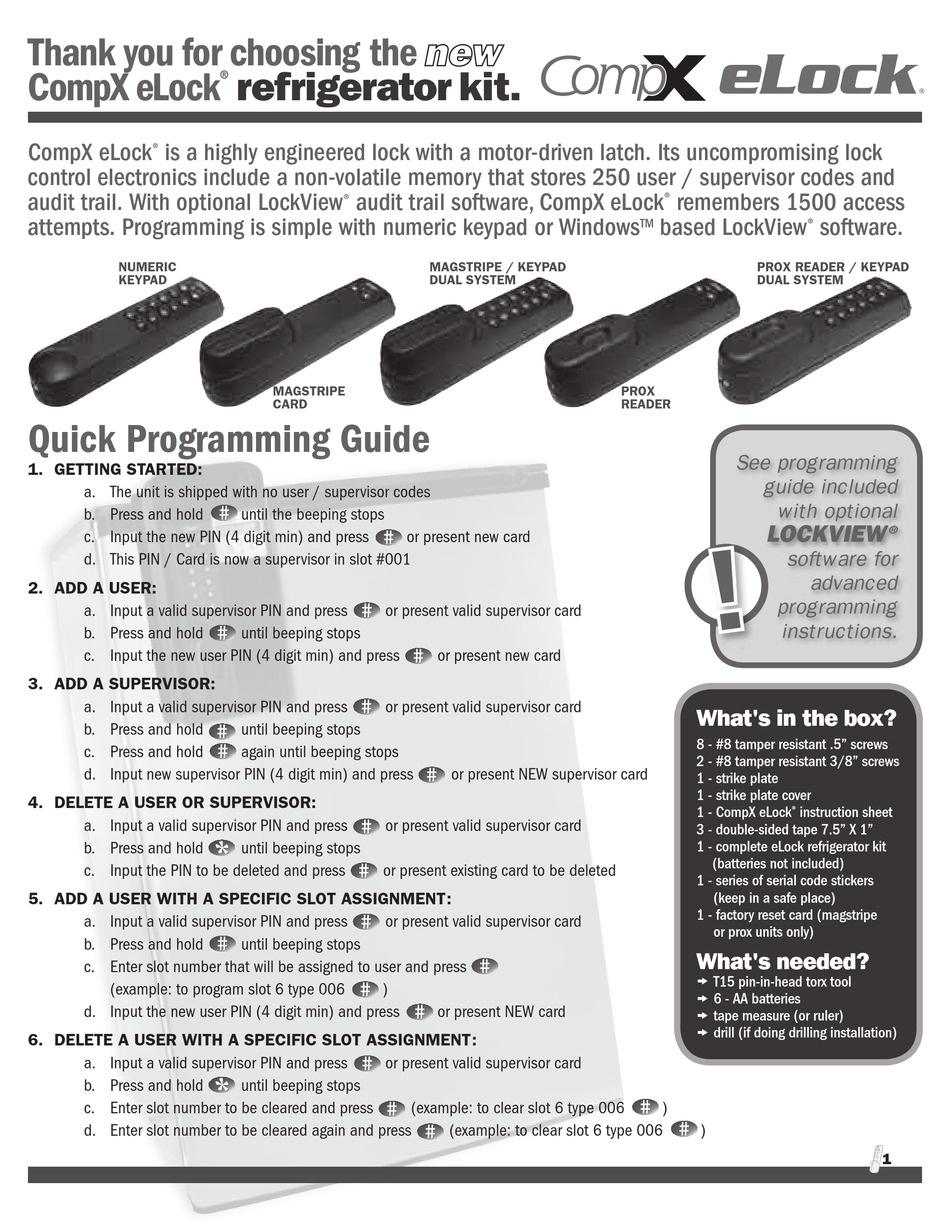

COMPX elock Quick Programming Manual

Thank you for choosing the
CompX eLock
CompX eLock is a highly engineered lock with a motor-driven latch. Its uncompromising lock
®
control electronics include a non-volatile memory that stores 250 user / supervisor codes and
audit trail. With optional LockView
attempts. Programming is simple with numeric keypad or Windows
NUMeric
keyPaD
Quick Programming Guide
1. gettiNg StarteD:
a. The unit is shipped with no user / supervisor codes
b. Press and hold
c. Input the new PIN (4 digit min) and press
d. This PIN / Card is now a supervisor in slot #001
2. aDD a USer:
a. Input a valid supervisor PIN and press
b. Press and hold
c. Input the new user PIN (4 digit min) and press
3. aDD a SUPerViSor:
a. Input a valid supervisor PIN and press
b. Press and hold
c. Press and hold
d. Input new supervisor PIN (4 digit min) and press
4. DeLete a USer or SUPerViSor:
a. Input a valid supervisor PIN and press
b. Press and hold
c. Input the PIN to be deleted and press
5. aDD a USer witH a SPecific SLot aSSigNMeNt:
a. Input a valid supervisor PIN and press
b. Press and hold
c. Enter slot number that will be assigned to user and press
(example: to program slot 6 type 006
d. Input the new user PIN (4 digit min) and press
6. DeLete a USer witH a SPecific SLot aSSigNMeNt:
a. Input a valid supervisor PIN and press
b. Press and hold
c. Enter slot number to be cleared and press
d. Enter slot number to be cleared again and press
refrigerator kit.
®
audit trail software, CompX eLock
®
MagStriPe
carD
until the beeping stops
or present valid supervisor card
until beeping stops
or present valid supervisor card
until beeping stops
again until beeping stops
or present valid supervisor card
until beeping stops
or present existing card to be deleted
or present valid supervisor card
until beeping stops
)
or present valid supervisor card
until beeping stops

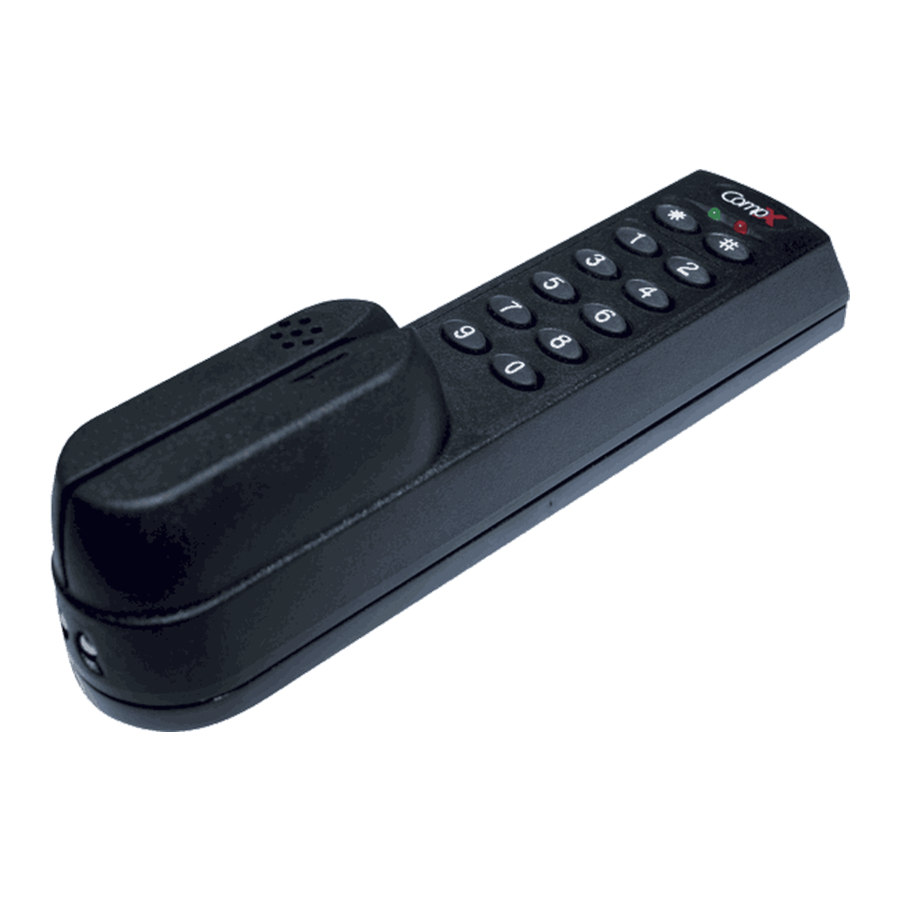

MagStriPe / keyPaD
DUaL SySteM
or present new card
or present new card
or present NEW supervisor card
or present NEW card
(example: to clear slot 6 type 006
(example: to clear slot 6 type 006
remembers 1500 access
®
based LockView
TM
Prox reaDer / keyPaD
DUaL SySteM
Prox
reaDer
See programming
guide included
with optional
LOckViEw
software for
programming
instructions.
What's in the box?
8 - #8 tamper resistant .5" screws
2 - #8 tamper resistant 3/8" screws
1 - strike plate
1 - strike plate cover
1 - CompX eLock instruction sheet
®
3 - double-sided tape 7.5" X 1"
1 - complete eLock refrigerator kit
(batteries not included)
1 - series of serial code stickers
(keep in a safe place)
1 - factory reset card (magstripe
or prox units only)
What's needed?
T15 pin-in-head torx tool
k
6 - AA batteries
k
tape measure (or ruler)
k
drill (if doing drilling installation)
k
)
)
software.
®
®
advanced
1
