Page 1: Lithium Battery

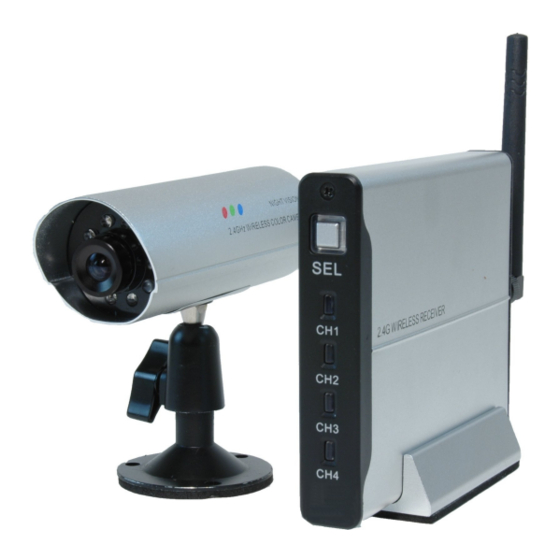

2.4 GHz Wireless Color Video System with Rechargeable Lithium Battery Instruction Manual English Version 1.0 MODEL: SG8840 www.lorexcctv.com Copyright (c) 2006 LOREX Technology Inc. -
Page 2: Wireless Disclaimer
Turn your TV into a Wireless Security System with the Lorex 2.4 GHz Wireless Color The SG8840 system has an Integrated Rechargeable Lithium battery allowing for increased portability with up to 5 hours of battery life. Instant protection of your home or office with easy installation and operation. -
Page 3: Important Safeguards
Important Safeguards In addition to the careful attention devoted to quality standards in the manufacture process of your video product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help to assure your enjoyment and proper use of the video product and accessory equipment. - Page 4 Important Safeguards Service 13. Servicing - Do not attempt to service this video equipment yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 14. Conditions Requiring Service - Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions.
-
Page 5: General Precautions
4. Keep enough space around the unit for ventilation. Slots and openings in the storage cabinet should not be blocked 5. During lightning storms, or when the unit is not used for a long time, disconnect the power supply, antenna, and cables to protect the unit from electrical surge LOREX TECHNOLOGY INC. http://www.lorexcctv.com General Precautions... -
Page 6: Camera Features
Camera Features Camera Features • Turns your TV into a Video Security System • Install and Operate in less than 1 minute • Flexible - move camera from room to room • Integrated rechargeable Lithium battery powers the camera for up to 5 hours •... -
Page 7: Table Of Contents
Installation ... iii Service and Use ... iv General Precautions ...v Camera Features ... vi SG8840 - Getting Started - Package Contents ... 9 SG8840 - Camera Features ... 10 SG8840 - Receiver Features ... 11 Camera Setup ... 12 Wireless Receiver Setup ... -
Page 8: Sg8840 Getting Started - Package Contents
SG8840 Getting Started - Package Contents SG8840 Getting Started - Package Contents The SG8840 system comes with the following components: 2.4GHz Wireless Color Camera Wireless Receiver Wireless Receiver with Adjustable Stand Antenna Wireless Receiver AV Cable Stand Power Adapter for 2.4 GHz... -
Page 9: Sg8840 - Camera Features
SG8840 - Camera Features SG8840 - Camera Features The SG8840 Camera is a wireless device which allows you to choose from 4 channels for optimum clear reception LENS: CMOS imaging sensor with 510x492 total pixels. INFRARED LED: Provides illumination in low light conditions up to a range of 12 ft.. -
Page 10: Sg8840 - Receiver Features
SG8840 - Receiver Features The SG8840 Wireless Receiver is a device which allows you to receive data from a selection of 4 channels for optimum clear reception ANTENNA: Receiving antenna for wireless transmission CHANNEL SELECT: Channel selection button. Press to change between CH1 - CH4 Note: The Channel selection must be set to correspond between the camera and receiver. -
Page 11: Camera Setup
Camera Setup Camera Setup 1. Adjust the camera height and position using the angle adjustment thumbscrew on the base. The camera can be permanently attached to a surface using the provided screws (3 attachment screws), or it can simply be placed to stand on any flat surface. -
Page 12: Wireless Receiver Setup
Wireless Receiver Setup 1. Mount the WIRELESS RECEIVER on the STAND. 2. Connect the ANTENNA to the WIRELESS RECEIVER. 3. Connect the 8V power supply adapter to the Receiver, and connect to a wall outlet. NOTE: Confirm that the power supply is labelled as the ‘Receiver Power Adapter’... -
Page 13: Viewing The Camera
Viewing the Camera Viewing the Camera Video can be viewed immediately (with the AC Adapter connected to the Wireless Camera), however if portable use is desired, the camera Lithium Battery must be charged for 2 hours. 1. Power up the Receiver and the Camera. 2. -
Page 14: Troubleshooting
• Possible interference with other wireless devices - try a different channel Problem: Image is in black and white, but the sound is normal Solution: • The Hardware is incompatible with your existing Monitor / TV. Try the SG8840 on a different TV/Monitor Troubleshooting... -
Page 15: Camera Specifications - Appendix #1
Camera Specifications - Appendix #1 Camera Specifications - Appendix #1 Imaging Sensor CMOS Total Pixels View Angle Minimum Illumination Transmission Frequency Transmission Power Modulation Type Bandwidth Power Supply Battery Type / Capacity Charge Time Working Time Unobstructed Effective Range Night Vision Range Camera Dimensions (W x D x H) Stand Dimensions... -
Page 16: Wireless Receiver Specifications - Appendix #2
** Maximum open space transmission range. Actual range dependent upon building materials and other obstructions in path of wireless signal. As our products are subject to continuous improvement, LOREX Technology Inc. and its subsidiaries reserve the right to modify product design, specifications and prices, without notice... - Page 17 It’s all on the web Product Information User Manuals Quick Start Guides VISIT www.lorexcctv.com LOREX Technology Inc. Specification Sheets Software Upgrades Firmware Upgrades wwwlorexcctv.com...
