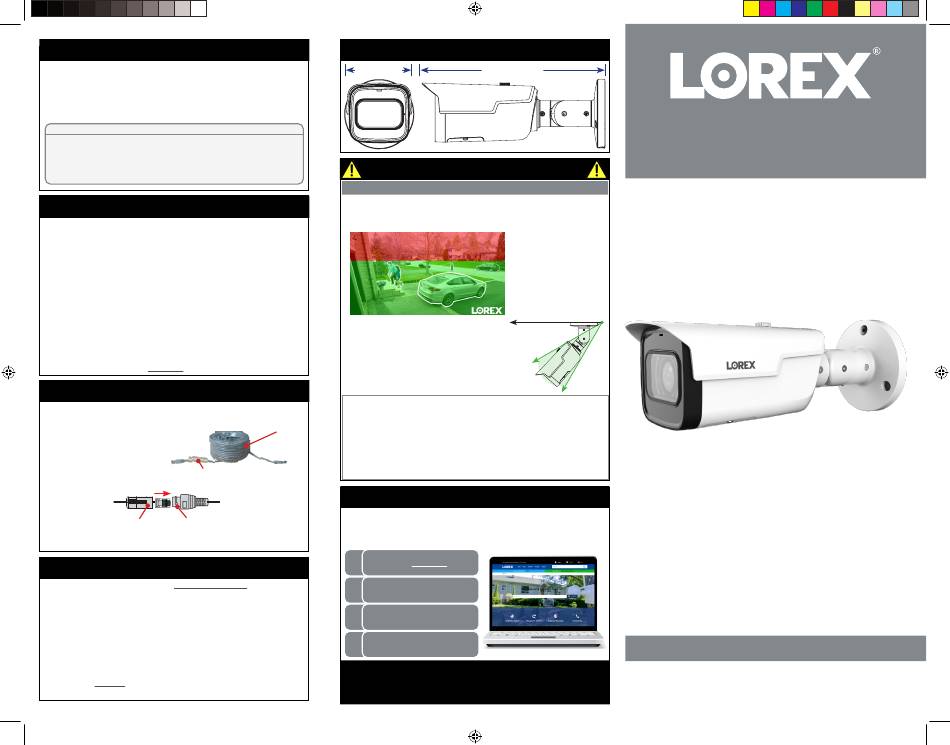

Package Contents
• 4K Motorized Varifocal Bullet Camera with Smart Motion Detection
• Mounting Kit*
• Mounting Template*
• Ethernet Extension Cable with Pre-attached RJ45 Cable Gland*
• Allen Key*
* Per camera in multi-camera packs.
ATTENTION:
It is recommended to connect the camera to the NVR or an external PoE
switch. If using a DC power adapter (not included) with the camera, a
REGULATED power supply is REQUIRED for use with this camera. Use of a
non-regulated, non-conforming power supply can damage this product and
voids the warranty.
Safety Precautions
• Use the camera only with compatible Lorex NVRs.
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity and voltage levels
noted in the camera's specifications.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of
intense light.
• Use only a regulated power supply with the product (optional). Use of a
non-regulated, non-conforming power supply can damage the product
and void the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use any
harsh, chemical-based cleaners.
• The supplied cable is rated for surface mounting only. Cables for in-wall
and floor-to-floor installations are sold separately (CMR type). These and
other cables are available at lorex.com.
Using the RJ45 Cable Gland (Optional)
The RJ45 cable gland covers the camera's Ethernet connector and the RJ45 plug to
provide weather-resistance and protection from dust, dirt and other environmental
contaminants.
The RJ45 cable gland is pre-attached to the
included Ethernet extension cable.
RJ45 Cable Gland
To use the RJ45 cable gland:
Twist the RJ45 cable gland barrel securely onto the camera Ethernet connector.
RJ45 Cable Gland Barrel
Camera Ethernet Connector
NOTE: The RJ45 cable gland is weather-resistant. Seal the cap with silicone and/or
electrical tape for additional sealing if it will be exposed to precipitation regularly.
Disclaimers
• For a full list of compatible recorders, visit lorex.com/compatibility.
• Not intended for submersion in water. Installation in a sheltered location
recommended.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes
between Day/Night viewing modes, an audible clicking noise may be heard from the
camera. This clicking is normal, and indicates that the camera filter is working.
• For optimal remote viewing from your recorder, an upload speed of 256kbps per
camera is required (default setting). For example, your Internet service package
must support 2Mbps or greater upload speed for 8 cameras, 4Mbps or greater for 16
cameras, and 8Mbps or greater for 32 cameras (your Internet service provider can
confirm your upload speed). You may lower the resolution and bitrate of camera video
streams to further boost performance for slower Internet connections. See your NVR's
user manual at
lorex.com
for full instructions (see "Configuring Recording Quality"
section).
LNB9292_QSG_EN_R2.indd 1
LNB9292_QSG_EN_R2.indd 1
Dimensions
3.6" / 91mm
Important Installation Guidelines
Optimizing Person and Vehicle Detection Accuracy:
• Angle the camera so that objects of interest appear in the bottom ⅔ of the camera
image.
• Choose a location where objects of interest will be no further than 50ft (~15m) from
the camera.
• Angle the camera between 30~60° down from the
level position.
• Install the camera between 8-16ft (2.5-5m) off of
the ground.
NOTE:
Accuracy of person and vehicle detection will
be influenced by multiple factors, such as the object's
distance from the camera, the size of the object, and
the height and angle of the camera. Night vision will
also impact the accuracy of detection.
Additional Installation Tips:
• Point the camera where there is the least amount of obstructions (e.g., tree branches).
• Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or easily cut.
Ethernet
• This camera is rated for outdoor use. Installation in a sheltered location is
Extension
recommended.
Cable
• Smart motion detection is enabled by default. When enabled, the camera's recording
frame rate is 20 frames per second.
• To obtain the maximum 30 frames per second, smart motion detection must be
disabled.
Need Help?
Visit us online for up-to-date software
and complete instruction manuals
1
Visit lorex.com
Search for the model
2
number of your product
Click on your product
3
in the search results
4
Click on the Downloads tab
Copyright © 2020 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to
modify product design, specifications and prices, without notice and without incurring
any obligation. E&OE. All rights reserved.
9.5" / 242mm
4K Motorized Varifocal Bullet Camera
Quick Start Guide
English Version 2.0
Lower accuracy for objects
further away than 50ft (~15m)
and/or in the top
of the image.
⅓
Optimal accuracy for objects
within 50ft (~15m) and in the
bottom
⅔ of the image.
Level position (i.e., ceiling)
Optimal
angle
range
LNB9292_QSG_EN_R2
with Smart Motion Detection
LNB9292 SERIES
lorex.com
2020-10-28 7:11:23 PM
2020-10-28 7:11:23 PM
