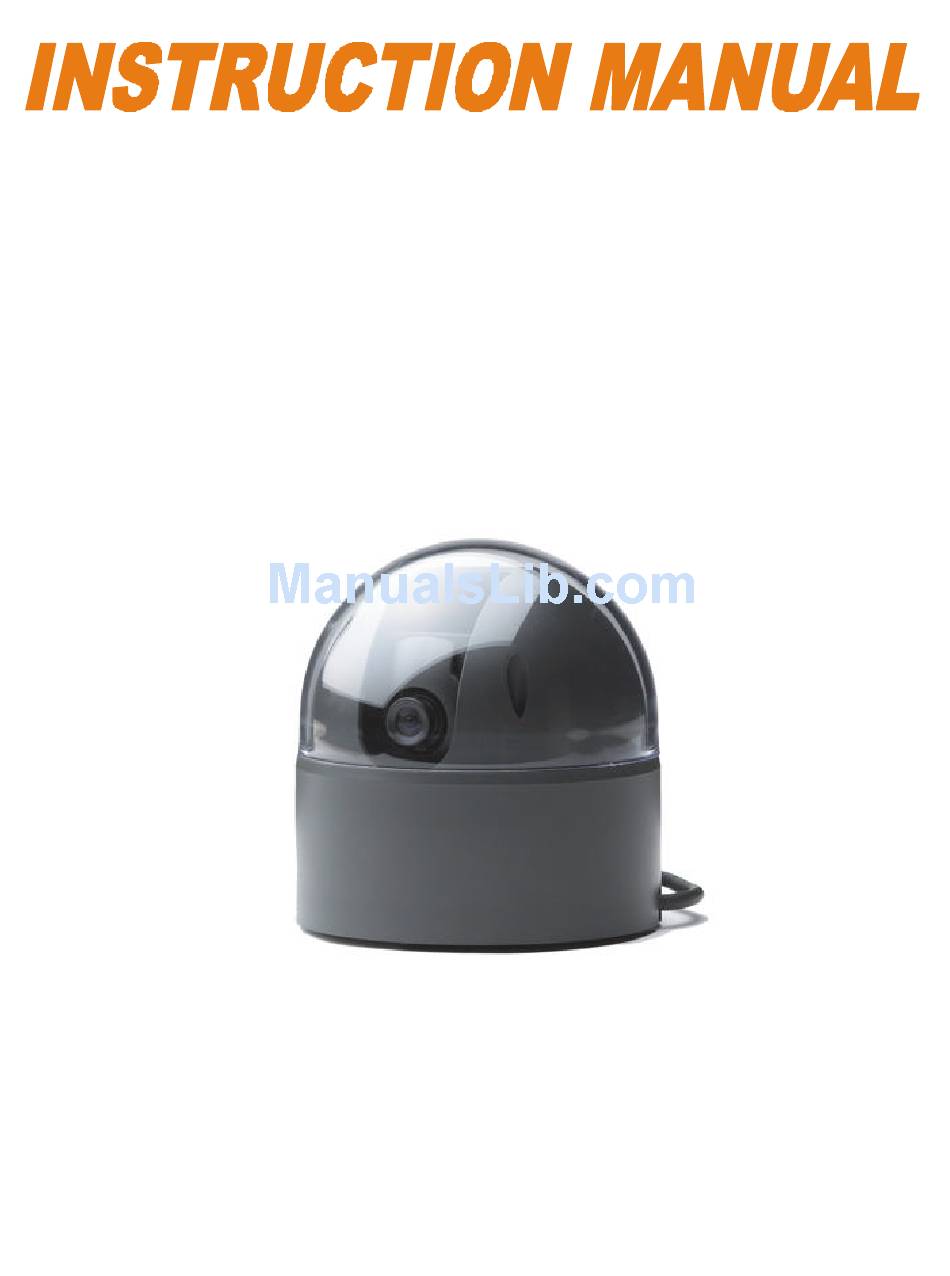

Page 1: Dome Camera
1/3” CCD Color Pan / Tilt Dome Camera With 3X Digital Zoom SG7380 FOR MORE INFORMATION WWW.STRATEGICVISTA.COM BEFORE OPERATING THIS SYSTEM, PLEASE READ THIS MANUAL THROUGHLY AND RETAIN IT FOR FUTURE REFERENCE... - Page 2 Thank you for purchasing the SG7380 indoor, mini color dome camera incorporating Pan/Tilt control, as well as a 3x Digital Zoom function. LOREX is committed to providing our customers with a high quality, reliable security product that customers have come to expect from us.
-
Page 3: Table Of Contents
CONTENTS: GENERAL PRECAUTIONS ----------------------------------------------------------------------- FEATURES -------------------------------------------------------------------------------------------- SYSTEM CONTENTS ------------------------------------------------------------------------------ CAMERA COMPONENTS ------------------------------------------------------------------------ INSTALLATION ------------------------------------------------------------------------------------- OPERATION ---------------------------------------------------------------------------------------- TECHNICAL SPECIFICATIONS ----------------------------------------------------------------... -
Page 4: General Precautions
During flashes of lightning or cracks of thunder, or when the system is not used for a long time, unplug the system power supply to protect the unit from lightening or power surges FEATURES: • Compatible with select Lorex, Sylvania and Home Sentinel Observation Systems and DVR’s • High Resolution Color CCD camera •... -
Page 5: System Contents
SYSTEM INCLUDES: MINI COLOR PAN/TILT DOME CAMERA 1 - 65 FT CABLE OWNER’S MANUAL MOUNTING BRACKET CHECK YOUR PACKAGE TO MAKE SURE THAT YOU RECEIVED THE COMPLETE CAMERA SYSTEM, INCLUDING THE COMPONENTS SHOWN ABOVE... -
Page 6: Camera Components
CAMERA COMPONENTS MINI 6 PIN DIN JACK VIEW ( AT CAMERA ) Video Input Audio Out N.C. ( Not Connected ) B+ 12V ( Power ) Audio Input Camera Audio AMP: B+ 12V ( Power ) G)Ground ( Metal outer case ) -
Page 7: Installation
Typical Configuration showing a dome camera connected to an Obse rvation System: Monitor Camera 1 input OPERATION: To access and operate the Pan/Tilt Zoom feature please refer to the manual for the Lorex, Sylvania, or Home Sentinel Observation System or DVR that you purchased Dome Camera... -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS: Image Sensor Effective Pixels Scanning System Scanning Frequency Horizontal Resolution Lens Shutter Speed S/N Ratio Digital Zoom Ratio Pan/Tilt speed Pan/Tilt Travel Minimum Illumination Video Output Power Supply Operating Temperature Operating Humidity Dimensions Because our product are subject to continuous improvement, SVC reserves the right to modify product design and specifications without notice and without incurring any obligation.
