Lorex SG4933R Owner's Manual

CAMERA
METAL MOUNTING
BRACKET
1. Mount the camera to ceiling or other desired mounting surface
2. Connect the 65 ft video extension cable to the camera end marked 'Video'
3. Connect the 65ft power extension cable to the camera end marked '+12V'
4. Run the 65 ft extension cable and power extension cable to the television (or VCR)
which you will use for viewing camera location
5. Attach one end of the supplied RCA/RCA connector to the extension cable,
the other end to the television (or VCR)
6. Connect the supplied 12Volt AC power supply to the power extension cable
7. Turn your television (or VCR) to auxiliary (AUX) or video mode to view
camera
8. Adjust the camera to the desired angle for viewing the camera

Connecting Camera to a LOREX Observation System

1. Mount the camera to ceiling or other desired mounting surface
2. Connect the 65 ft video extension cable to the camera end marked 'Video'
3. Connect the 65ft power extension cable to the camera end marked '+12V'
4. Run the 65 ft video extension cable and power extension cable to the Lorex Monitor
5. Attach the RCA end of the RCA/6 pin coupler to the video extension cable, the other
end to one of the camera inputs at the back of the Lorex Monitor
6. Connect the supplied 12Volt AC power supply to the power extension cable
7. Turn your Lorex observation monitor on to view camera location
8. Adjust the camera to the desired angle for viewing the camera
MODEL SG4933R
1/4" CCD COLOR WEATHERPROOF BULLET CAMERA
VIDEO EXT. CABLE
12 V AC POWER RCA/RCA ADAPTER
SUPPLY
OWNERS MANUAL

Connecting Camera to a TV or VCR

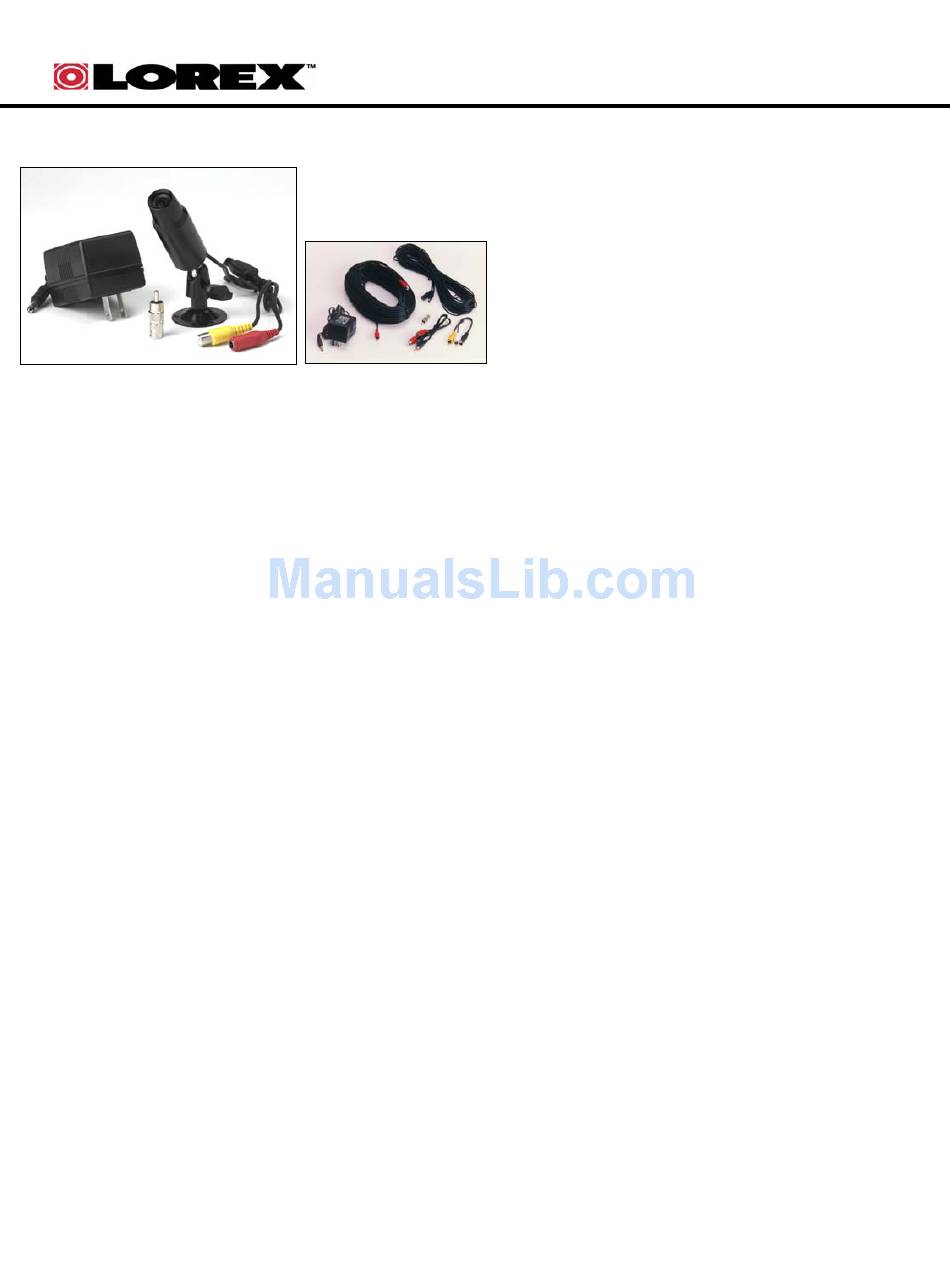

1 - Color Weatherproof Bullet
1 - Metal Mounting Bracket
1 - RCA/BNC Connector (used only
POWER EXT. CABLE
RCA/BNC CONNECTOR 1 - 12 V AC Power Supply
1 - 65 Ft Video Extension Cable
RCA/6 PIN COUPLER 1 - 65 Ft Power Extension Cable
1 - RCA/RCA Adapter
1 - RCA/6 Pin Coupler
1 - Owners Manual
1 - Warranty Card
THIS PACKAGE CONTAINS:
Camera with finished leads
when connecting camera to
a monitor with BNC ends)
