Lorex C861MB Series - Security Camera With Audio Quick Start Manual

Package Contents

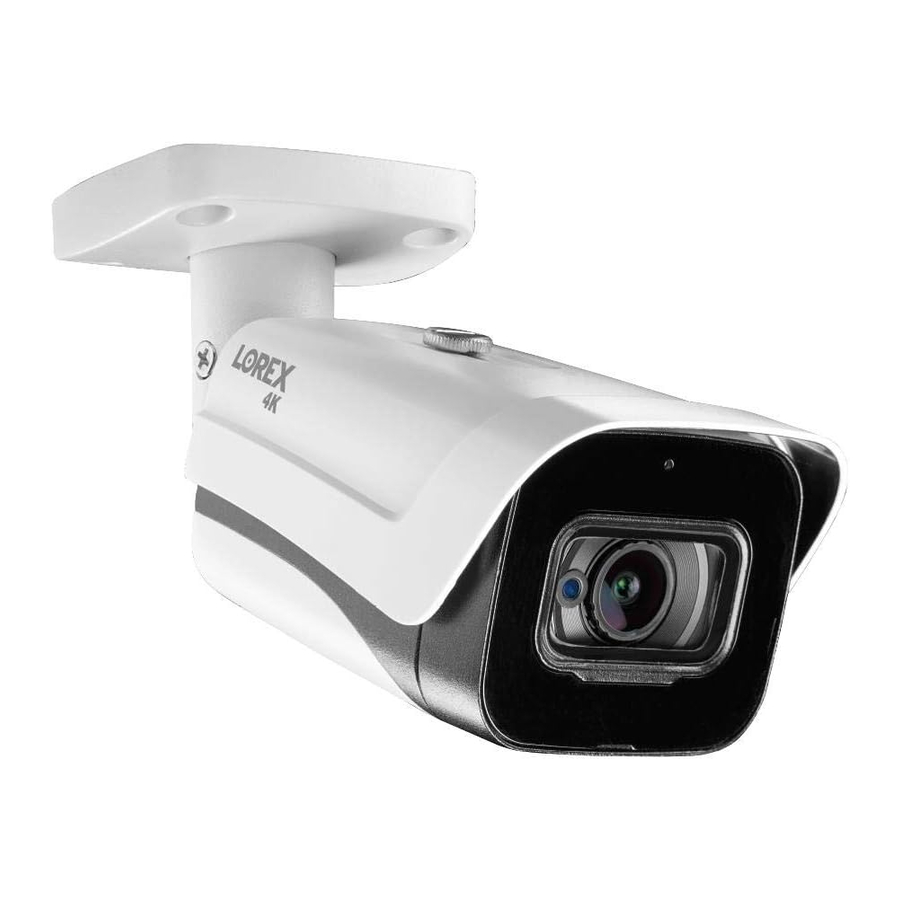

  • 4K ULTRA HD Security Camera with Audio
  • Mounting Kit*
  • BNC / Power Extension Cable*
  • Power Adapter**

* Per camera in multi-camera packs.
** A multi-camera power adapter that provides power to multiple cameras or individual power adapters may be provided depending on product configuration.

warningATTENTION:
A REGULATED UL / CSA APPROVED power supply is REQUIRED for use with this camera (included). Use of a non-regulated, non-conforming power supply can damage this product and voids the warranty.

Installation Tips

  • Point the camera where there is the least amount of obstructions (i.e., tree branches).
  • Install the camera where vandals cannot easily reach.
  • Secure cabling so that it is not exposed or easily cut.
  • This camera is rated for outdoor use. Installation in a sheltered location is recommended.

Installing the Camera

warningATTENTION:
Test your camera prior to selecting a permanent mounting location by temporarily connecting the camera and cable to your DVR.

Before Installing the Camera

  • Decide whether to run the cables through the wall / ceiling (drilling required) or along the wall / ceiling.
  • If you run the cables along the wall / ceiling, you must run the cable through the cable notch on the base. This will keep the camera base flush to the surface when mounted.

To install your camera:

  1. Set the camera in the desired mounting position and mark holes for screws through the camera base.
  2. Drill the holes, then feed the cable through the mounting surface or cable notch.
    NOTE: Insert the included drywall anchors if you are mounting the camera onto drywall.
  3. Mount the camera stand to the mounting surface using the provided screws. Make sure all screws are fastened tightly.
  4. Adjust the camera as shown below:
    1. ROTATING THE ARM: Rotate the arm until you hear an audible click. Each rotation or click locks the arm into that position. The arm of the camera can be rotated up to 360°.
    2. BENDING THE ARM AND LEVELING THE CAMERA: Use a Phillips head screwdriver (not included) to loosen the adjustment screw. Bend the arm of the camera up to 90°, and rotate the camera until it is level with the viewing area, then tighten the screw.
  5. Remove the vinyl film from the camera lens when your installation is complete.

Connecting the Camera

Connecting the Camera

Camera

Connect the male power head and the BNC connector to the camera.

DVR
Connect the BNC connector to a video input on your DVR.

Connect the female power head to the included power adapter.

Power Adapter Types

A multi-camera power adapter that provides power to multiple cameras or individual power adapters may be provided, depending on product configuration.

Individual Power Adapter*

Multi-Camera Power Adapter*

* Images for representation only.

Setup Diagram

Setup Diagram

Cable Extension Options

Extend the cable run for your camera depending on the cable type used. Additional extension cables sold separately. See table below:

Option Model Number Cable Length
1 CB120URB1A 120ft (37m)
2 CB250URB1A 250ft (76m)

Notes:

  1. The extension cable must be a single stretch of cable between the DVR and camera. You cannot connect multiple extension cables to each other.
  2. Indicators that your cable run may be too long:
    • Camera loses video when switching to night vision.
    • Video is permanently black & white (even during day time).
    • Video is unclear, soft, or distorted.
  3. For more information on extension cables, visit lorex.com.

Troubleshooting

Problem Solution

No picture / signal

  • Ensure that you have set the DVR to 4K output resolution. See your recorder's documentation for full instructions.
  • The cameras are only compatible with certain Lorex HD DVRs. For the full list of compatible recorders, visit lorex.com/compatibility.
  • Ensure your TV or monitor is on the correct input channel. Common terms for input channels: INPUT, AV CHANNEL, LINE1, LINE2, AUX.
  • Ensure your DVR is properly connected to your TV or monitor.
  • Ensure connections are properly connected.
  • Ensure the camera power supply is plugged in.

Picture is too bright

  • Ensure your camera isn't pointed directly at a source of light (e.g., sun or spot light).
  • Check the brightness settings of the DVR and monitor.
  • Move your camera to a different location.

Picture is too dark

  • Check the brightness and contrast settings of the DVR and monitor.

Night vision is not working

  • The night vision activates when light levels drop. The area may have too much light.

Picture is not clear

  • Check the camera lens for dirt, dust, spiderwebs. Clean the lens with a soft, clean cloth.
  • Make sure that the cable run is within the limitations specified in the section 'Cable Extension Options'.
  • Remove the vinyl film from the camera lens when your installation is complete.

Bright spot in video when viewing camera at night

  • Night vision reflects when pointing a camera through a window. Move the camera to a different location.

No audio

  • Audio is only supported on Lorex HD DVRs. For a list of compatible recorders, visit lorex.com/compatibility.
  • Audio is disabled by default. For full instructions on enabling camera's audio, see your recorder's documentation on lorex.com.
  • Ensure DVR volume is turned on / turned up.
  • Ensure audio is turned up on viewing device.
  • Ensure that your monitor has built-in speakers. Otherwise, use the RCA output on your DVR to connect external speakers.

Resources

Need Help?
Visit us online for up-to-date software and complete instruction manuals

  1. Visit lorex.com
  2. Search for the model number of your product
  3. Click on your product in the search results
  4. Click on the Downloads tab

Dimensions

Dimensions

Safety Precautions

  • Read this guide carefully and keep it for future reference.
  • Follow all instructions for safe use of the product and handle with care.
  • Use the camera within given temperature, humidity and voltage levels noted in the camera's specifications.
  • Do not disassemble the camera.
  • Do not point the camera directly towards the sun or a source of intense light.
  • Use only the supplied regulated power supply provided with the product. Use of any other power supply can damage the product and void the warranty.
  • Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh, chemical-based cleaners.
  • The supplied cable is rated for surface and in-wall mounting only.
    Cables for floor-to-floor installations are sold separately (CMR type). These and other cables are available at lorex.com.
