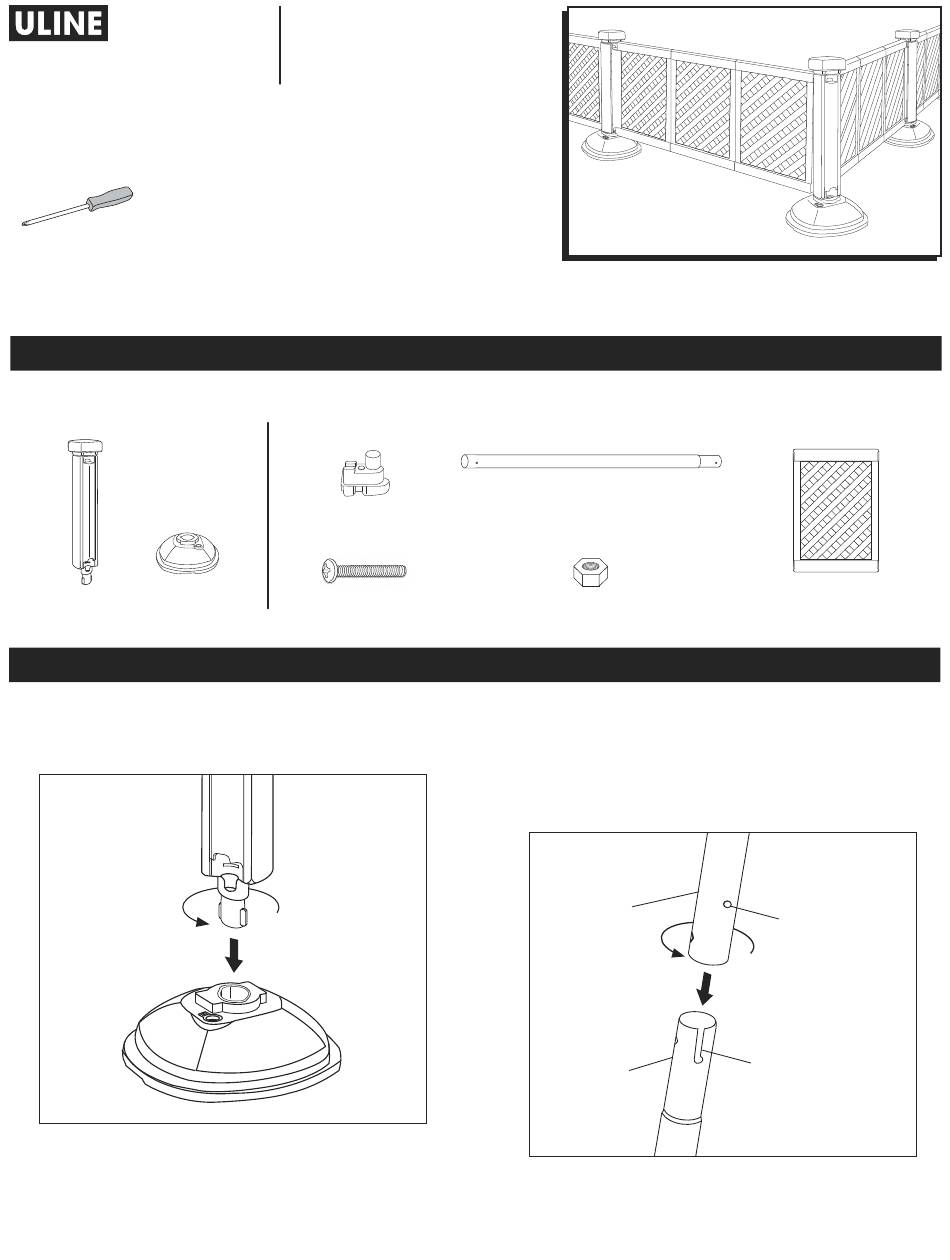

H-5181, H-5182
H-5183
PATIO FENCE
TOOL NEEDED
Phillips
Screwdriver
For H-5181 only:
Post x 1
Base x 1
1.
Insert each post into base and rotate 90º into
locking position. (See Figure 1)
Figure 1
PAGE 1 OF 3
1-800-295-5510
uline.com
PARTS
For H-5182 and H-5183 only:
Connector x 2
Bolt x 2
INSTALLATION
90º
Tube
(H-5182 x 2)
(H-5183 x 4)
Nut x 2
2. Assemble aluminum tubes. Ensure they are fully
inserted and locked together using the groove and
small punched guide on matching tubes. Ensure
bolt holes at both ends of tube assembly are in
same direction. (See Figure 2)
Figure 2
Female
End
Male
End
Panel
(H-5182 x 2)
(H-5183 x 3)
Small Punched
Guide
Groove
1220 IH-5181
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-5181
Summary of Contents for U-Line H-5181
- Page 1 H-5181, H-5182 1-800-295-5510 H-5183 uline.com PATIO FENCE TOOL NEEDED Phillips Screwdriver PARTS For H-5181 only: For H-5182 and H-5183 only: Tube Connector x 2 (H-5182 x 2) (H-5183 x 4) Panel Post x 1 Base x 1 Bolt x 2...
- Page 2 INSTALLATION CONTINUED 3. Insert and slide aluminum tubes through top and 5. Insert bottom plastic connector pegs into the holes bottom holes of panels. Center panel onto tubes. of the bases and position top plastic connectors into Nut holes should face up. (See Figures 3-4) posts.
- Page 3 INSTALLATION CONTINUED 8. Insert post caps onto posts and rotate 90º into 9. Slide and angle fence into desired position. locked position. (See Figure 9) (See Figure 10) Figure 9 Figure 10 Configuration Examples Completed Assembly 1-800-295-5510 uline.com PAGE 3 OF 3 1220 IH-5181...
